Home >> Saturn >> 2007 >> Sky L4-2.0L Turbo >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Radiator >> Service and Repair >> Radiator Air Baffle and Deflector Replacement - Upper

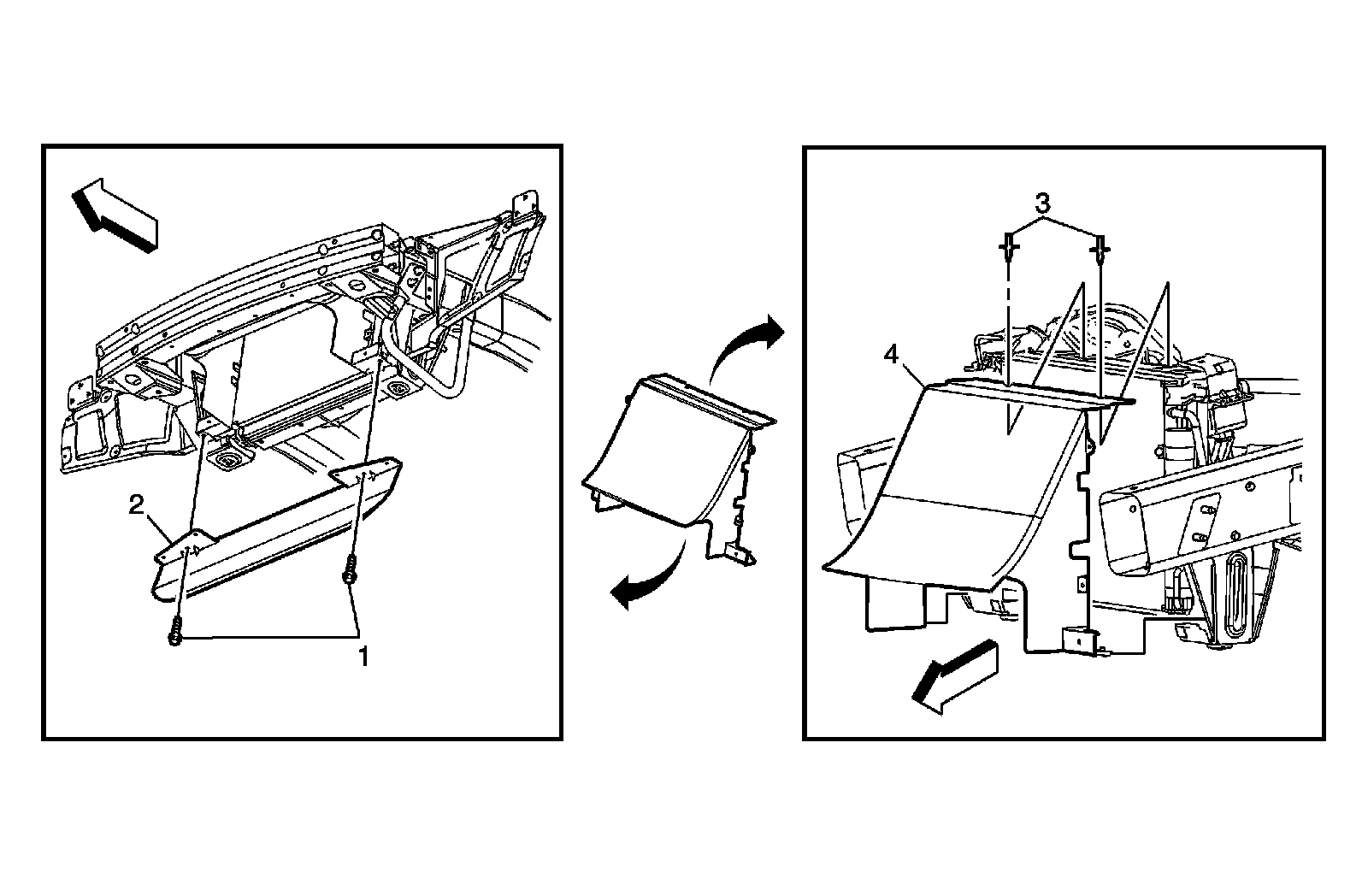

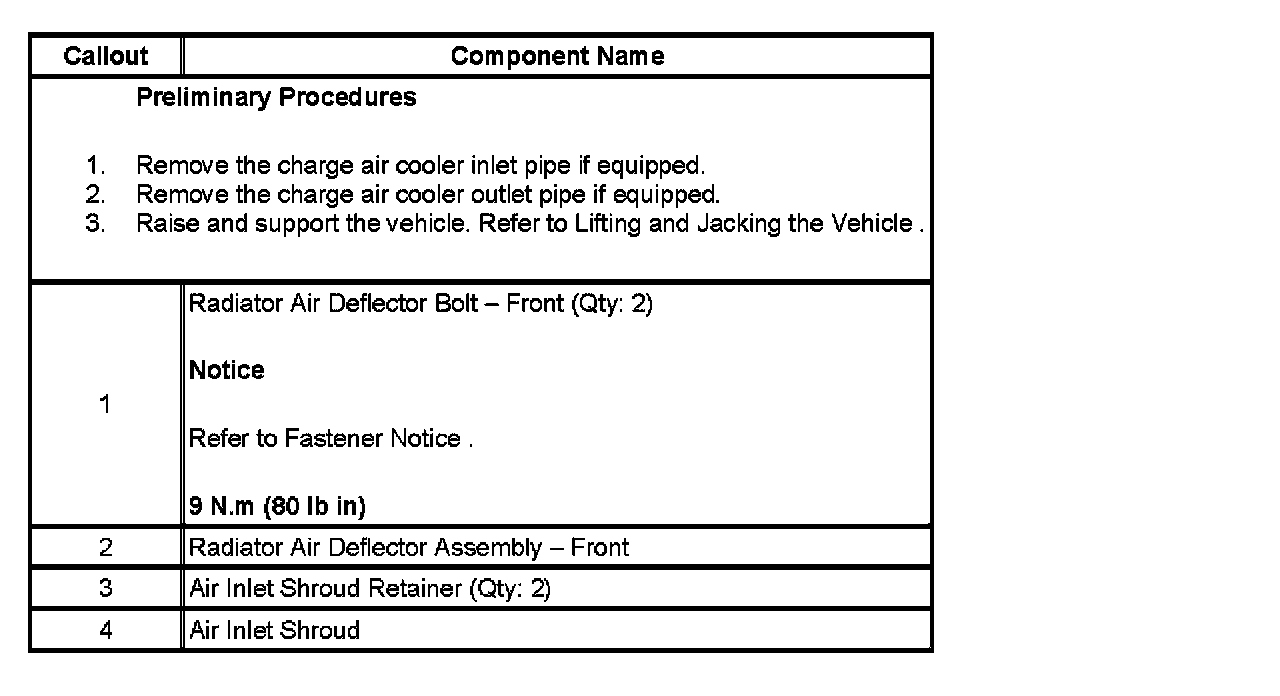

Radiator Air Baffle and Deflector Replacement - Upper



Radiator Air Upper Baffle and Deflector Replacement
