Home >> Saturn >> 2007 >> Sky L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Switch

Traction Control Switch

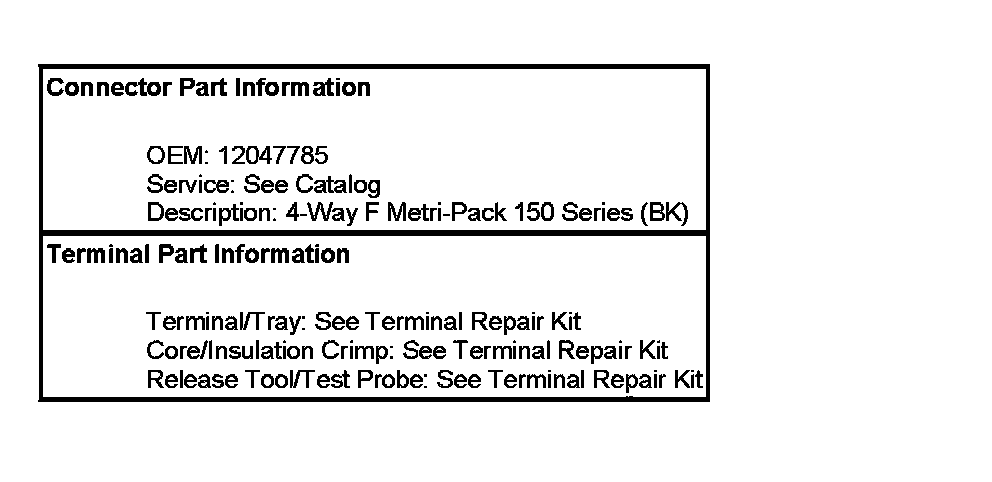

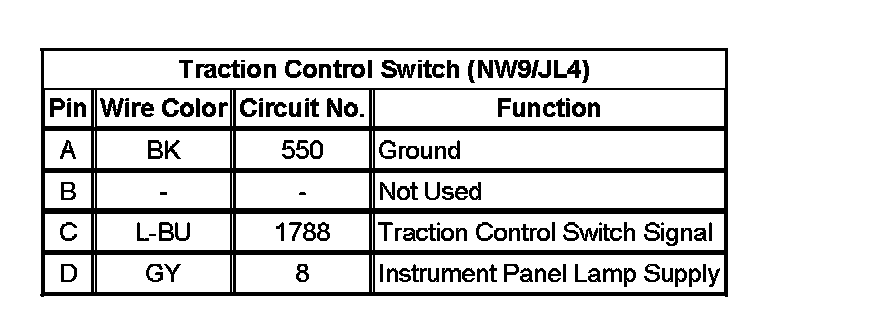

Traction Control Switch (NW9/JL4)







Traction Control Switch (NW9/JL4):
