Home >> Saturn >> 2007 >> Sky L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Angle Sensor, Traction Control

Steering Angle Sensor, Traction Control

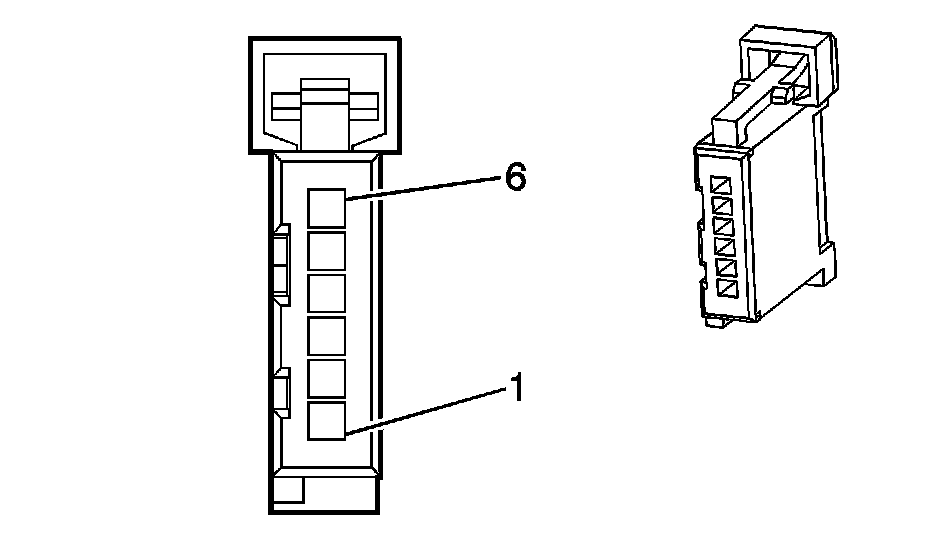

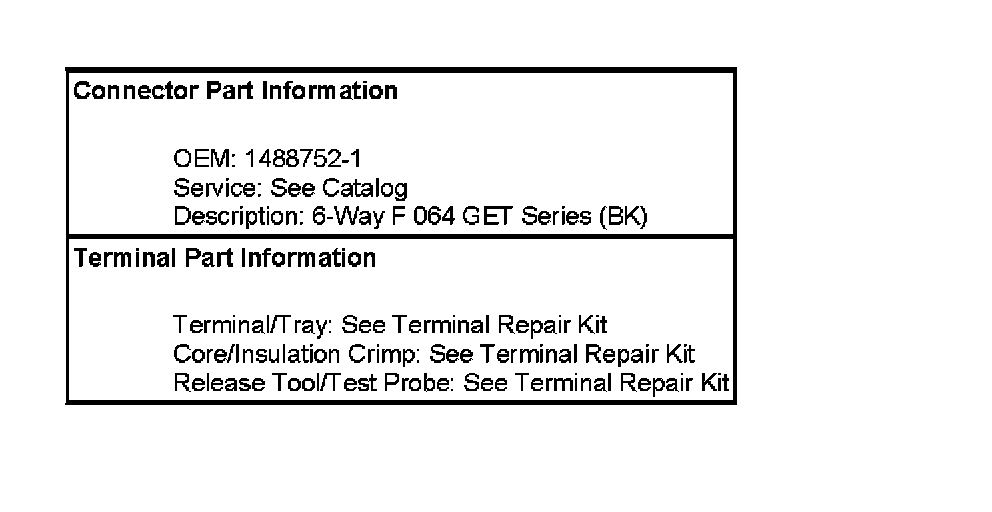

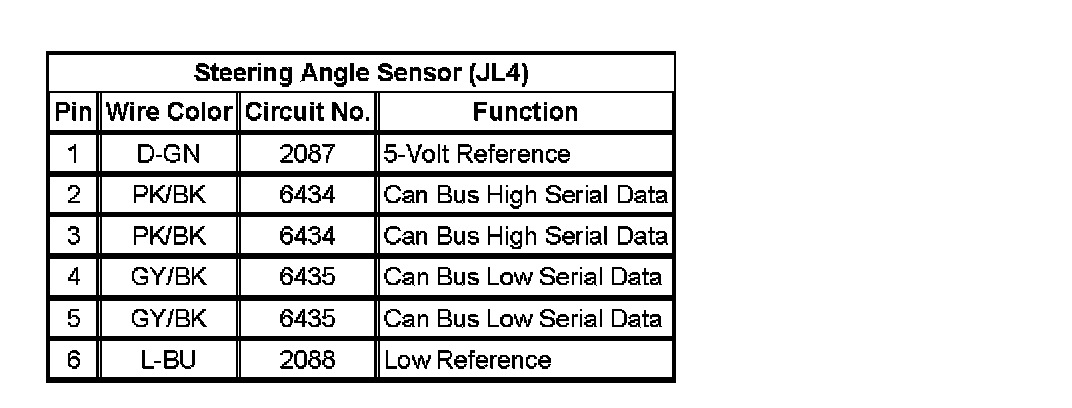

Steering Angle Sensor (JL4)







Steering Angle Sensor (JL4):
