Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

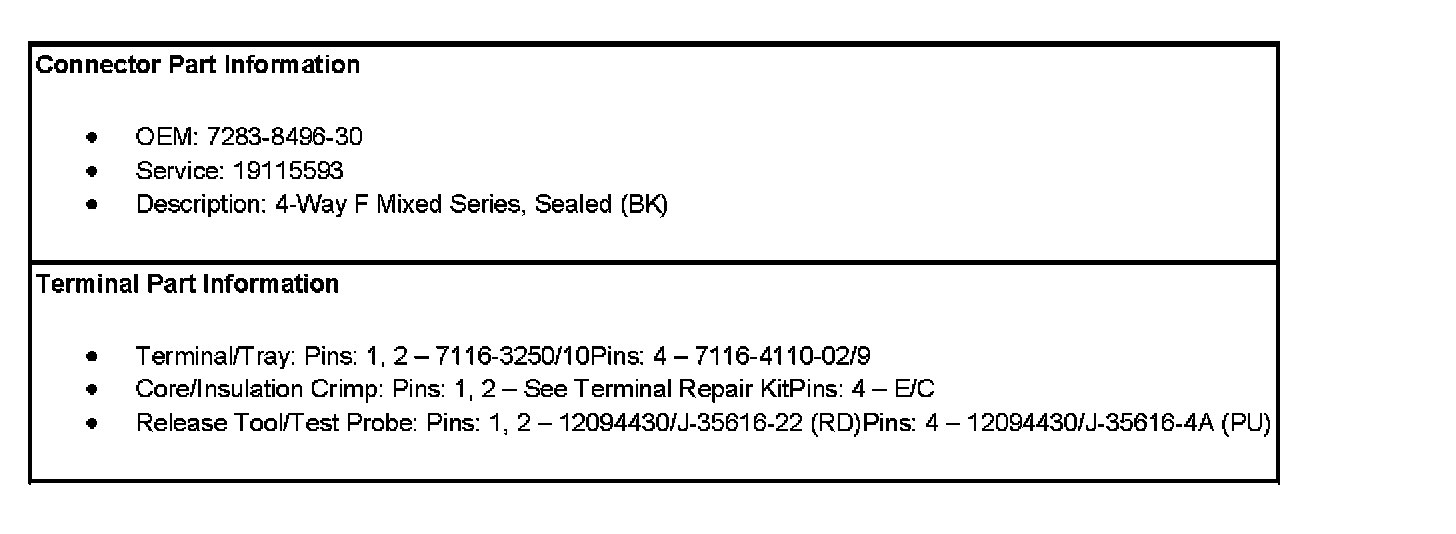

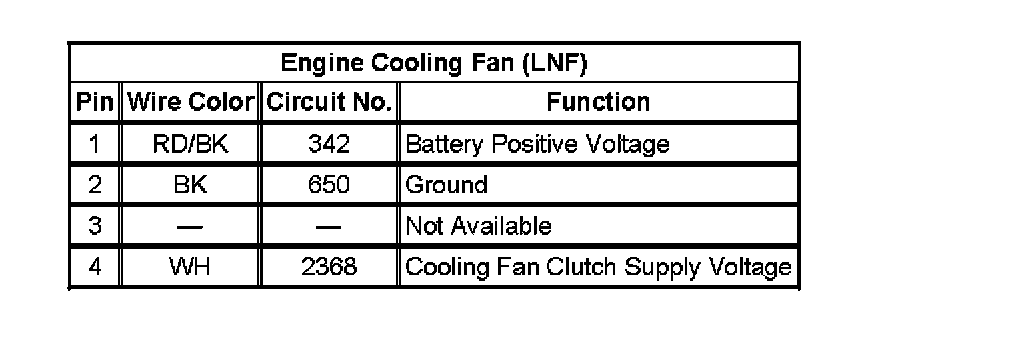

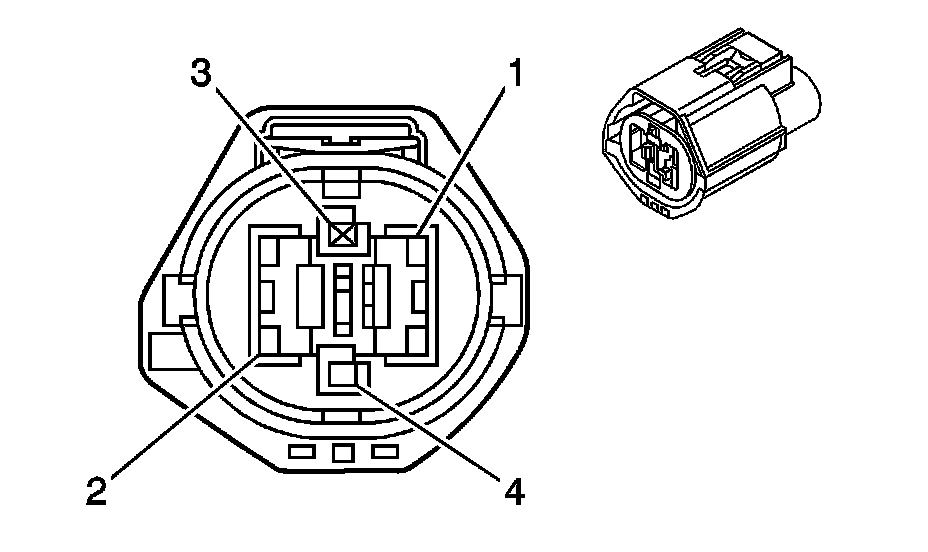

Engine Cooling Fan (LNF)
Engine Cooling Fan (LNF):
