Home >> Saturn >> 2007 >> Sky L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

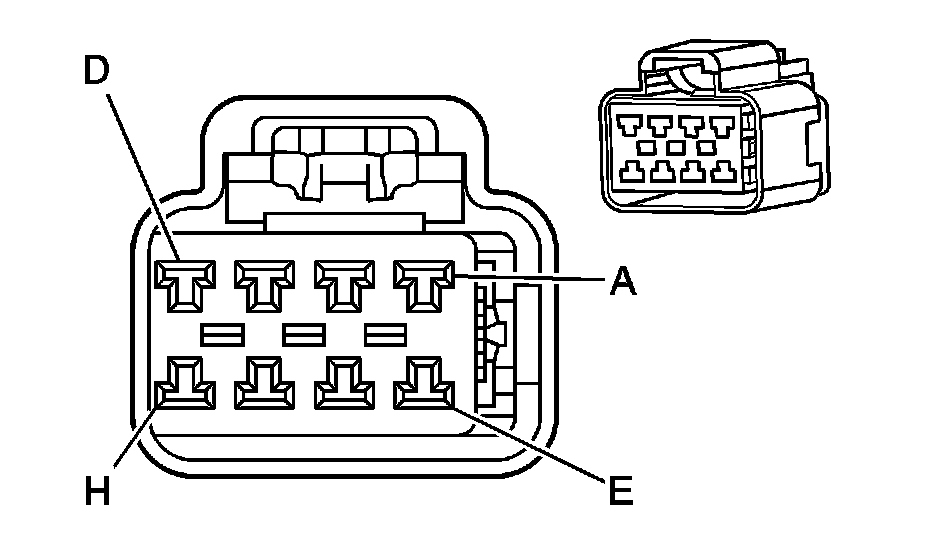

Window Systems Connector End Views

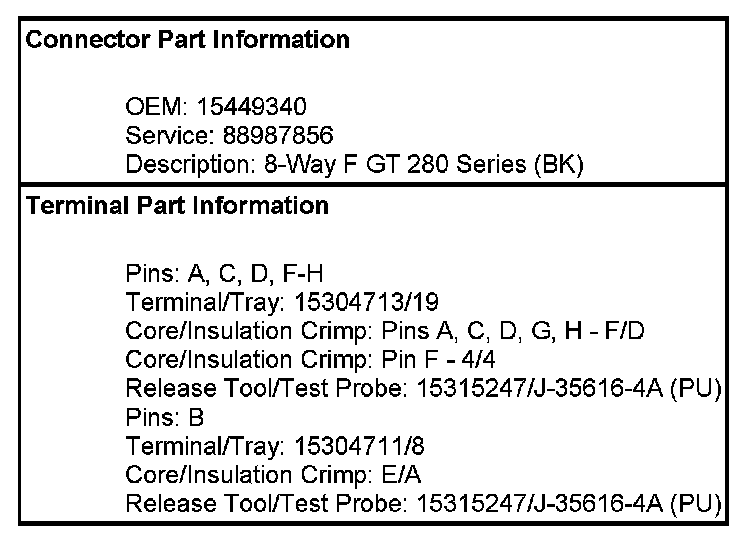

Window Switch - Driver (Early Production)

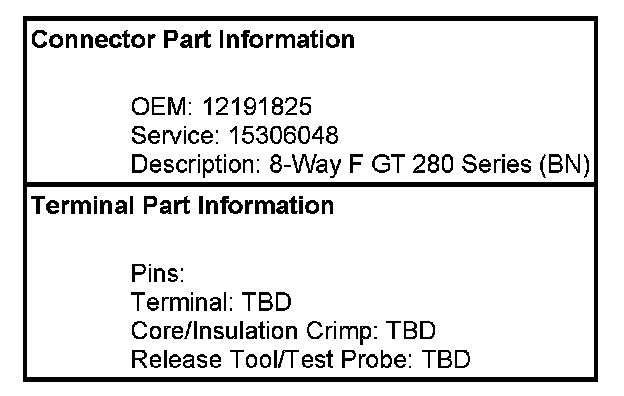

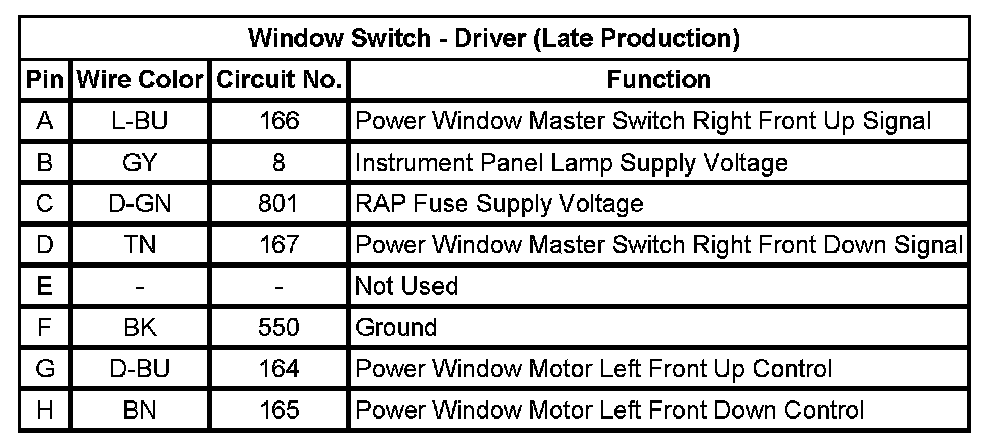

Window Switch - Driver (Late Production)

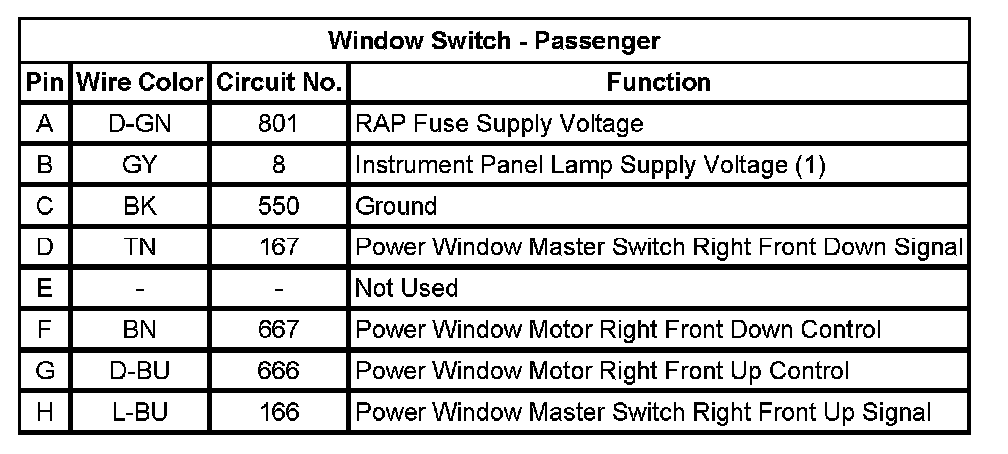

Window Switch - Passenger
