Home >> Saturn >> 2007 >> Sky L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Marker Lamp

Marker Lamp



Lighting Systems Connector End Views

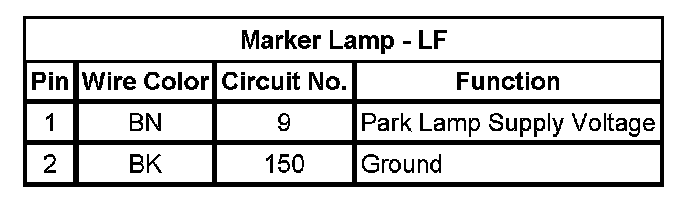

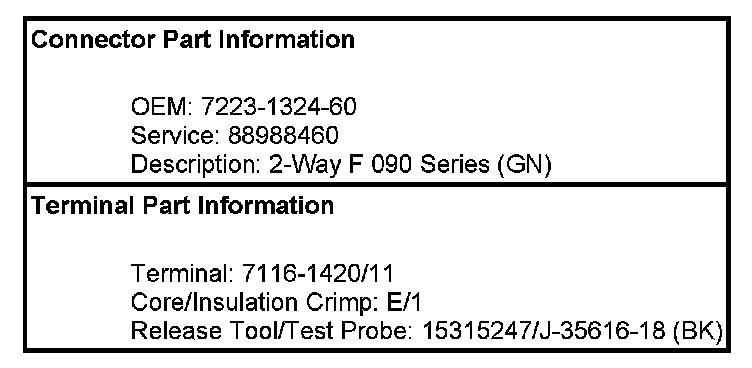

Marker Lamp - LF

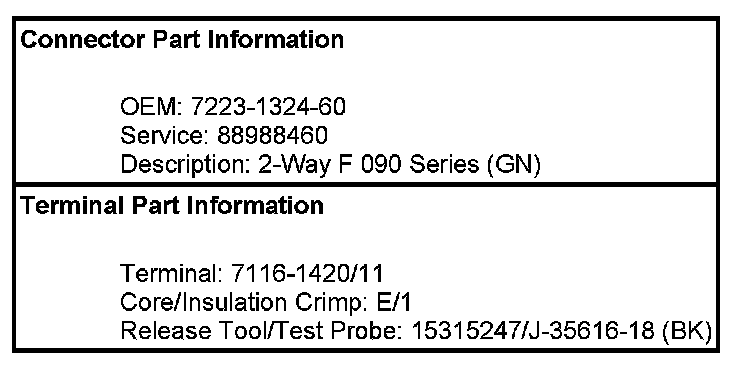

Marker Lamp - RF
