Home >> Saturn >> 2007 >> Sky L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> System Diagram

System Diagram



Lighting Systems Connector End Views

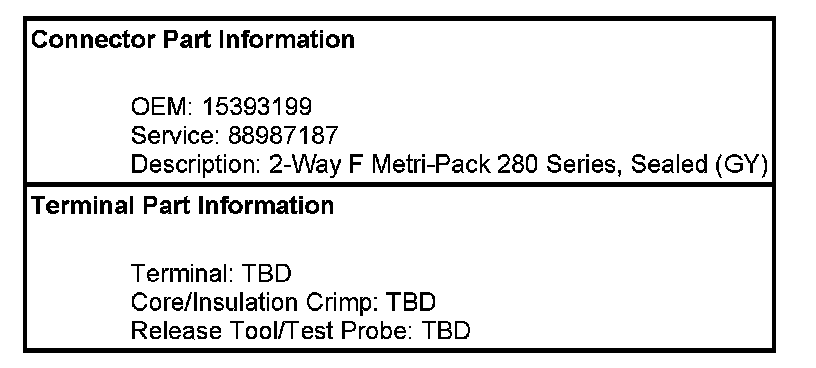

Headlamp - High Beam - Left

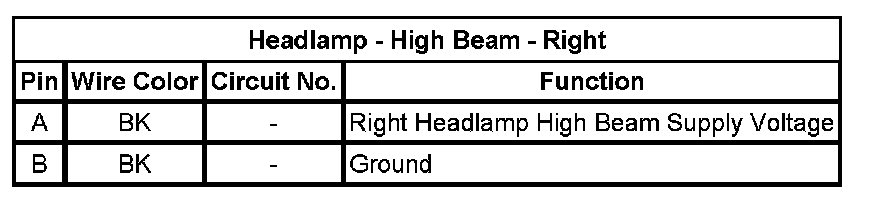

Headlamp - High Beam - Right

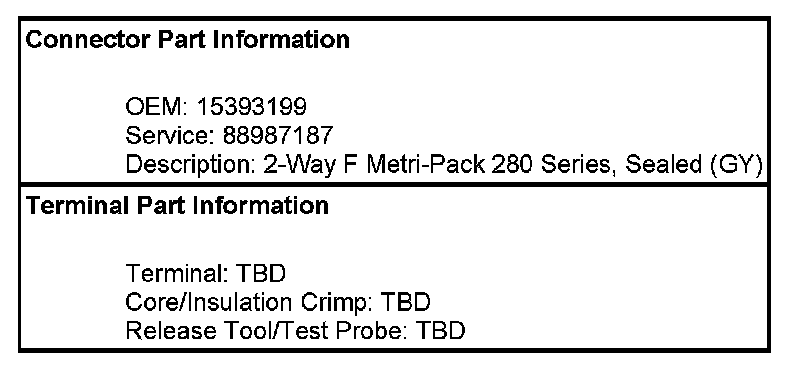

Headlamp - Low Beam - Left

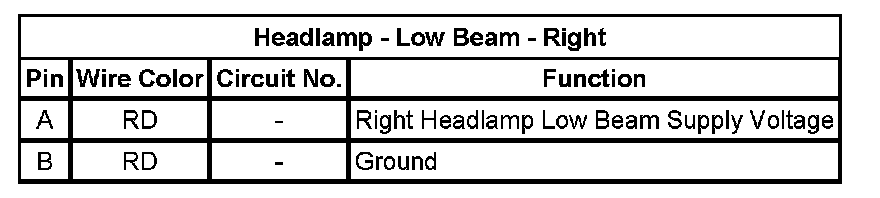

Headlamp - Low Beam - Right
