Engine Control Module
Engine Control Module Connector End Views

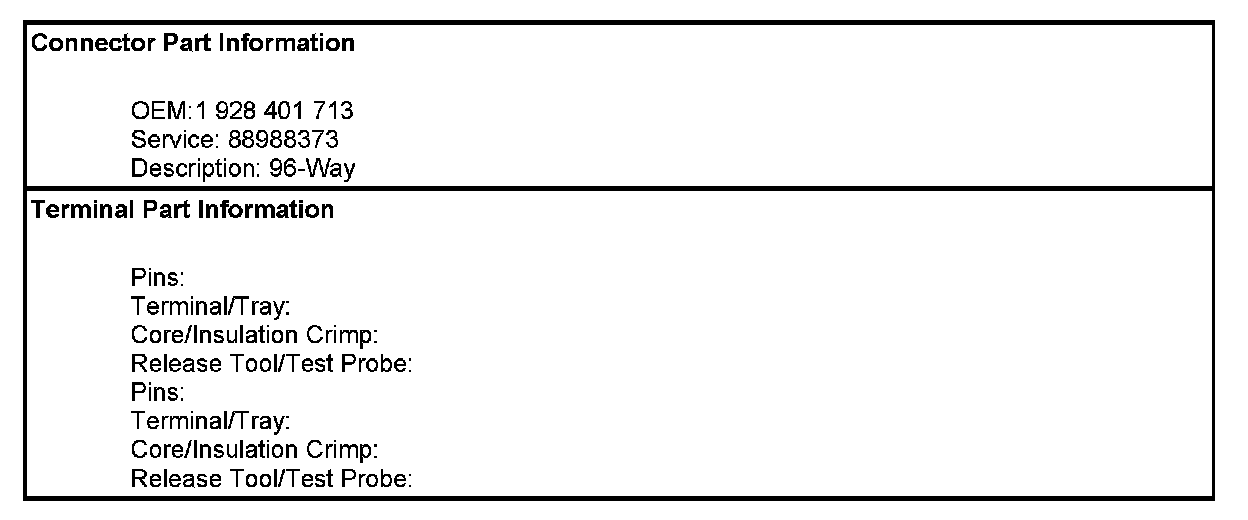

Engine Control Module (ECM) C1

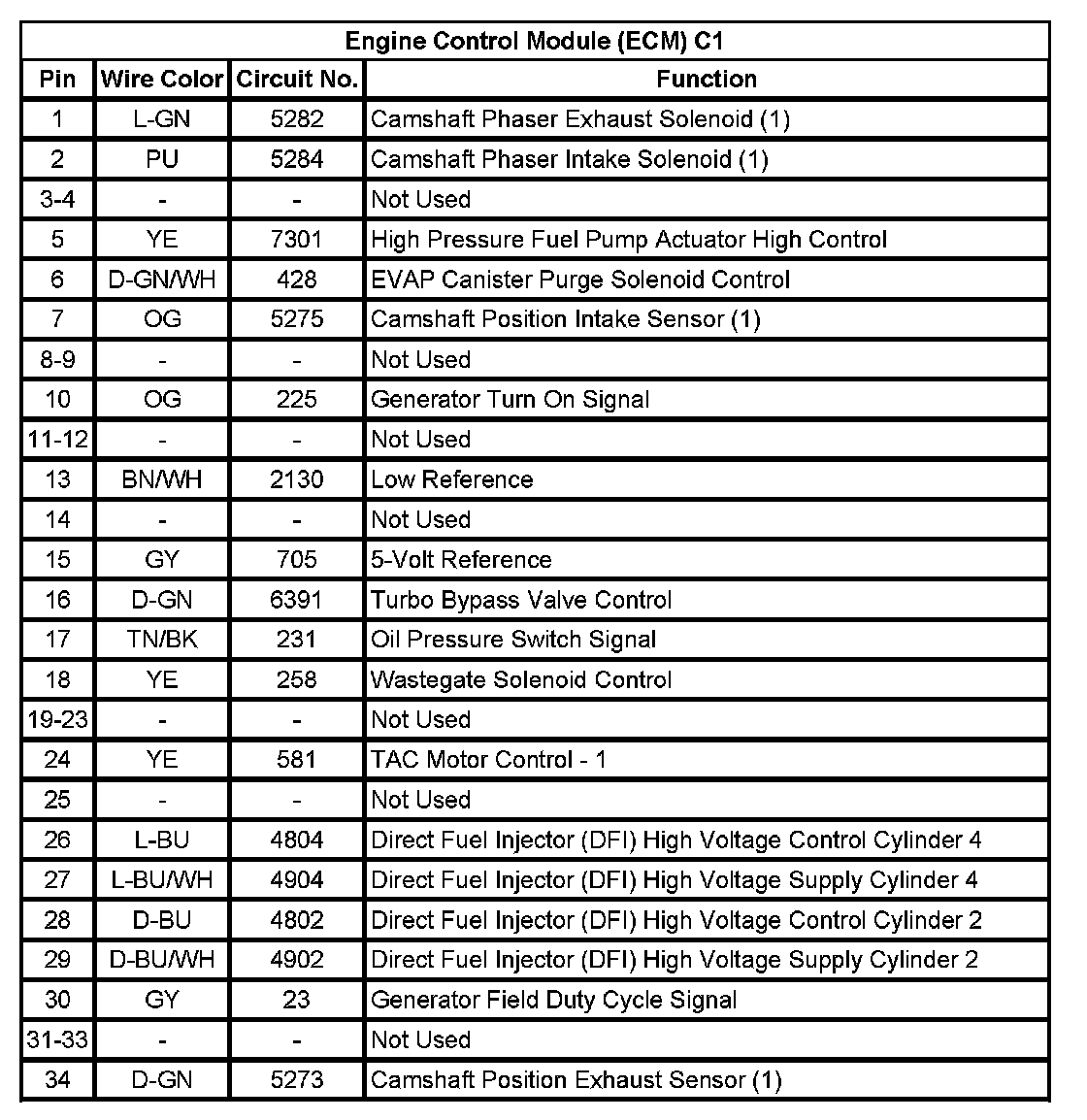

Engine Control Module (ECM) C1 (Pin 1 To 34):
Engine Control Module (ECM) C1 (Pin 35 To 88):

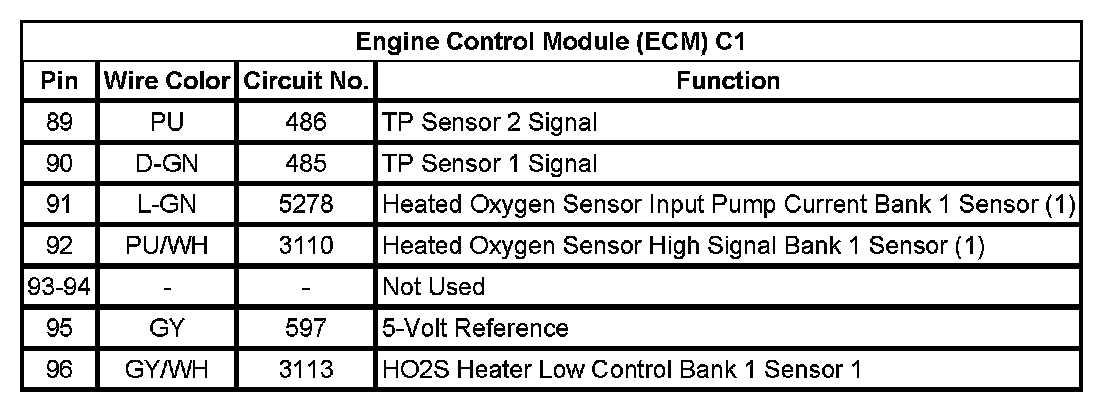

Engine Control Module (ECM) C1 (Pin 89 To 96):

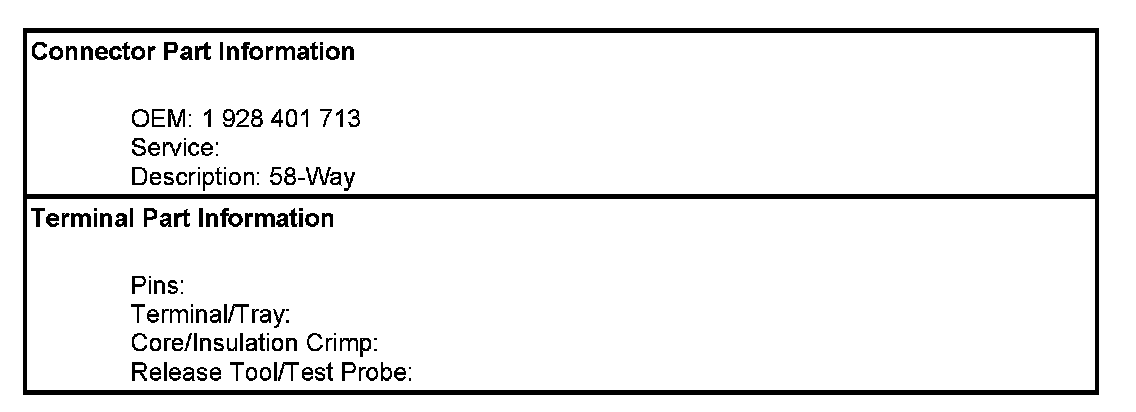

Engine Control Module (ECM) C2
Engine Control Module (ECM) C2 (Pin 1 To 29):

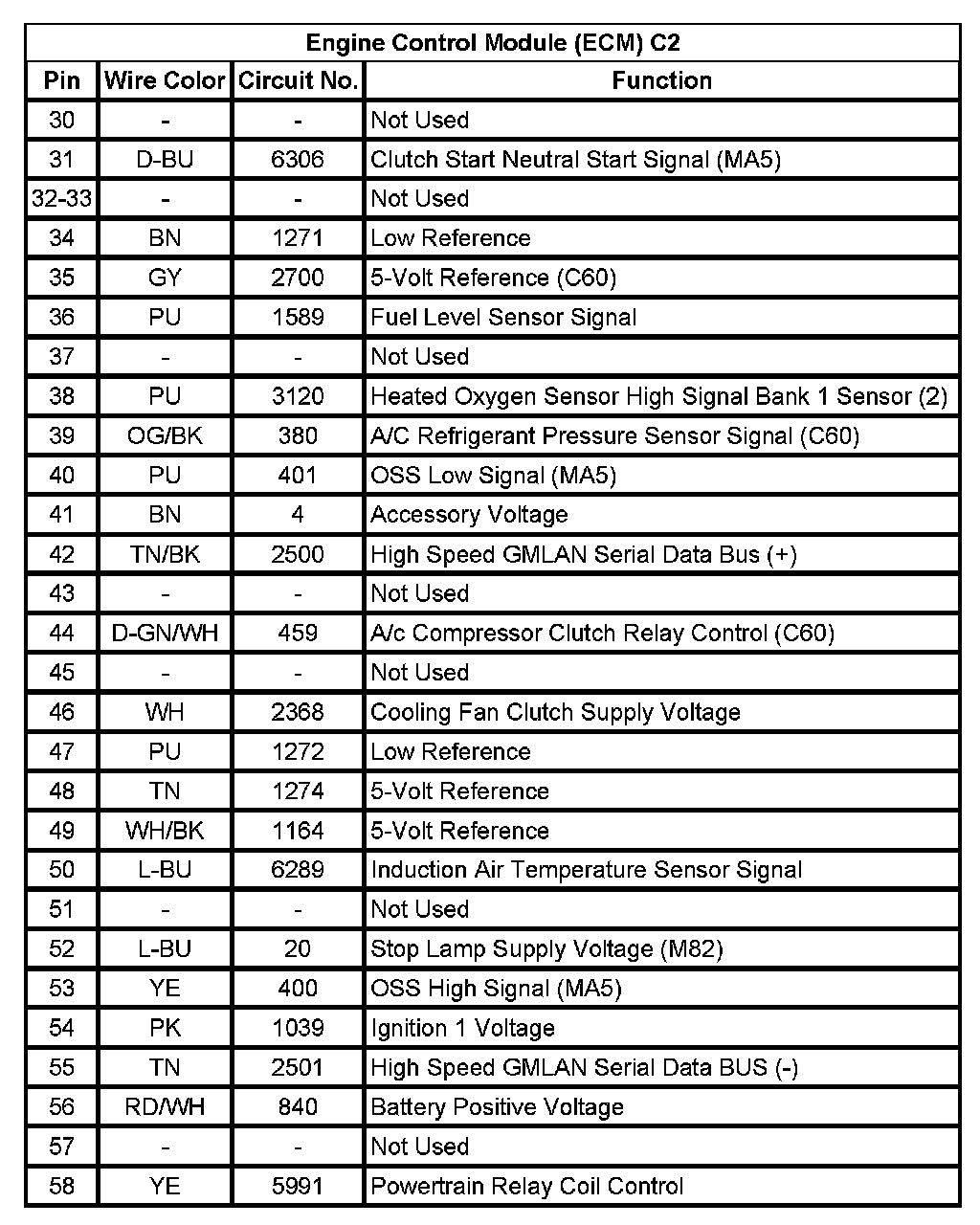

Engine Control Module (ECM) C2 (Pin 30 To 58):
