Clockspring Assembly / Spiral Cable, Air Bag

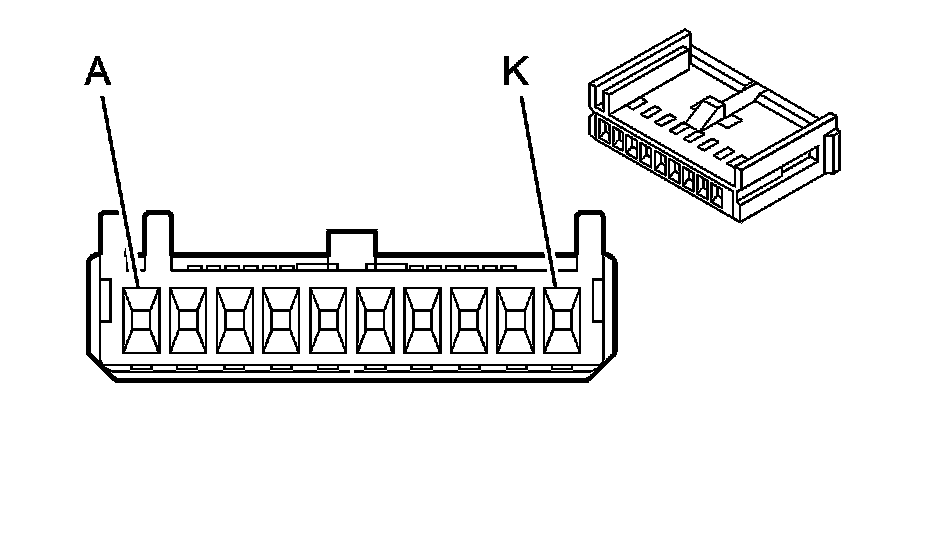

SIR Connector End Views

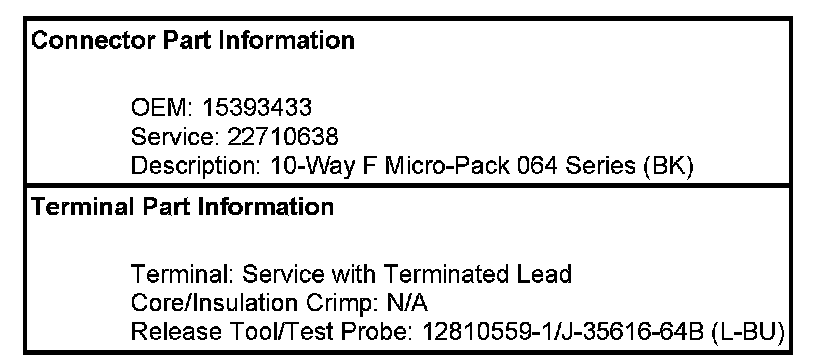

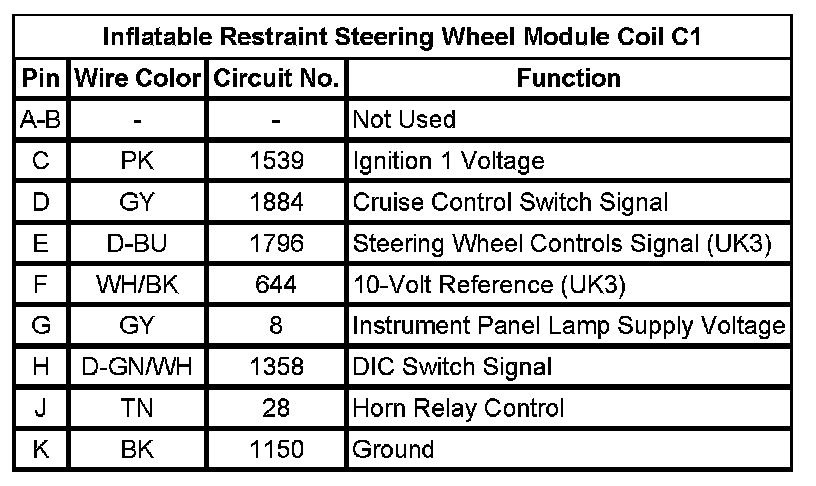

Inflatable Restraint Steering Wheel Module Coil C1

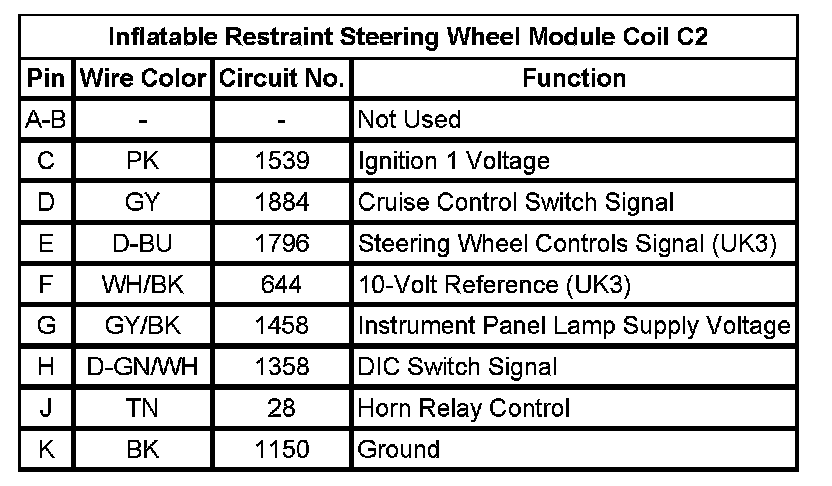

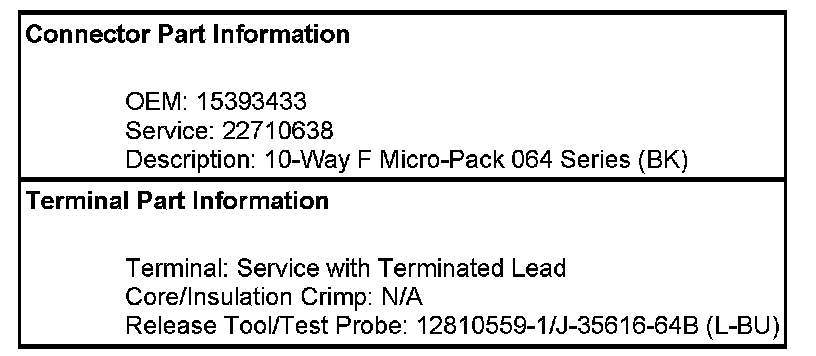

Inflatable Restraint Steering Wheel Module Coil C2

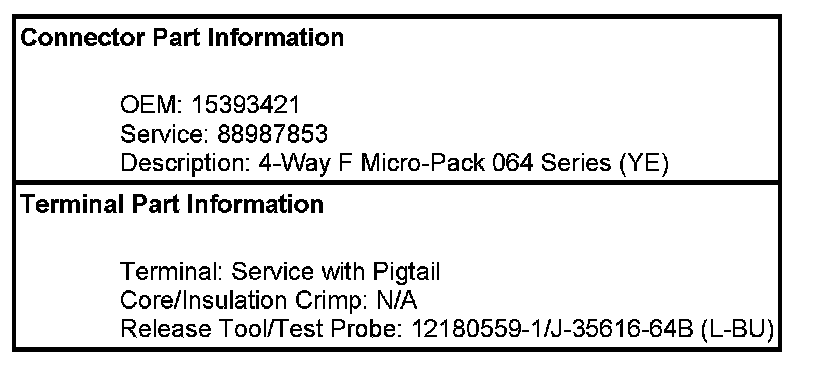

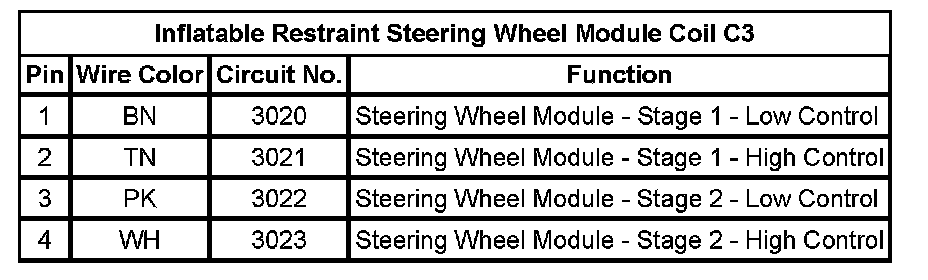

Inflatable Restraint Steering Wheel Module Coil C3
