Air Bypass Valve Solenoid, Turbocharger



Engine Controls Connector End Views

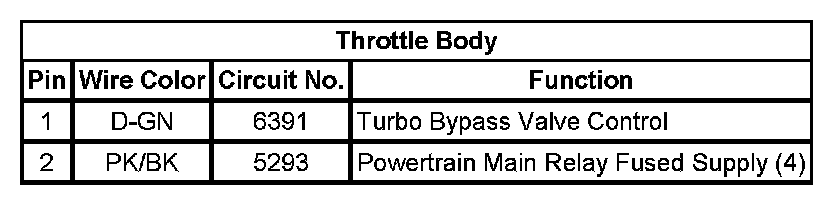

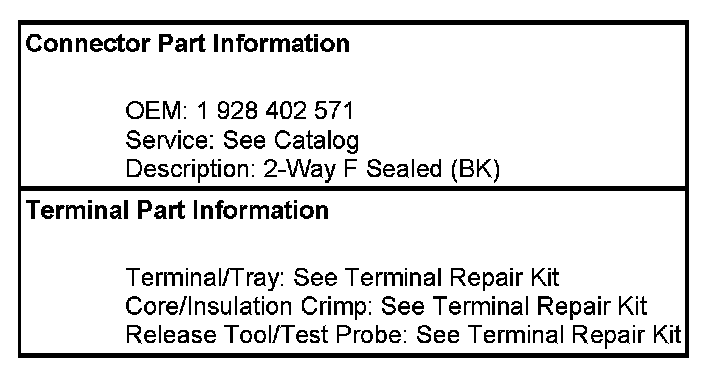

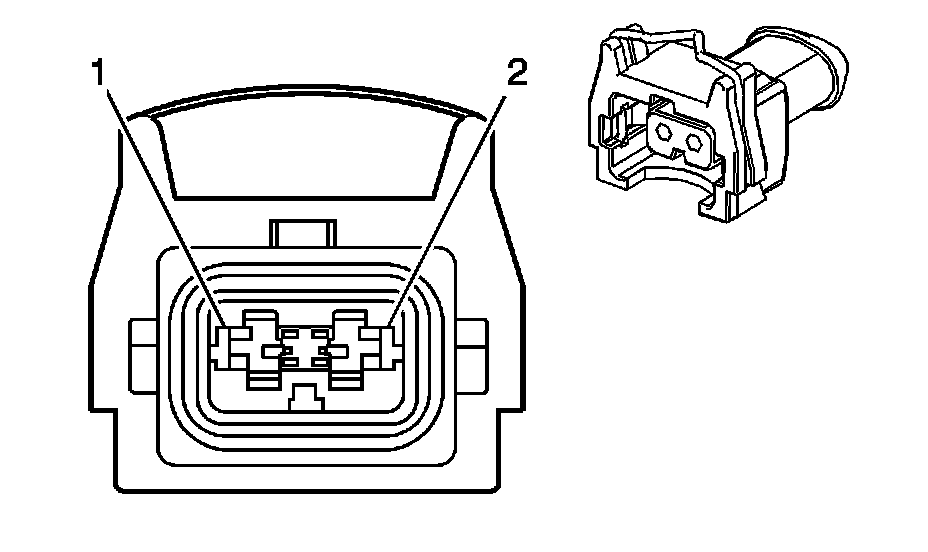

Turbo Bypass Valve Control Solenoid
