Acceleration/Deceleration Sensor

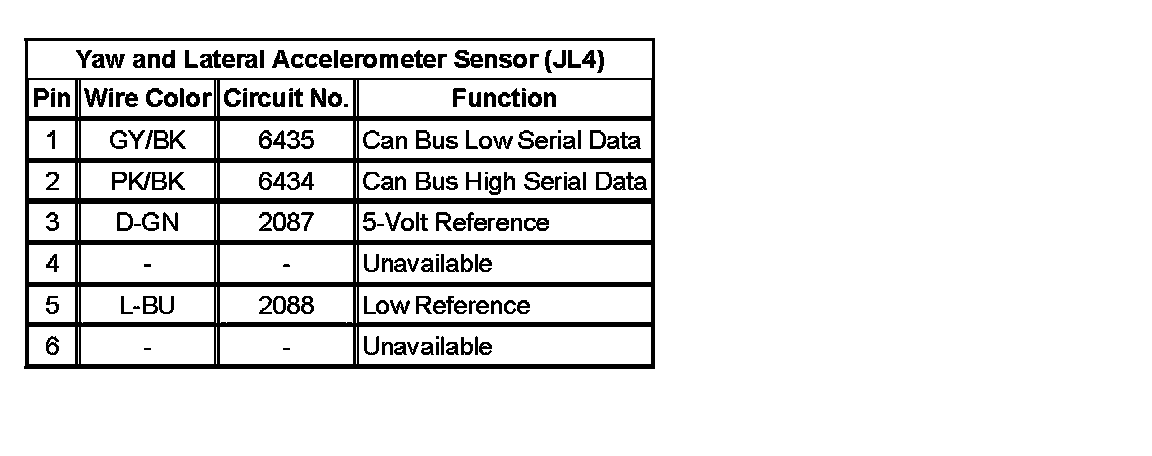

Yaw and Lateral Accelerometer Sensor (JL4)

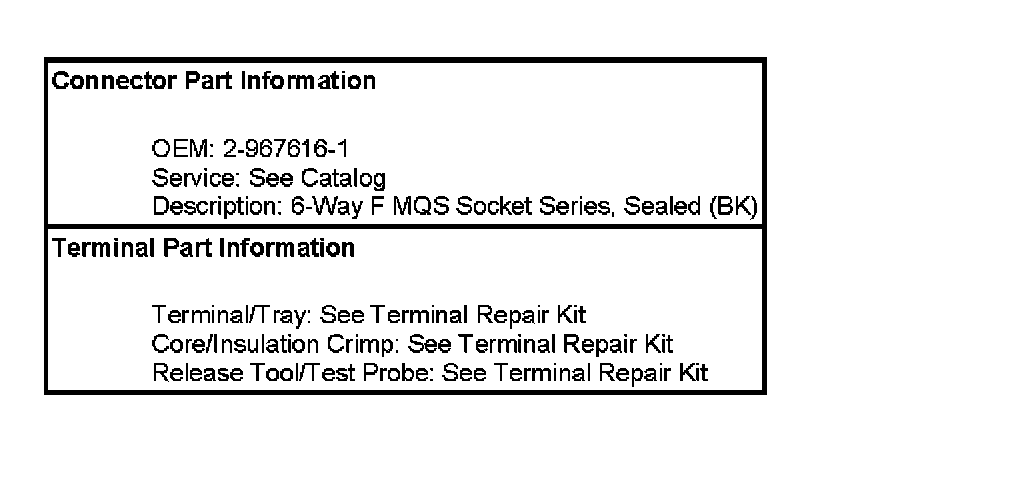

Yaw And Lateral Accelerometer Sensor (JL4):
