FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saturn
>>
2007
>>
Sky L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Parking Brake System
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics
Park Brake System Diagnosis

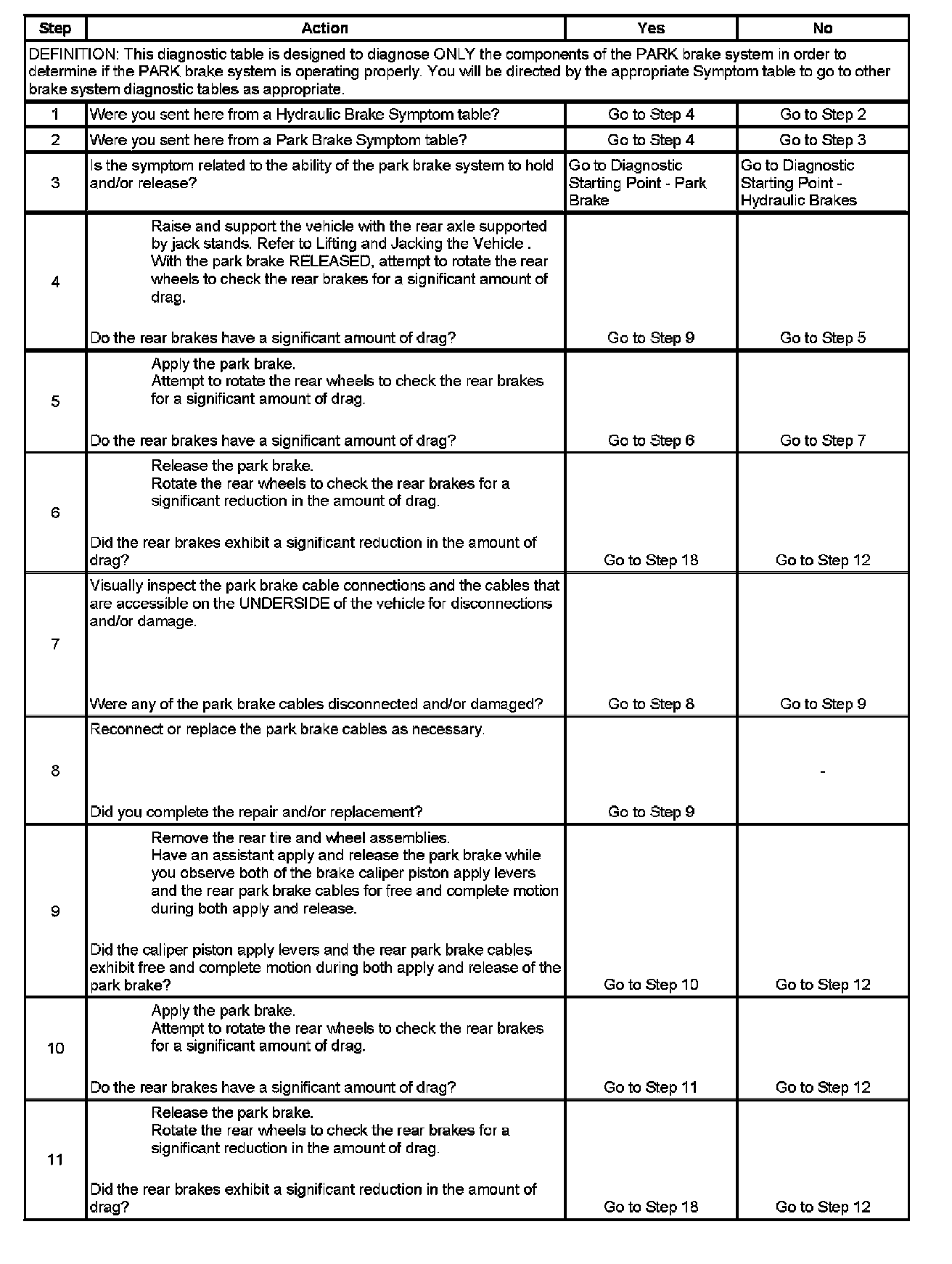

Step 1 - Step 11:

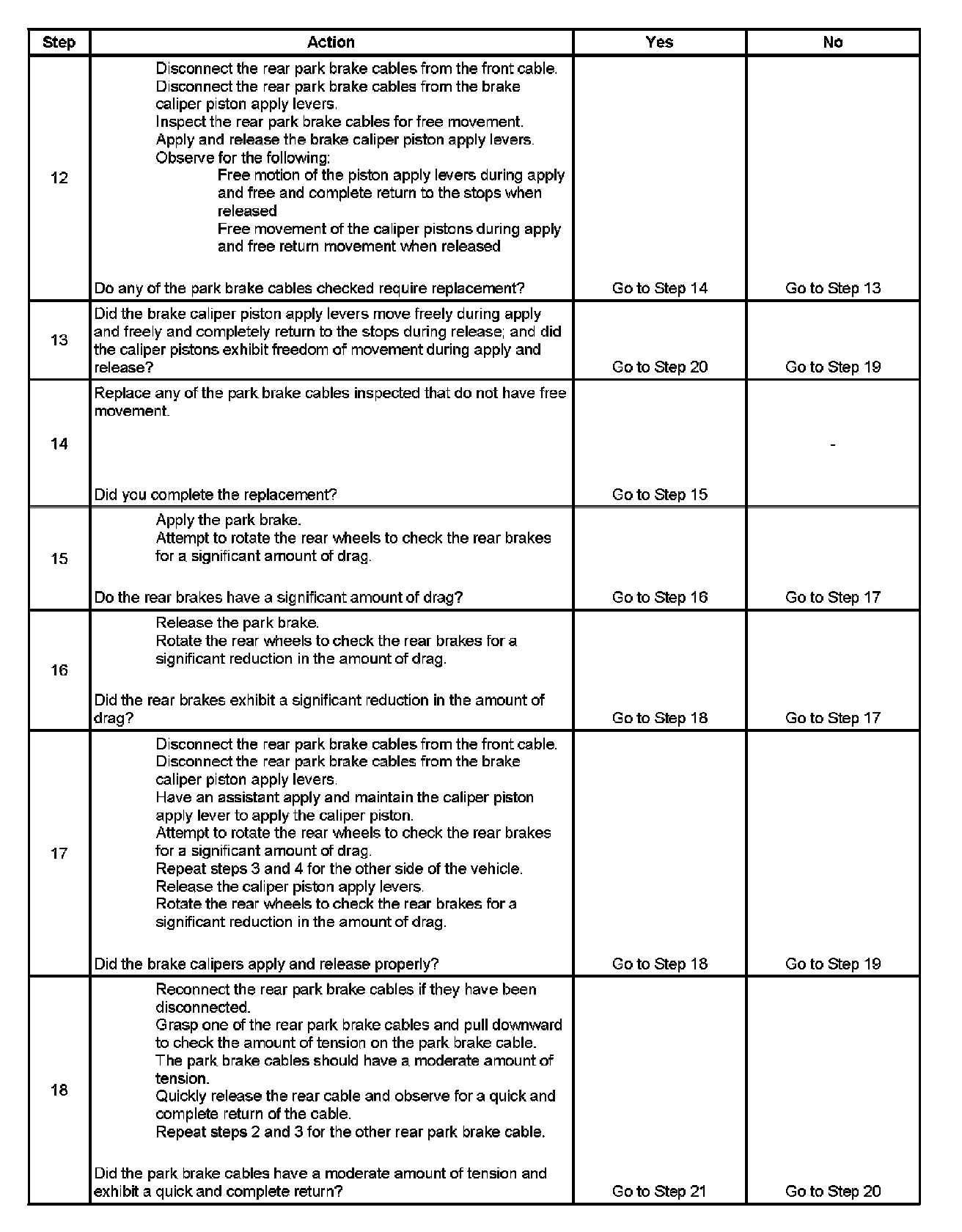

Step 12 - Step 18:

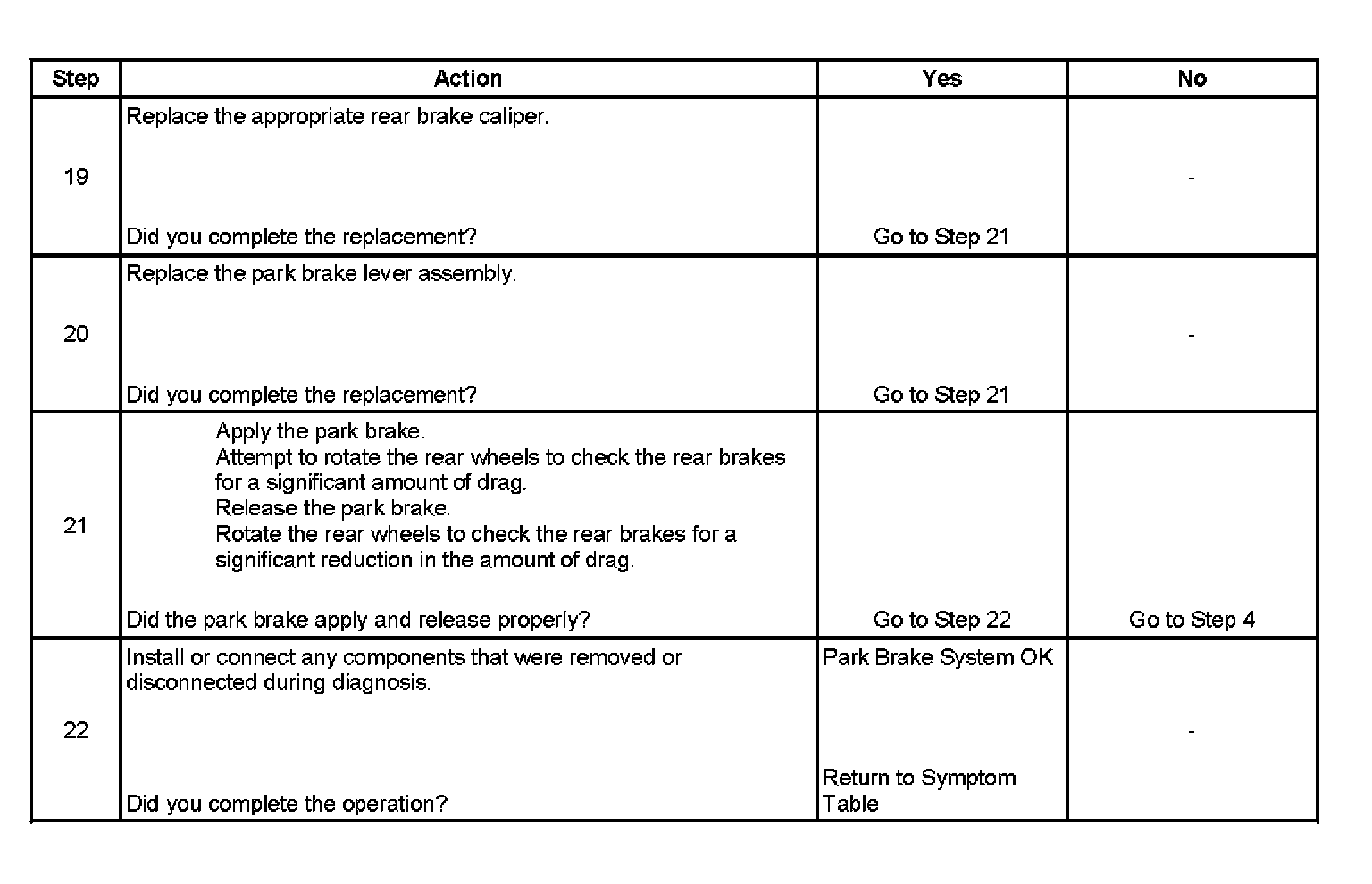

Step 19 - Step 22:
