Hydraulic Brake System Diagnosis
Hydraulic Brake System Diagnosis

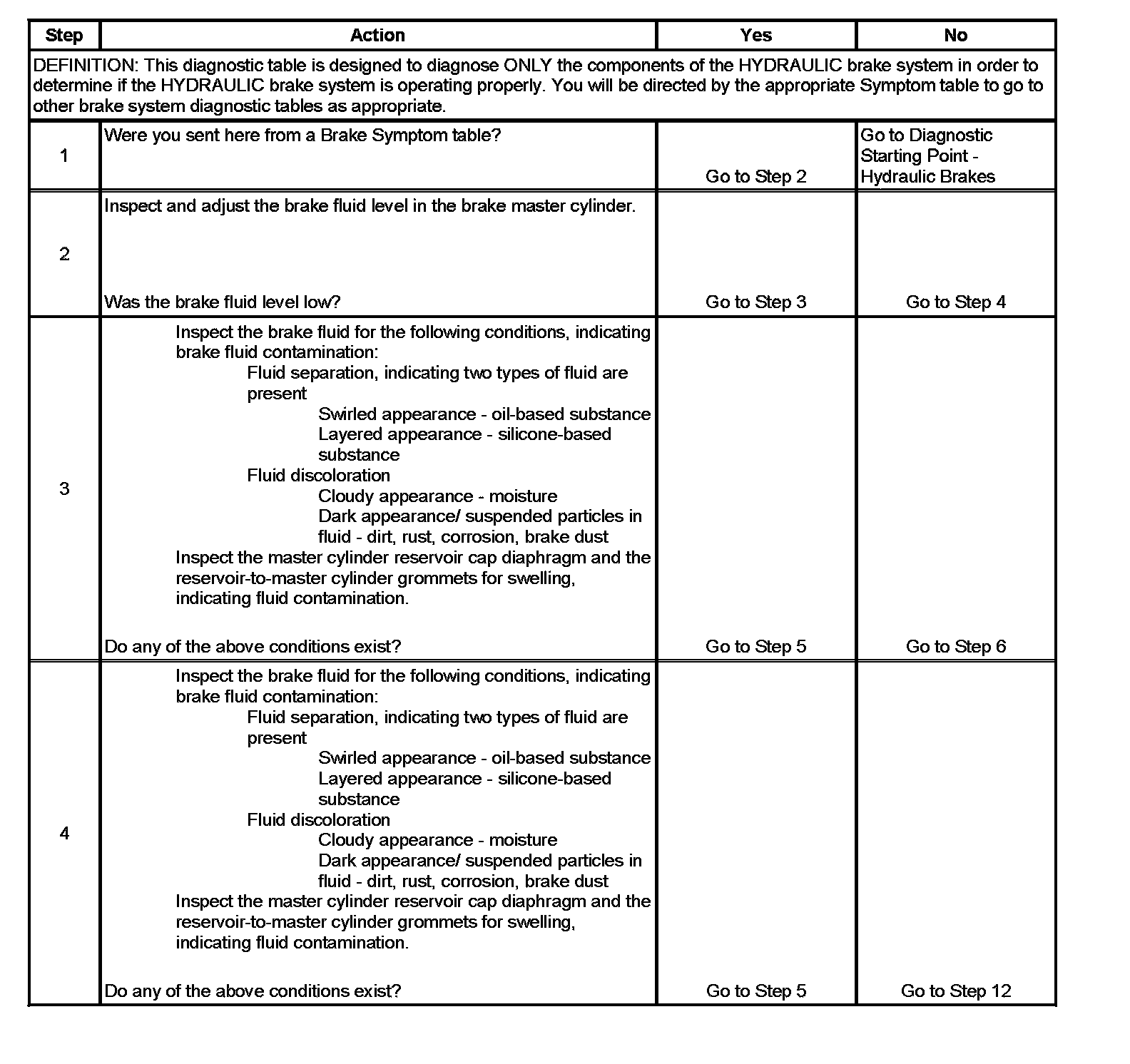

Step 1 - Step 4:

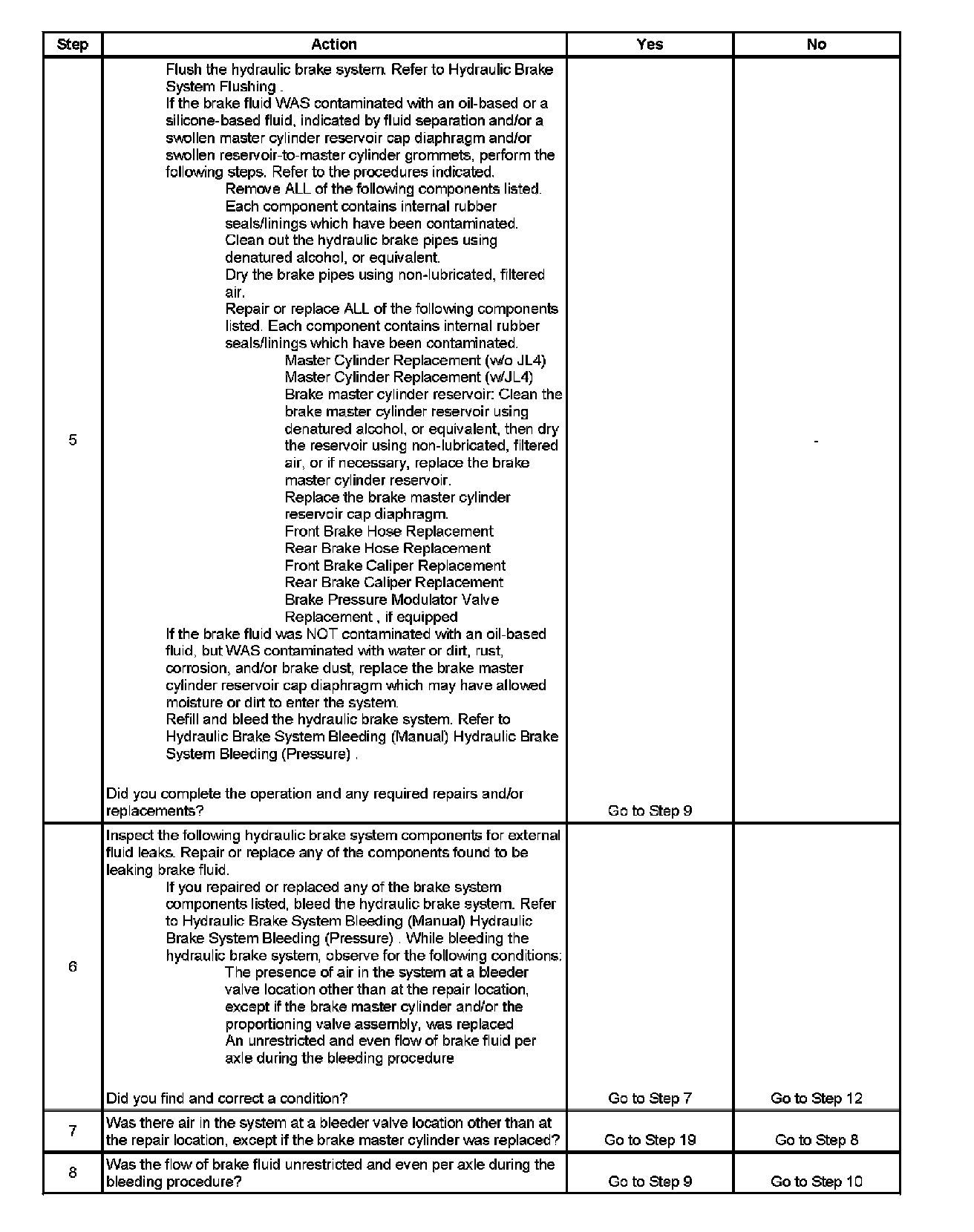

Step 5 - Step 8:

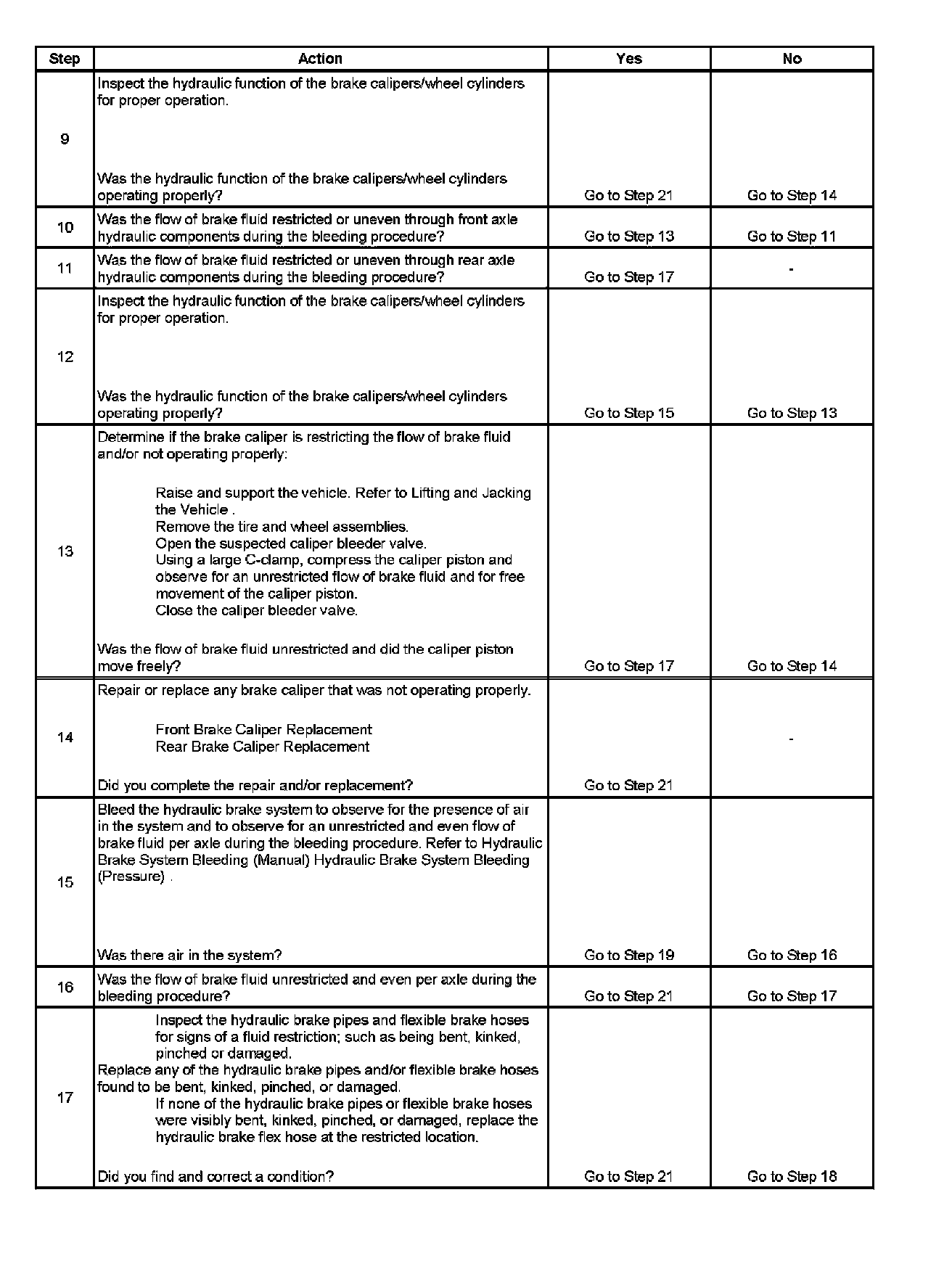

Step 9 - Step 17:

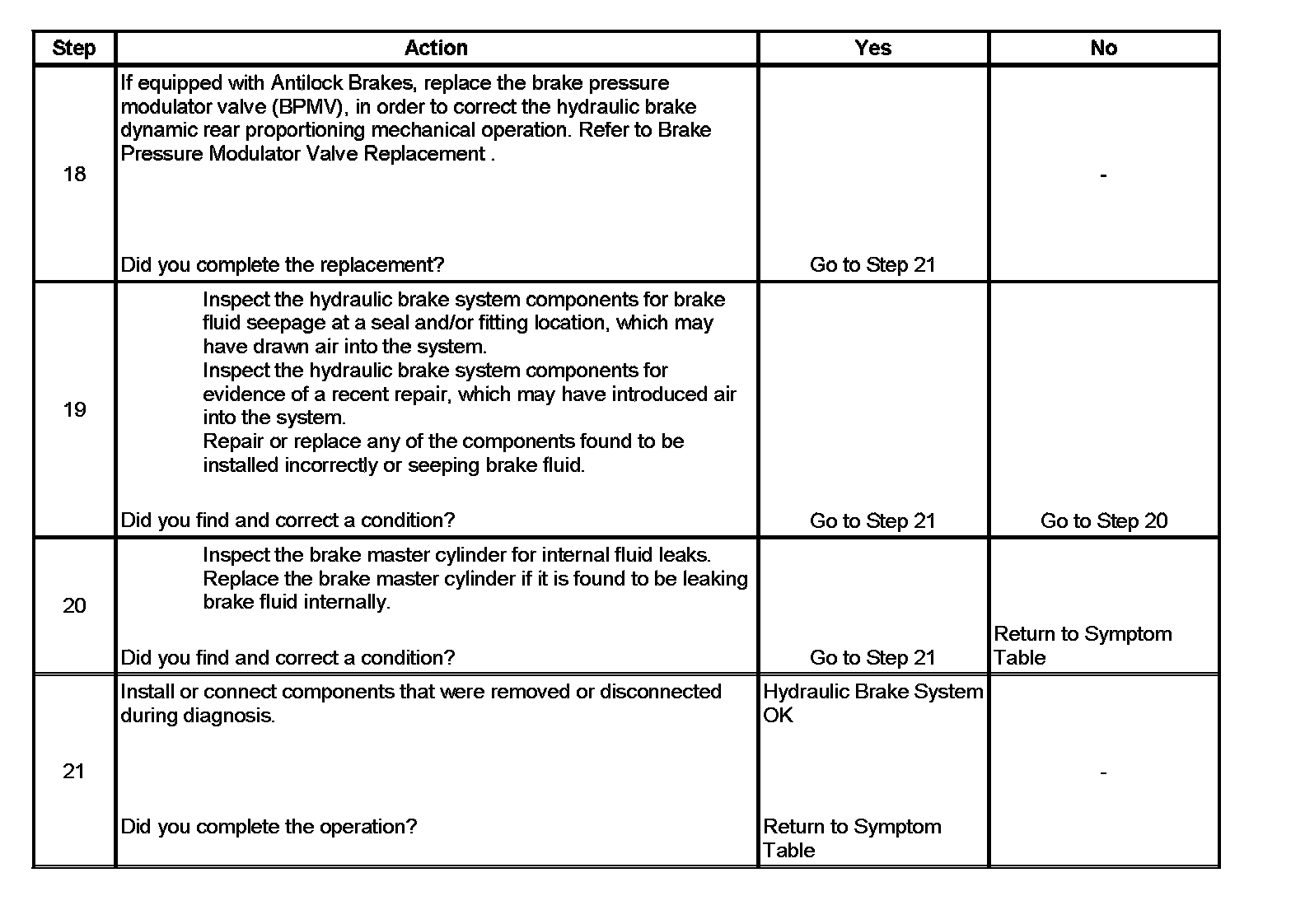

Step 18 - Step 21:
