Home >> Saturn >> 2007 >> Sky L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Bumper >> Rear Bumper >> Rear Bumper Cover / Fascia >> Service and Repair >> Rear Bumper Fascia Bracket Replacement

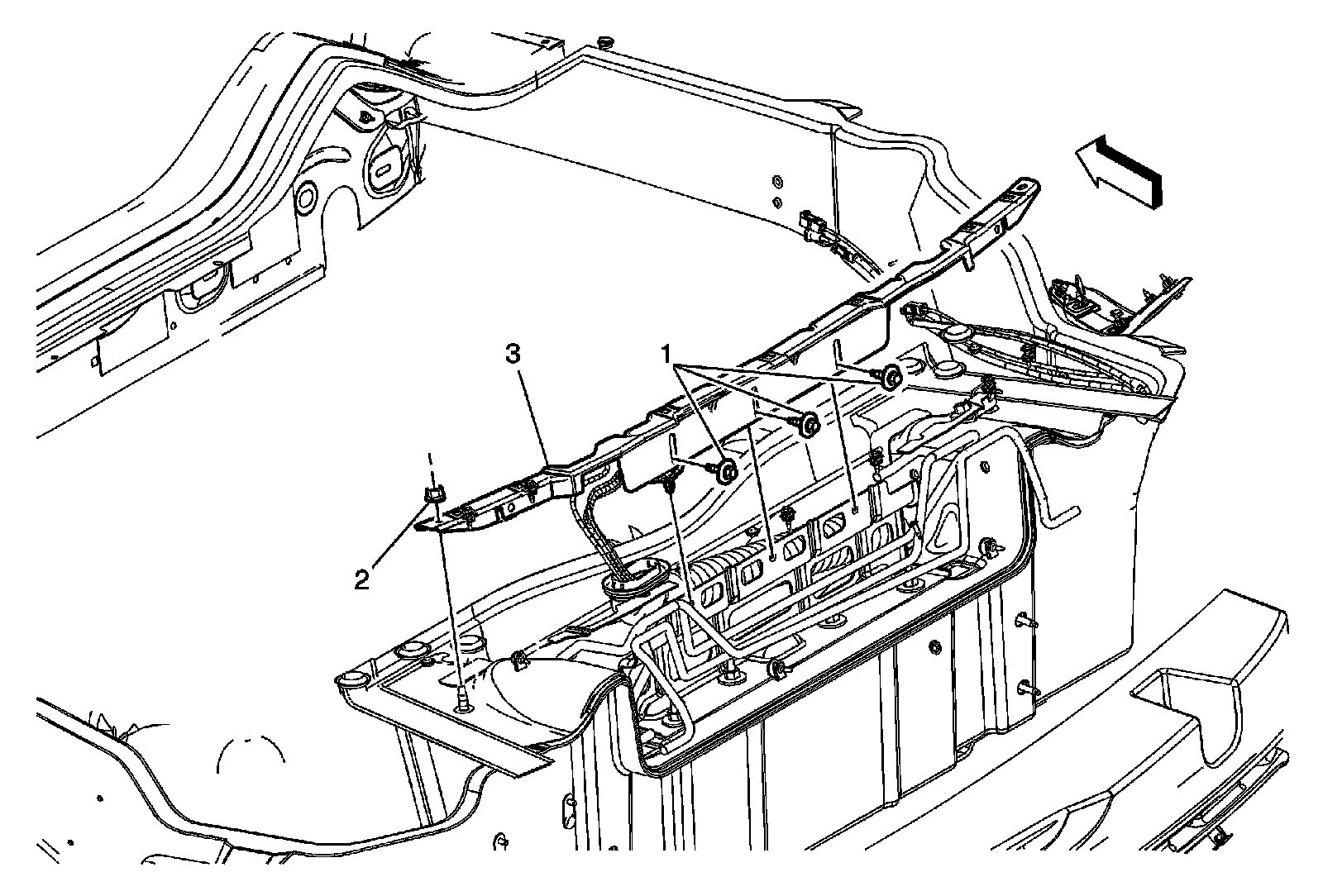

Rear Bumper Fascia Bracket Replacement

Rear Bumper Fascia Bracket Replacement

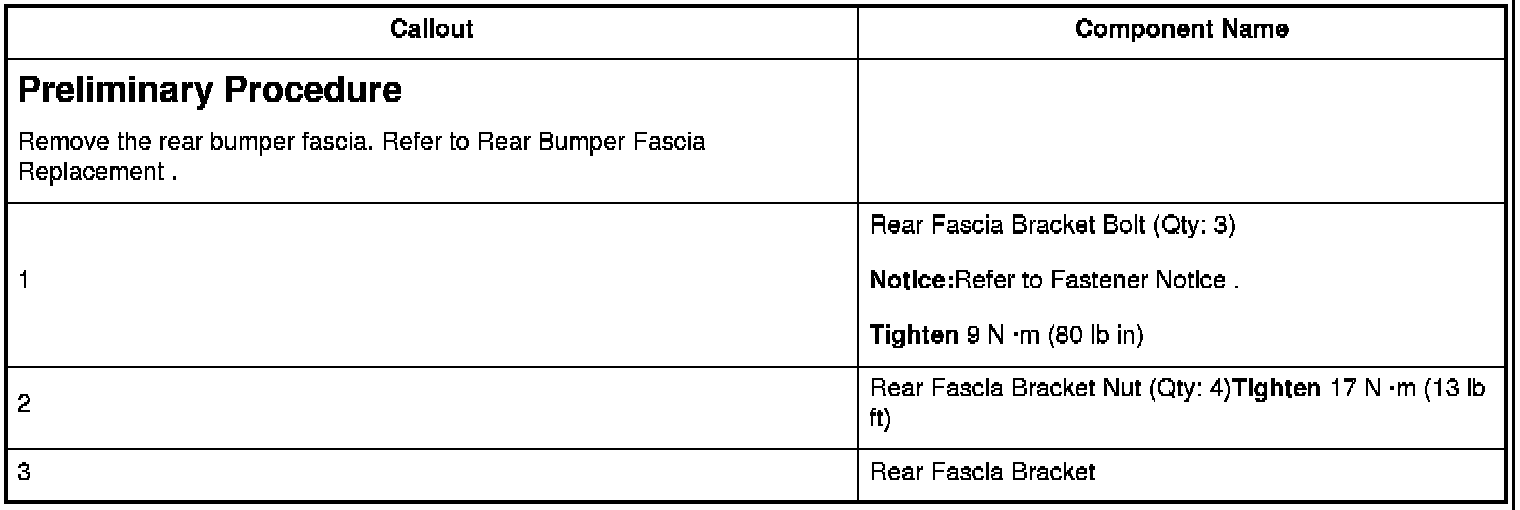

Preliminary Procedure

Notice:Refer to.
TightenTighten
