P0711
DTC P0711

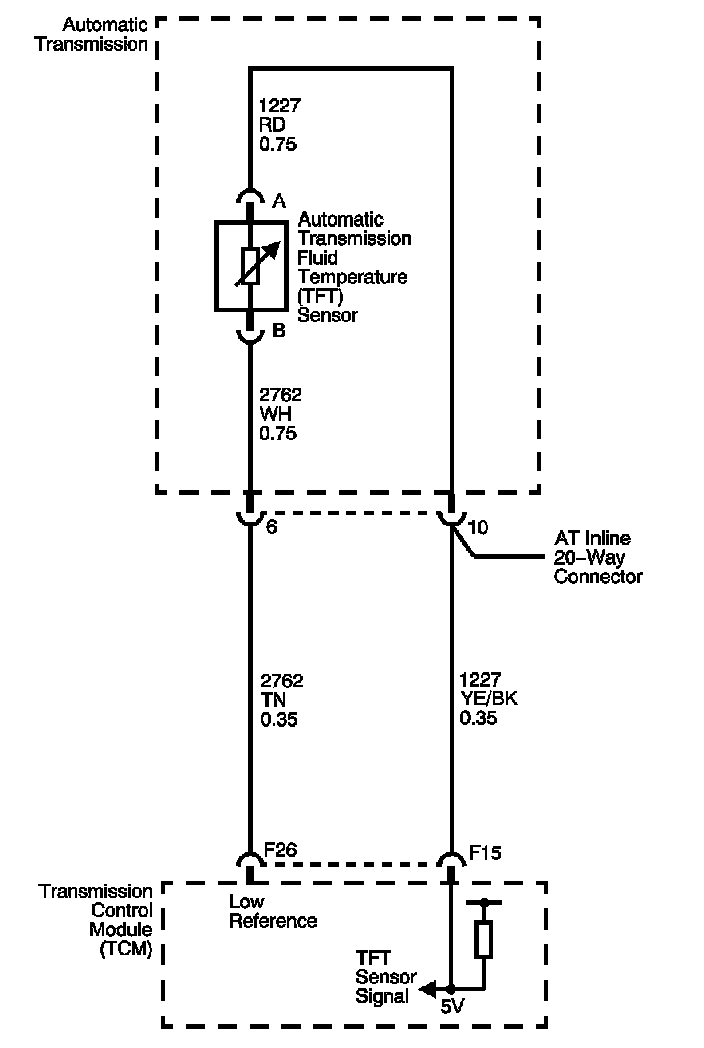

Circuit Description
The automatic transmission fluid temperature (TFT) sensor is a negative coefficient thermistor. When the transmission fluid is cold, the sensor resistance is high. As the transmission fluid warms up, the sensor resistance decreases. This diagnostic monitors the TFT circuit. The circuit may be functional, but not in the normal operating range. This diagnostic indicates stuck, erratic, intermittent, skewed, or inaccurate values, indicating poor system performance. The TFT range is -40 to +151°C (-40 to +305°F).
If the TCM detects rapid or no voltage changes in the TFT sensor circuit, then DTC P0711 sets. DTC P0711 is a type C DTC.
DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC P0711 Transmission Fluid Temperature (TFT) Sensor Performance
Conditions for Running the DTC
* No ECT DTC P0115.
* No ISS DTCs P0716 or P0717.
* No OSS DTCs P0722 or P0723.
* DTC P0711 has not passed in the current ignition cycle.
* The engine run time is greater than 5 seconds.
* The transmission fluid temperature is -39 to +149°C (-38 to +300°F).
* For conditions 1 and 2 below, the engine coolant temperature is greater than 70°C (158°F) and has changed by at least 50°C (90°F) since start-up.
* For conditions 1 and 2 below, the TCC slip speed is 120 RPM or greater for 300 seconds (5 minutes) cumulatively.
Conditions for Setting the DTC
One of the following conditions occurs:
Condition 1
* The transmission fluid temperature at start-up is -40 to +21°C (-40 to +70°F).
* The vehicle speed is greater than 8 km/h (5 mph) for 300 seconds (5 minutes) cumulatively.
* The transmission fluid temperature has not changed by more than 2°C (4°F) since start-up for 100 seconds (1 minute and 40 seconds).
Condition 2
* The transmission fluid temperature at start-up is 129-150°C (264-302°F).
* The vehicle speed is greater than 8 km/h (5 mph) for 300 seconds (5 minutes) cumulatively.
* The transmission fluid temperature has not changed by more than 2°C (4°F) since start-up for 100 seconds (1 minute and 40 seconds).
Condition 3
The transmission fluid temperature has changed by 20°C (36°F) or greater within 250 milliseconds; 14 times within 7 seconds.
Action Taken When the DTC Sets
* The TCM does not request the engine control module (ECM) to illuminate the malfunction indicator lamp (MIL).
* The TCM freezes transmission adaptive functions.
* The TCM calculates a default transmission fluid temperature based on engine coolant temperature, intake air temperature and engine run time.
* The TCM records the operating conditions when the Conditions for Setting the DTC are met. The TCM stores this information as a Failure Record.
* The TCM stores DTC P0711 in TCM history.
Conditions for Clearing the DTC
* A scan tool can clear the DTC.
* The TCM clears the DTC from TCM history if the vehicle completes 40 warm-up cycles without a non emission related diagnostic fault occurring.
* The TCM cancels the DTC default actions when the fault no longer exists and the DTC passes.
Test Description
The numbers below refer to the step numbers on the diagnostic table.

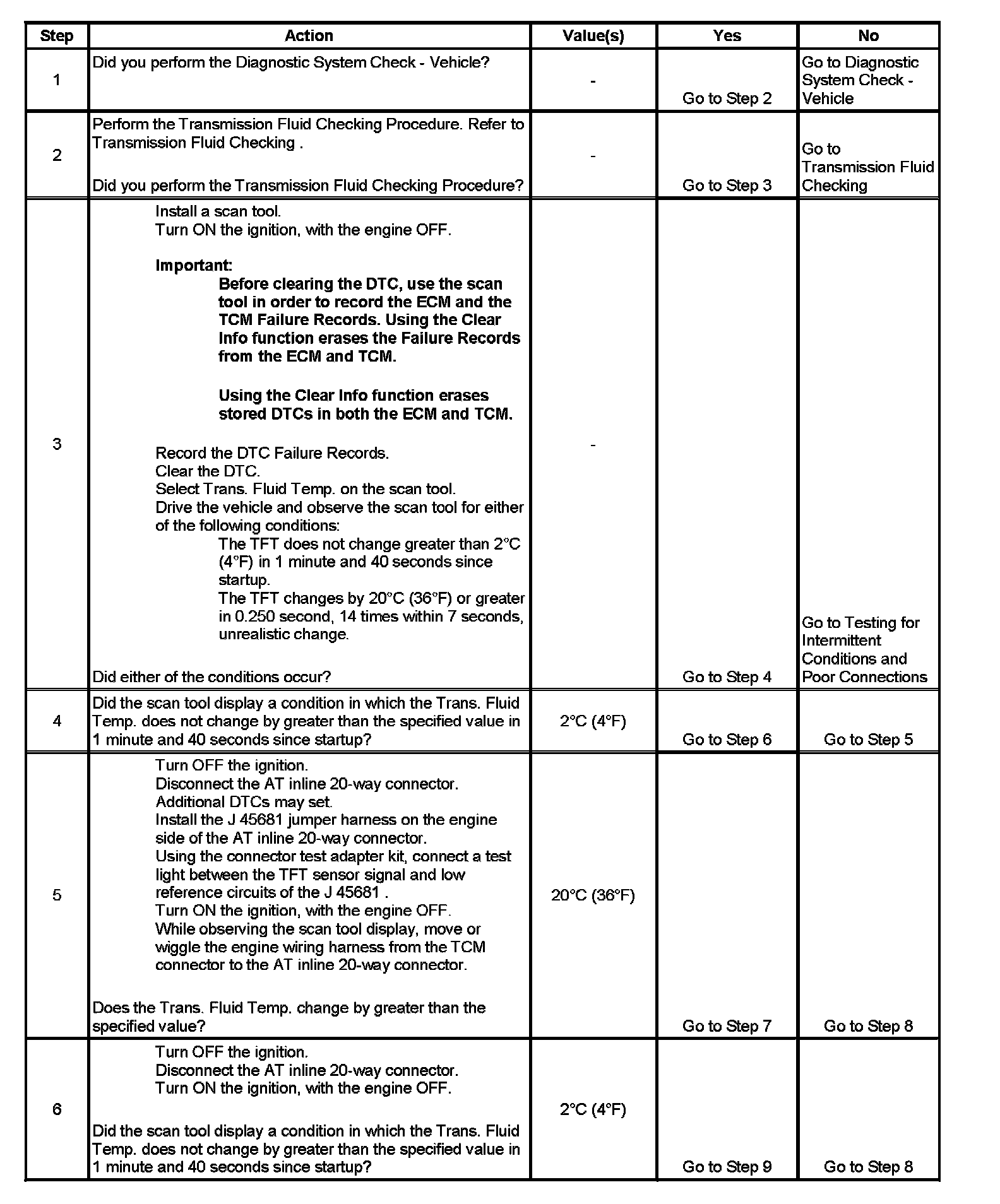

5. This step tests for an intermittent short or open condition in the engine wiring harness. The test light is used as a resistor in the circuit.

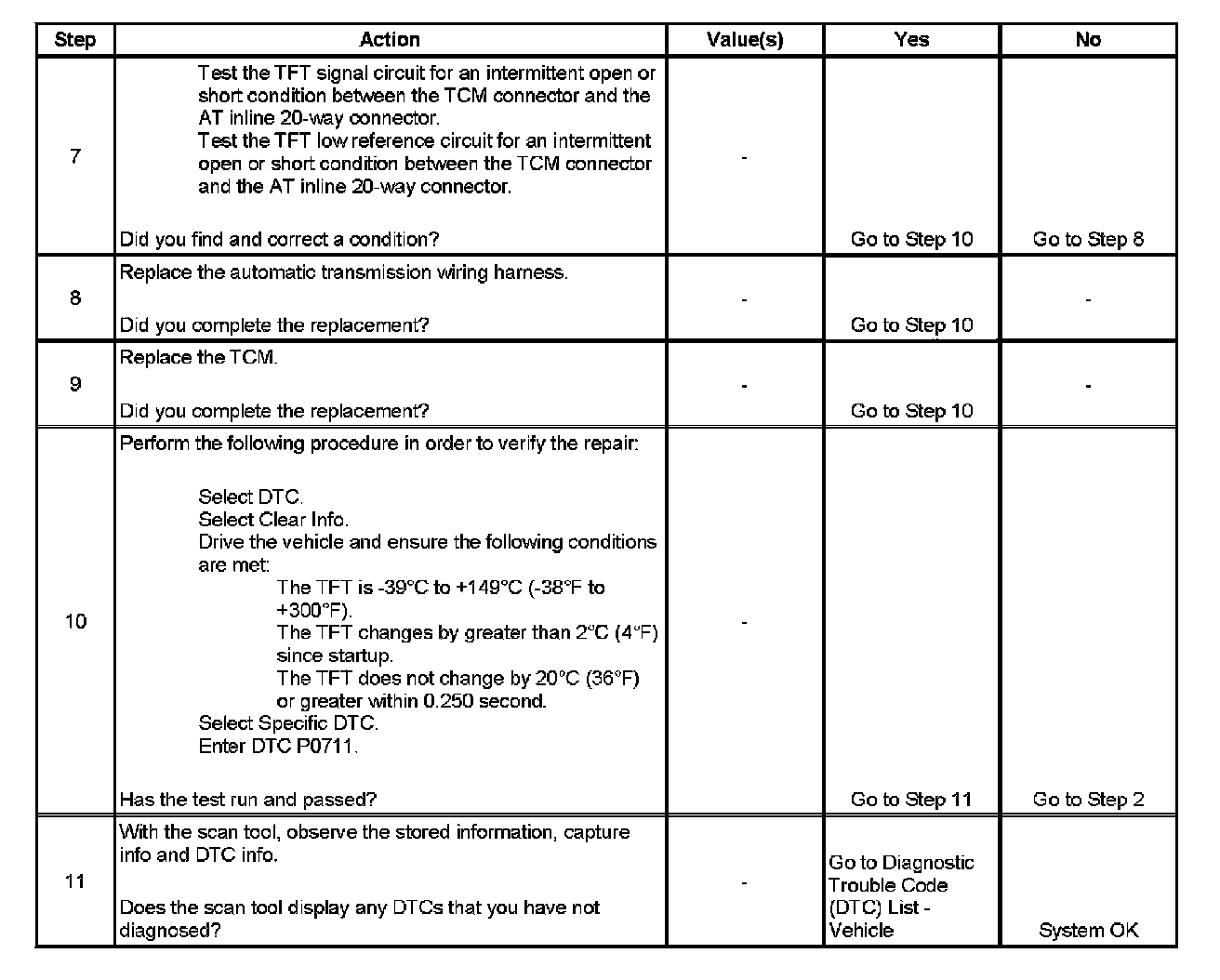

6. This step determines if the TCM or the TFT, sensor is causing a steady, unchanging TFT, reading.
