P0116
DTC P0116
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Initial Inspection and Diagnostic Overview
* Review Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC P0116
- Engine Coolant Temperature (ECT) Sensor Performance

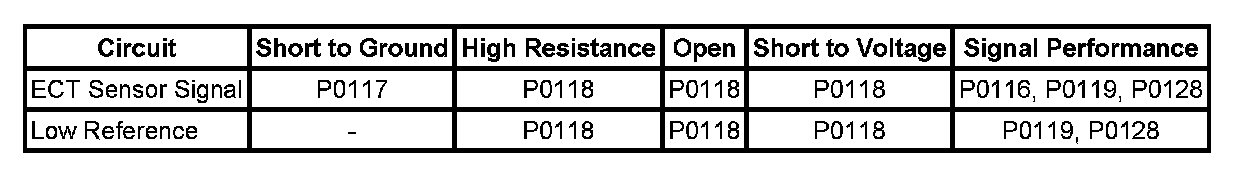

Diagnostic Fault Information

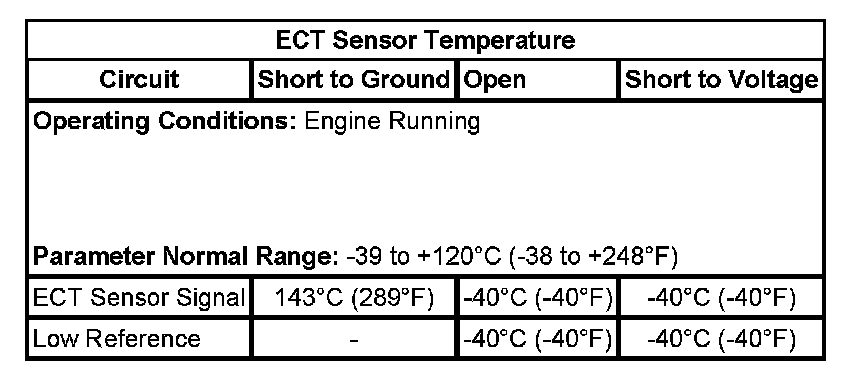

Typical Scan Tool Data
Circuit/System Description
The engine coolant temperature (ECT) sensor is a variable resistor that measures the temperature of the engine coolant. The engine control module (ECM) supplies 5 volts to the ECT sensor signal circuit and supplies a ground to the low reference circuit.
The ECM uses this ECT sensor performance diagnostic to determine if the input from the ECT sensor is skewed warmer than normal. The internal clock of the ECM will record the amount of time the engine is OFF. If the calibrated engine OFF time is met at start-up, the ECM will compare the temperature difference between the actual measured ECT and a calibrated ECT model. The information for this model is derived from the previous drive cycle and includes the accumulated mass air flow (MAF), the engine run time, the ambient air temperature and the ECT at the end of the drive cycle.
If the ECM detects that the temperature difference between the measured and modeled ECT is not within an acceptable operating range of each other, then the ECM will continue to run this diagnostic to determine if a block heater was active during the engine OFF time. If a block heater is not detected, then the ECM will fail this diagnostic.
Conditions for Running the DTC
* DTCs P0112, P0113, P0114, P0117, P0118, P0119, P0128, P0502, P0503, P0601, P1621, P2610 are not set.
* The vehicle has had a minimum ignition OFF time of 8 hours.
* The engine is running.
* The start-up modeled ECT is less than 50°C (+122°F).
* The previous accumulated MAF is greater than 6,000 grams.
* The previous engine run time is greater than 600 seconds.
* This DTC runs once per ignition cycle within the enabling conditions.
OR
* The vehicle has had a minimum ignition OFF time of 8 hours.
* The engine is running.
* The previous ECT at engine shutdown is greater than 75°C (+167°F).
* The previous accumulated MAF is greater than 6,000 grams.
* The previous engine run time is greater than 600 seconds.
Conditions for Setting the DTC
P0116
The ECM detects a temperature difference at initial power-up that indicates that the actual measured ECT is 10°C (18°F) greater than the modeled ECT, and an active block heater has not been detected.
Action Taken When the DTC Sets
DTC P0116 is a Type B DTC.
Conditions for Clearing the MIL/DTC
DTC P0116 is a Type B DTC.
Diagnostic Aids
* Inspect the ECT sensor terminals for corrosion and for engine coolant leaking through the sensor. Engine coolant that is leaking through the sensor will create a high resistance short to ground. This condition results in less voltage on the ECT sensor signal circuit, which is interpreted by the ECM as a warmer ECT.
* The ECM memory which includes the ignition OFF timer is maintained by battery power. If the ECM or the battery are disconnected for less than 15 seconds the proper operation of the ECM memory and the timer can be disrupted. Always disconnect these components for greater than 30 seconds.
Circuit/System Verification
Caution: Under pressure, the temperature of the solution in the radiator can be considerably higher, without boiling. Removing the radiator cap while the engine is hot (pressure is high), will cause the solution to boil instantaneously, with explosive force. The solution will spew out over the engine, fenders, and the person removing the cap. Serious bodily injury may result. Flammable antifreeze, such as alcohol, is not recommended for use at any time. Flammable antifreeze could cause a serious fire.
1. Turn OFF the ignition.
2. Inspect the cooling system surge tank for the proper engine coolant level.
Important: Determine the ambient temperature by using an accurate thermometer.
3. If the ignition has been OFF for 8 hours or greater, the intake air temperature (IAT), the IAT 2 and the ECT should be within 9°C (16°F) of each other and also the ambient temperature. Ignition ON, observe the scan tool IAT Sensor, IAT 2 Sensor and the ECT Sensor parameters. Compare those sensor parameters to each other and also to the ambient temperature to determine if the condition is current.
4. Engine running, observe the ECT Sensor parameter. The reading should be between -39 to +120°C (-38 to +248°F) depending on the current ambient temperature and the vehicle operating conditions.
Circuit/System Testing
1. Ignition OFF, disconnect the ECT harness connector at the ECT sensor.
2. Ignition OFF for 90 seconds, test for less than 5 ohms of resistance between the low reference circuit and ground.
• If greater than the specified range, test the low reference circuit for an open/high resistance. If the circuit tests normal, replace the ECM.
3. Ignition ON, verify the scan tool ECT Sensor parameter is less than -39°C (-38°F).
• If greater than the specified range, test the signal circuit for a short to ground. If the circuit tests normal, replace the ECM.
4. Install a 3A fused jumper wire between the signal circuit and the low reference circuit. Verify the scan tool ECT Sensor parameter is greater than 140°C (284°F).
• If less than the specified range, test the signal circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the ECM.
5. If the circuits test normal, test the ECT sensor.
Component Testing
Measure and record the resistance of the ECT sensor at various ambient temperatures, then compare those measurements to the Temperature vs Resistance table. Refer to Temperature Versus Resistance.
Repair Instructions
Perform the Diagnostic Repair Verification after completing the diagnostic procedure. Verification Tests
* Engine Coolant Temperature Sensor Replacement
* Refer to Programming and Relearning for ECM setup and programming. Programming and Relearning
