C0460
DTC C0460
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Initial Inspection and Diagnostic Overview
* Review Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC C0460 00
Steering Position Signal
DTC C0460 42
Steering Position Signal Initialization Not Accomplished
DTC C0460 4B
Steering Position Signal Calibration Not Accomplished
DTC C0460 5A
Steering Position Signal Not Plausible
DTC C0460 71
Steering Position Signal Internal Failure
DTC C0460 72
Steering Position Signal Rolling Count Invalid

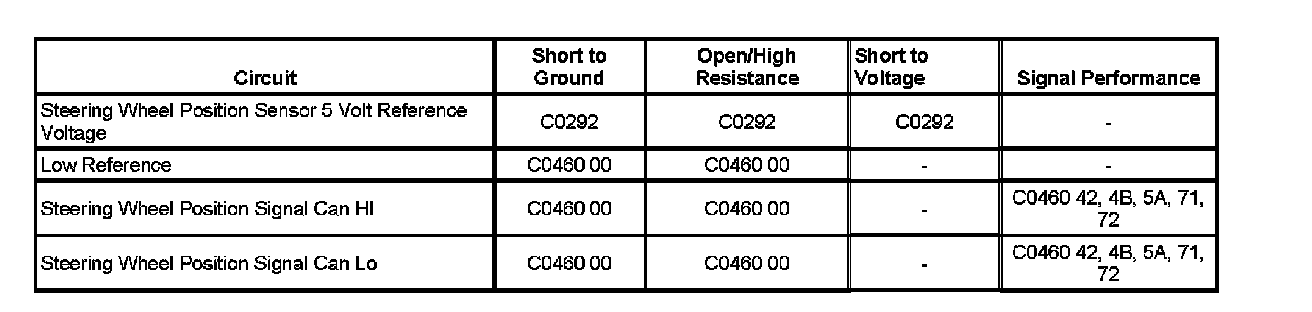

Diagnostic Fault Information
Circuit/System Description
The steering angle sensor shares a 5-volt ignition supply voltage with the electronic brake control module (EBCM) and the yaw-rate/lateral sensor. The EBCM applies a ground to the steering angle sensor low reference circuit, which is shared with the yaw-rate/lateral sensor.
The steering angle sensor provides a serial data signal output to the EBCM that represents the steering wheel degree of rotation. The EBCM utilizes this signal to calculate the driver intended driving direction.
Conditions for Running the DTC
* The ignition is ON.
* Ignition voltage is greater than 9.5 volts.
Conditions for Setting the DTC
* Steering angle sensor is reporting an internal electronic failure.
* Steering angle sensor has not been initialized.
* Steering angle sensor offset is greater than 15 degrees.
Action Taken When the DTC Sets
* Vehicle stability enhancement system (VSES) are disabled.
* The VSES indicator turns ON
* The driver indicator turns ON
Conditions for Clearing the DTC
* The condition for the DTC is no longer present and the DTC is cleared with a scan tool.
* The EBCM automatically clears the history DTC when a current DTC is not detected in 100 consecutive drive cycles.
Diagnostic Aids
* If DTC C0292 is set, diagnose that DTC first.
* If the steering wheel position sensor is disconnected, DTCs will set and the EBCM will not provide 5 volt reference.
* A poor ground connection for the EBCM may cause this DTC to set.
Reference Information
Schematic Reference
Antilock Brake System Schematics
Connector End View Reference
Antilock Brake System Connector End Views
Description and Operation
ABS Description and Operation
Electrical Information Reference
* Circuit Testing
* Connector Repairs
* Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs
Scan Tool Reference
Scan Tool Data List for EBCM
Circuit/System Verification
1. Position the steering wheel to the straight-ahead, centered, position.
2. Install a scan tool, ignition ON, engine OFF, and view SWPS signal A and SWPS signal B One of the signals should be approximately 2.5 volts and the other should be approximately 0 volts.
3. As the steering wheel is turned, each signal should travel smoothly between 0 and 5 volts.
Circuit/System Testing
1. Ignition OFF, disconnect the steering wheel position sensor (SWPS) connector.
2. Test for less than 1 ohm of resistance between the low reference circuit and ground.
^ If greater than 1 ohm, test the low reference circuit and the EBCM ground circuit for an open or high resistance. If the circuits test normal, replace the EBCM.
3. Test the SWPS sensor CAN HI and LO circuit for a short to voltage, short to ground, an open or high resistance.
^ If the yaw SWPS CAN HI and LO circuits did not test normal repair the circuit.
^ If all the circuits test normal, replace the SWPS, and with a scan tool perform the steering angle sensor centering procedure.
4. Perform the diagnostic test drive.
^ If the DTC set as a current DTC, replace the EBCM.
^ If the DTC did not set as a current DTC, see Diagnostic Aids.
Repair Instructions
Important: Perform the Diagnostic Repair Verification after completing the diagnostic procedure. Verification Tests
* Steering Angle Sensor Centering
* Diagnostic Test Drive
* Refer To Programing and Relearning Programming and Relearning
