Transmission Mount Bracket Replacement - Rear

Transmission Mount Bracket Replacement - Rear

Removal Procedure

1. Remove the rear transaxle mount.




2. Remove the rear transaxle mount mounting bracket to transaxle bolts.
3. Remove the rear transaxle mount mounting bracket from the transaxle.

Installation Procedure

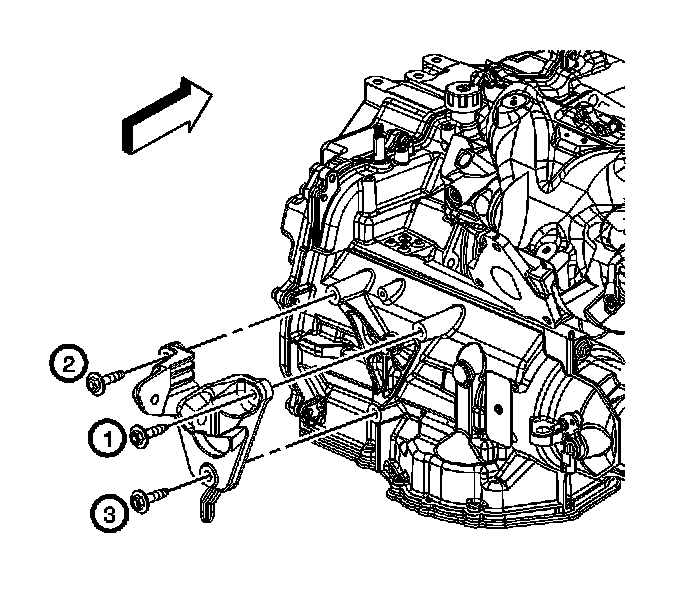

Important: The transaxle mount mounting bracket bolts must be torqued in a mandatory sequence as shown.




1. Install the rear transaxle mount mounting bracket to transaxle.

Notice: Refer to Fastener Notice.

2. Install the transaxle mount mounting bracket bolts.

Tighten the transaxle mount mounting bracket bolts to 50 N.m (37 lb ft).

3. Install the rear transaxle mount.
