Floor Shift Control Knob Replacement

Floor Shift Control Knob Replacement

Removal Procedure

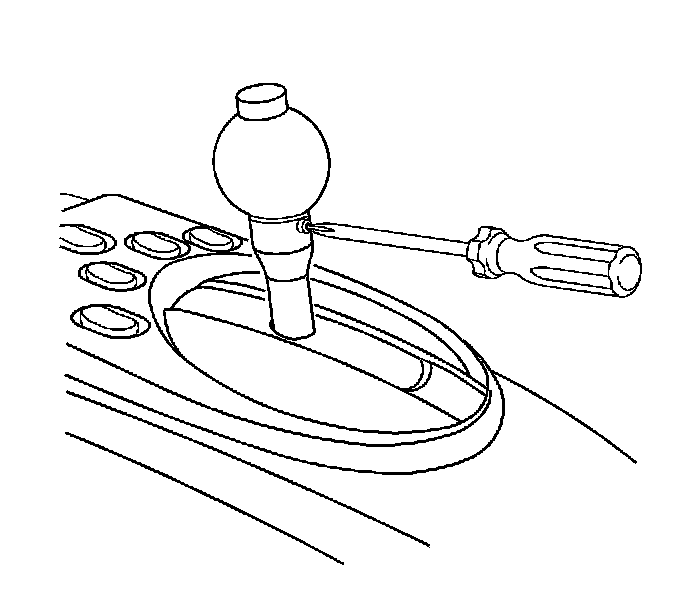

1. Loosen the set screw.
2. Pull up to remove the knob from the transmission control.

Installation Procedure




1. Install the knob onto the transmission control.

Notice: Refer to Fastener Notice.

2. Tighten control knob set screw.

Tighten the control knob set screw to 2.5 N.m (22 lb in).
