Shift Lever Does Not Move with Brake Pedal Depressed
Shift Lever Does Not Move with Brake Pedal Depressed
Shift Lever Does Not Move with Brake Pedal Depressed

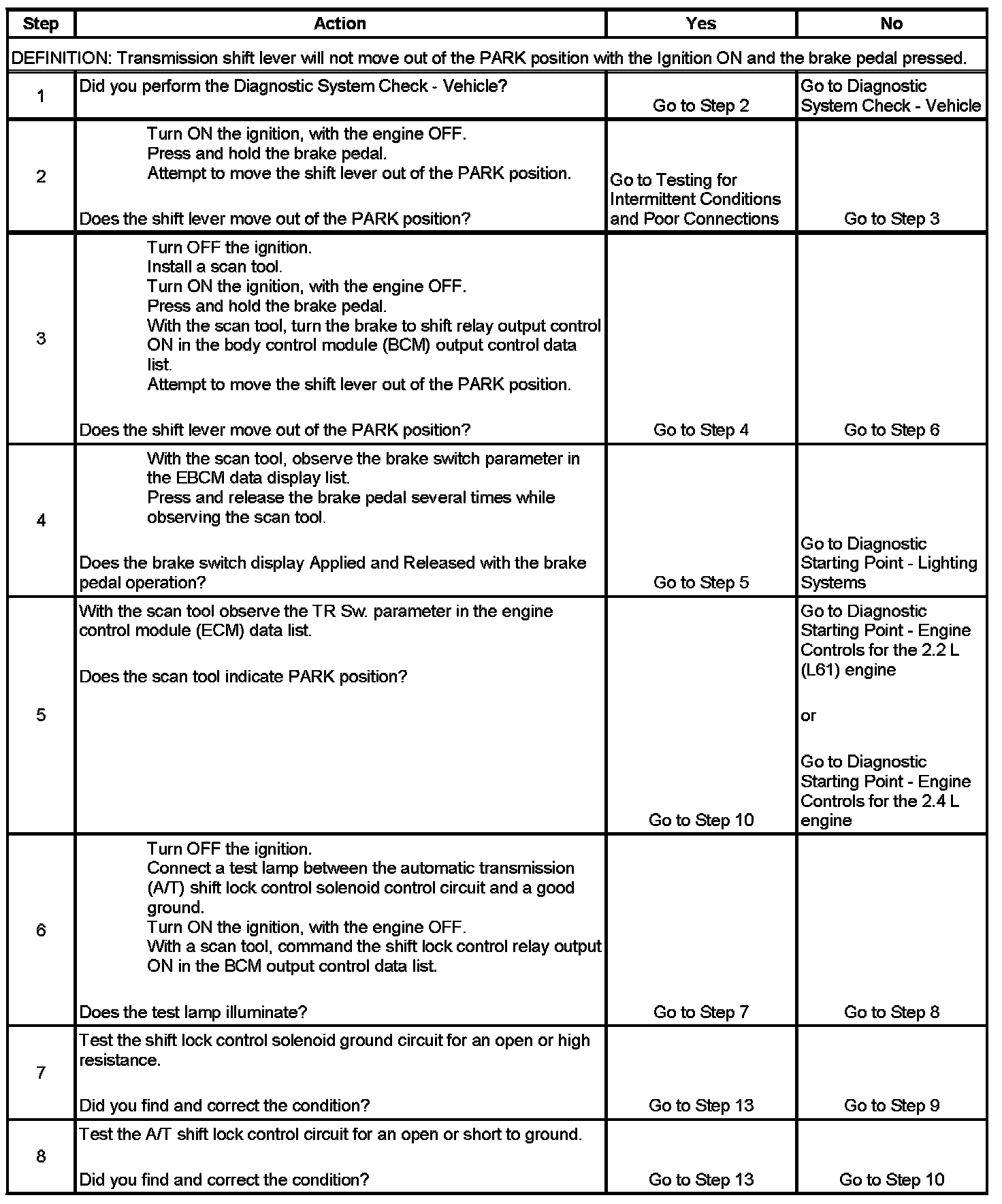

Step 1 - Step 8:

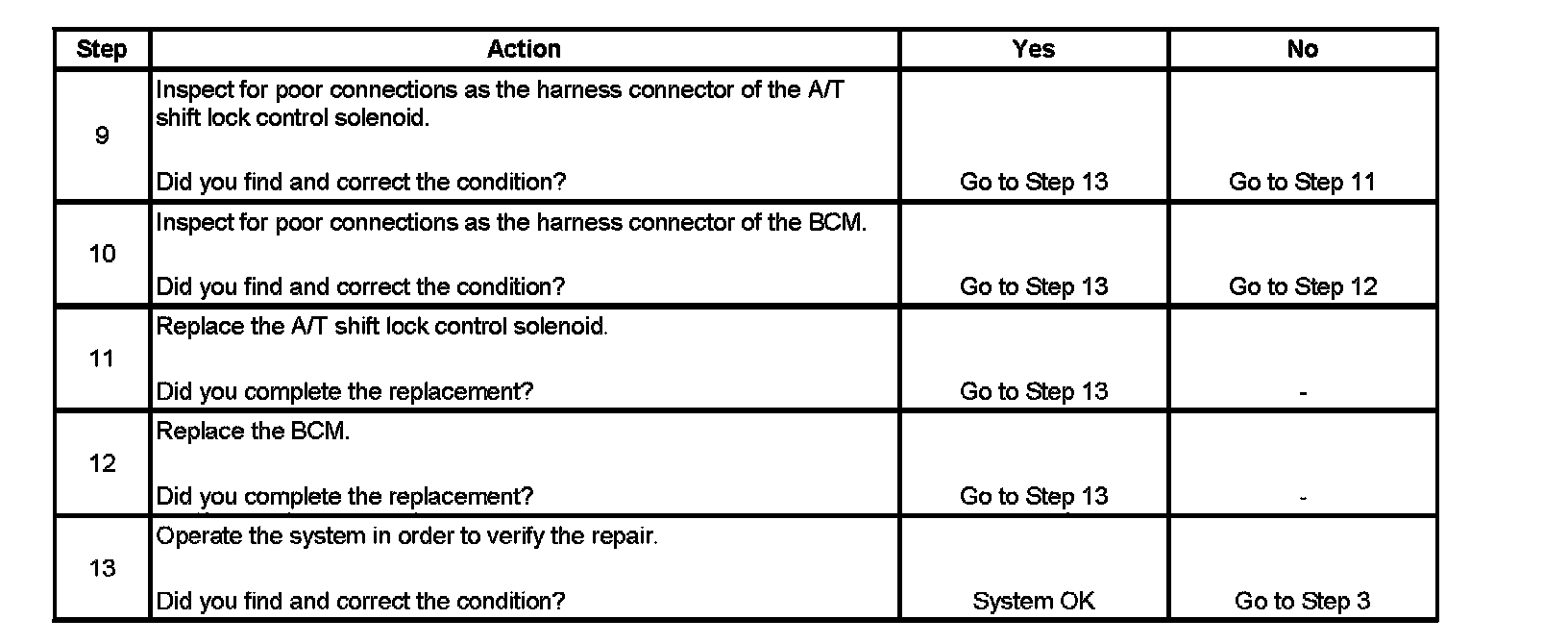

Step 9 - Step 13:
