Home >> Saturn >> 2007 >> ION L4-2.0L SC >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Testing and Inspection >> Component Tests and General Diagnostics >> Wheel Bearings Diagnosis

Wheel Bearings Diagnosis

Wheel Bearings Diagnosis

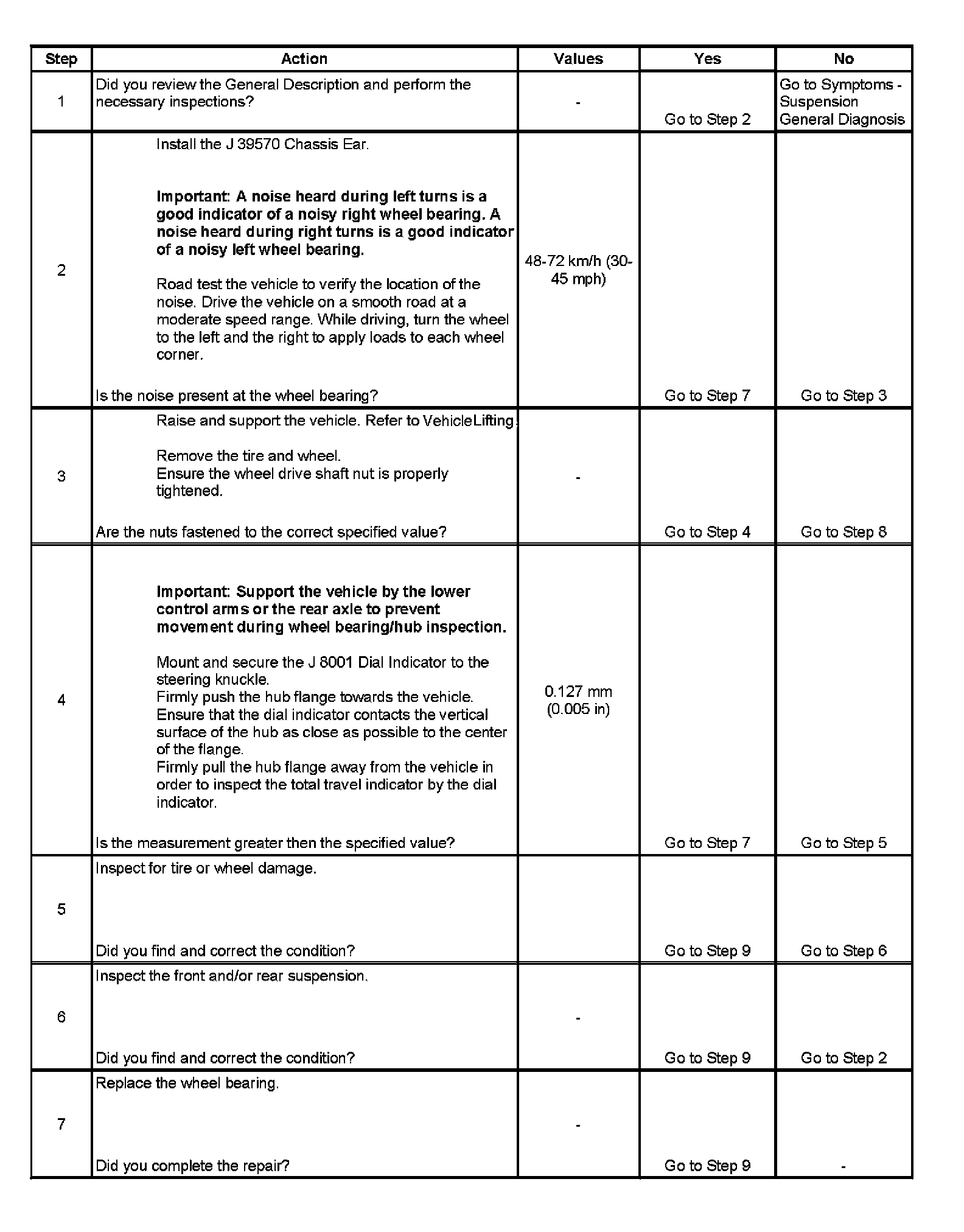

Step 1 - Step 7:

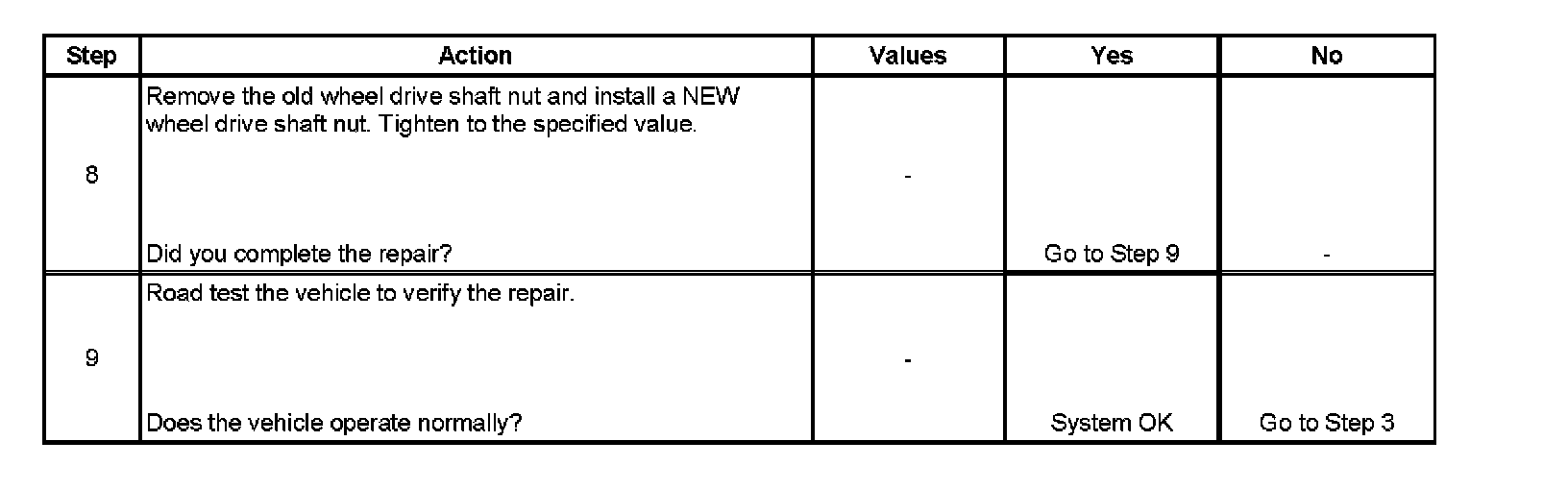

Step 8 - Step 9:
