Home >> Saturn >> 2007 >> ION L4-2.0L SC >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Starter Solenoid Does Not Click

Starter Solenoid Does Not Click



Starter Solenoid Does Not Click

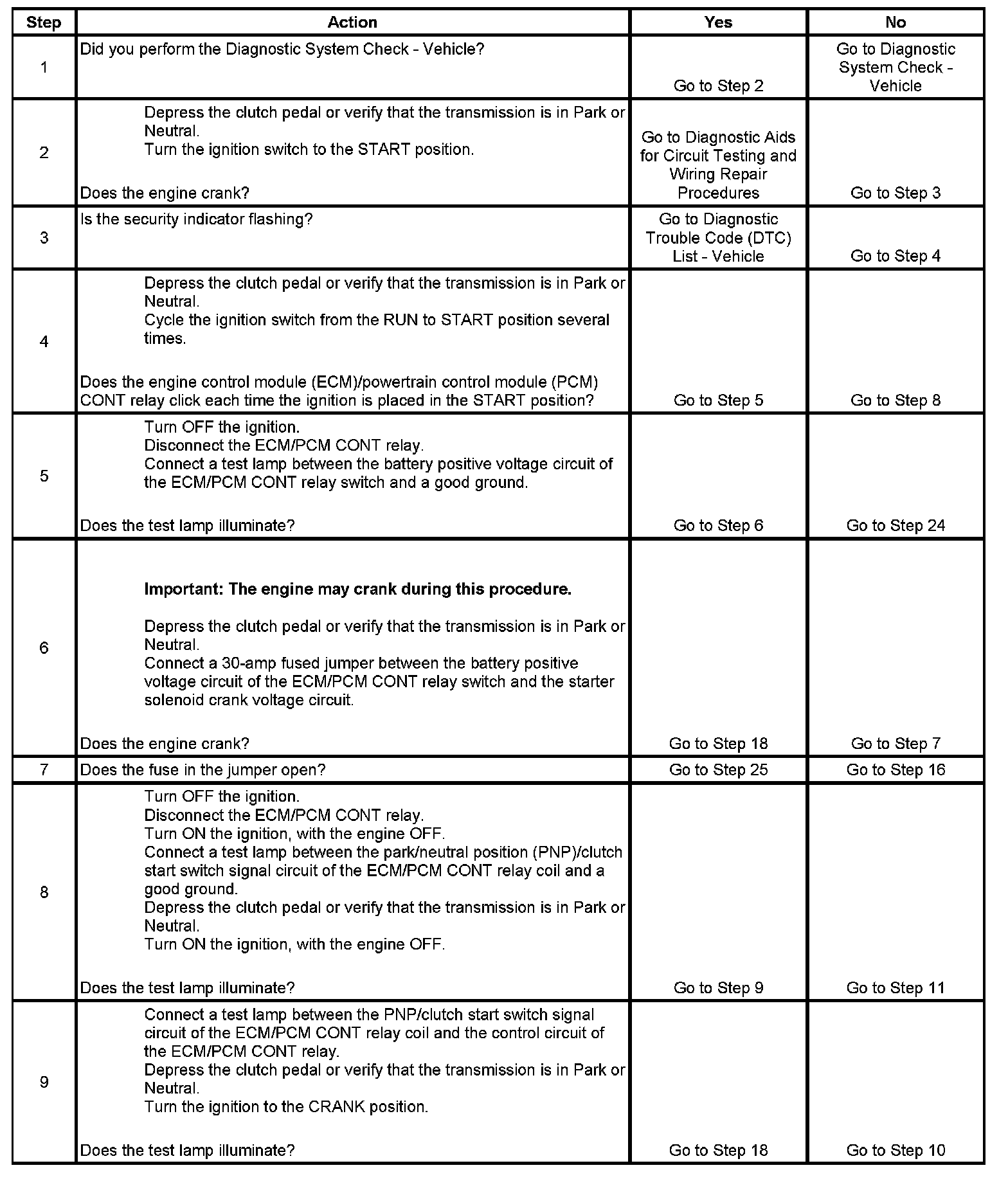

Step 1 - Step 9:

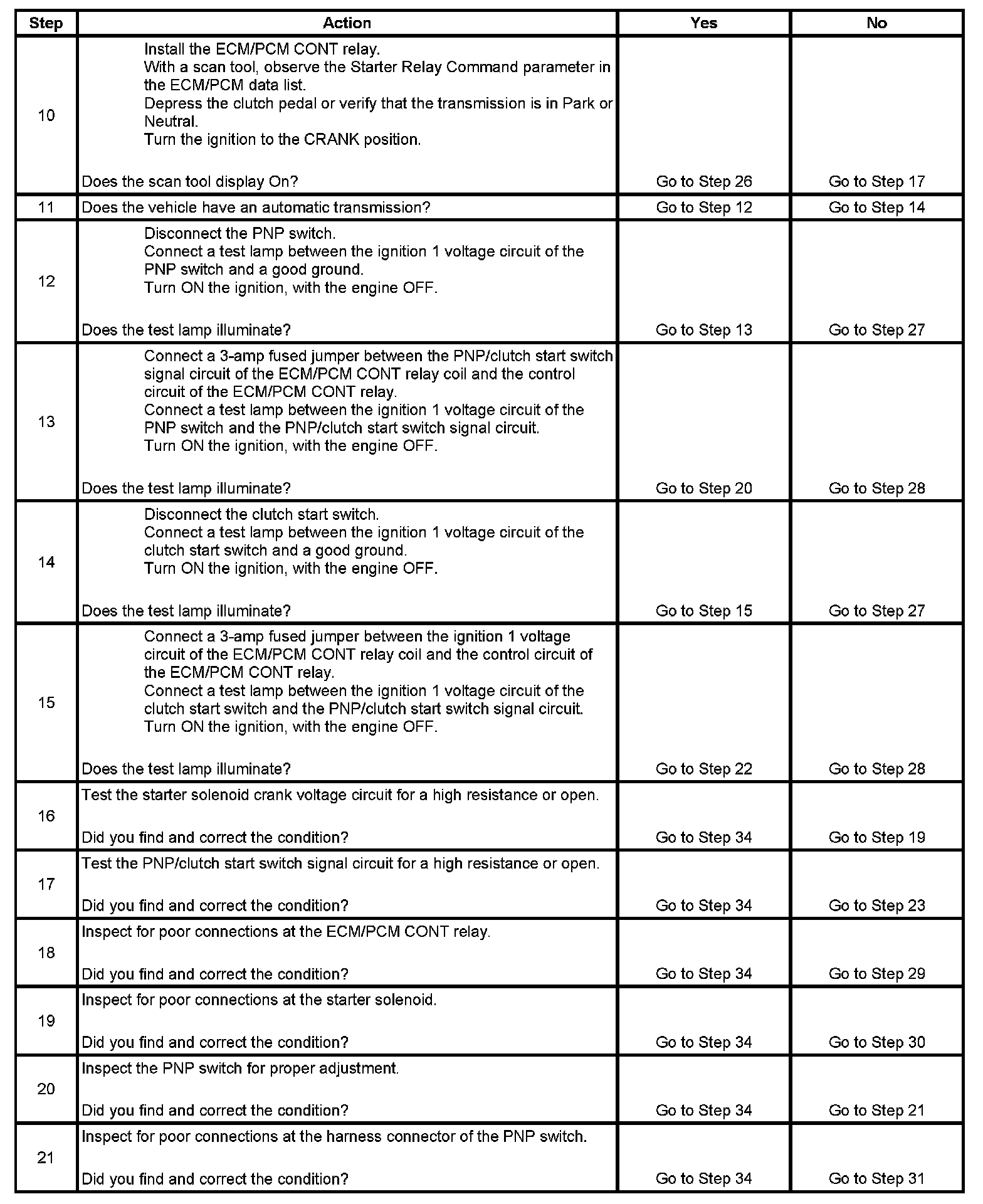

Step 10 - Step 21:

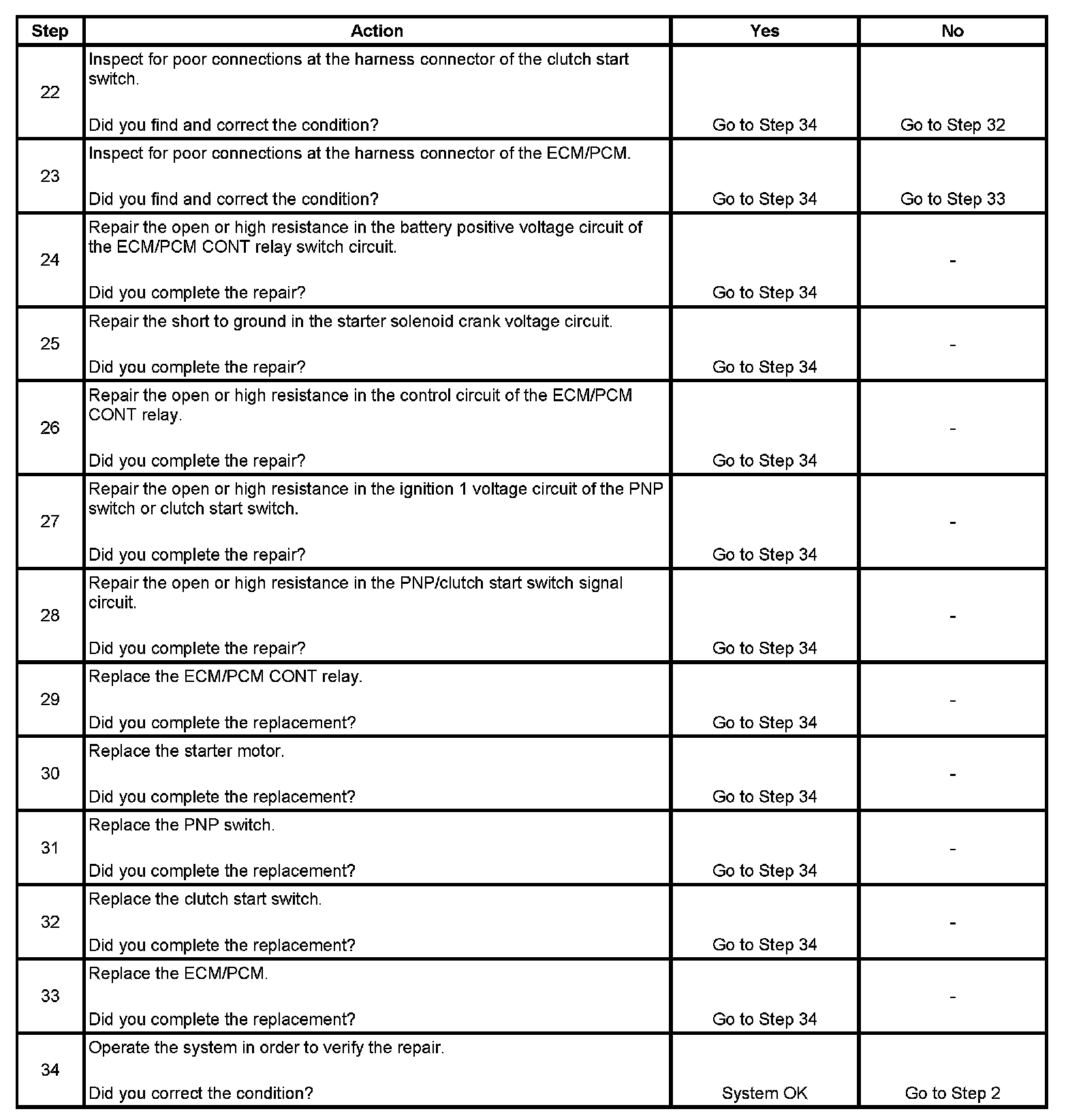

Step 22 - Step 34:
