Home >> Saturn >> 2007 >> ION L4-2.0L SC >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Starter Solenoid Clicks, Engine Does Not Crank

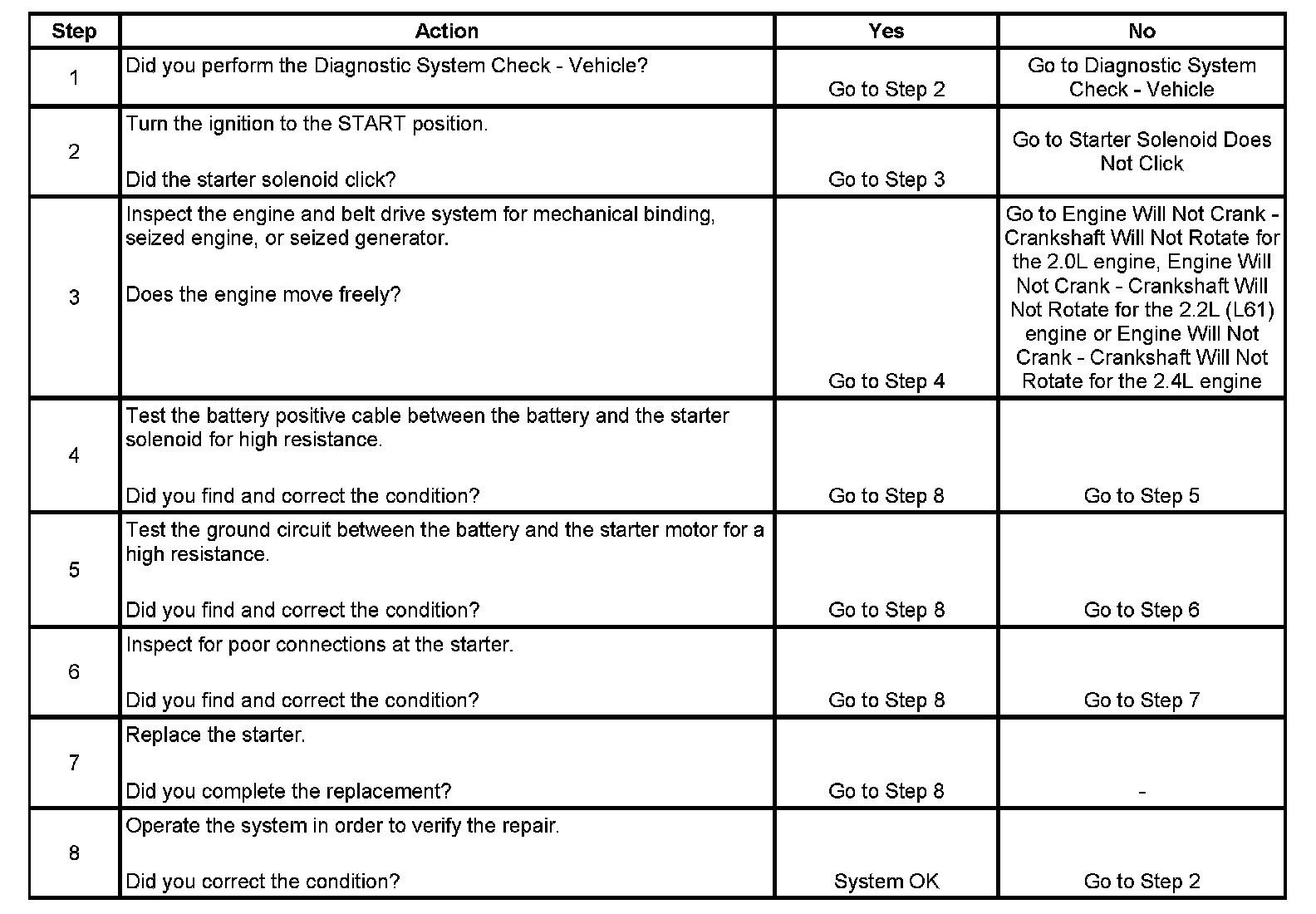

Starter Solenoid Clicks, Engine Does Not Crank



Starter Solenoid Clicks, Engine Does Not Crank

Step 1 - Step 8:
