G103

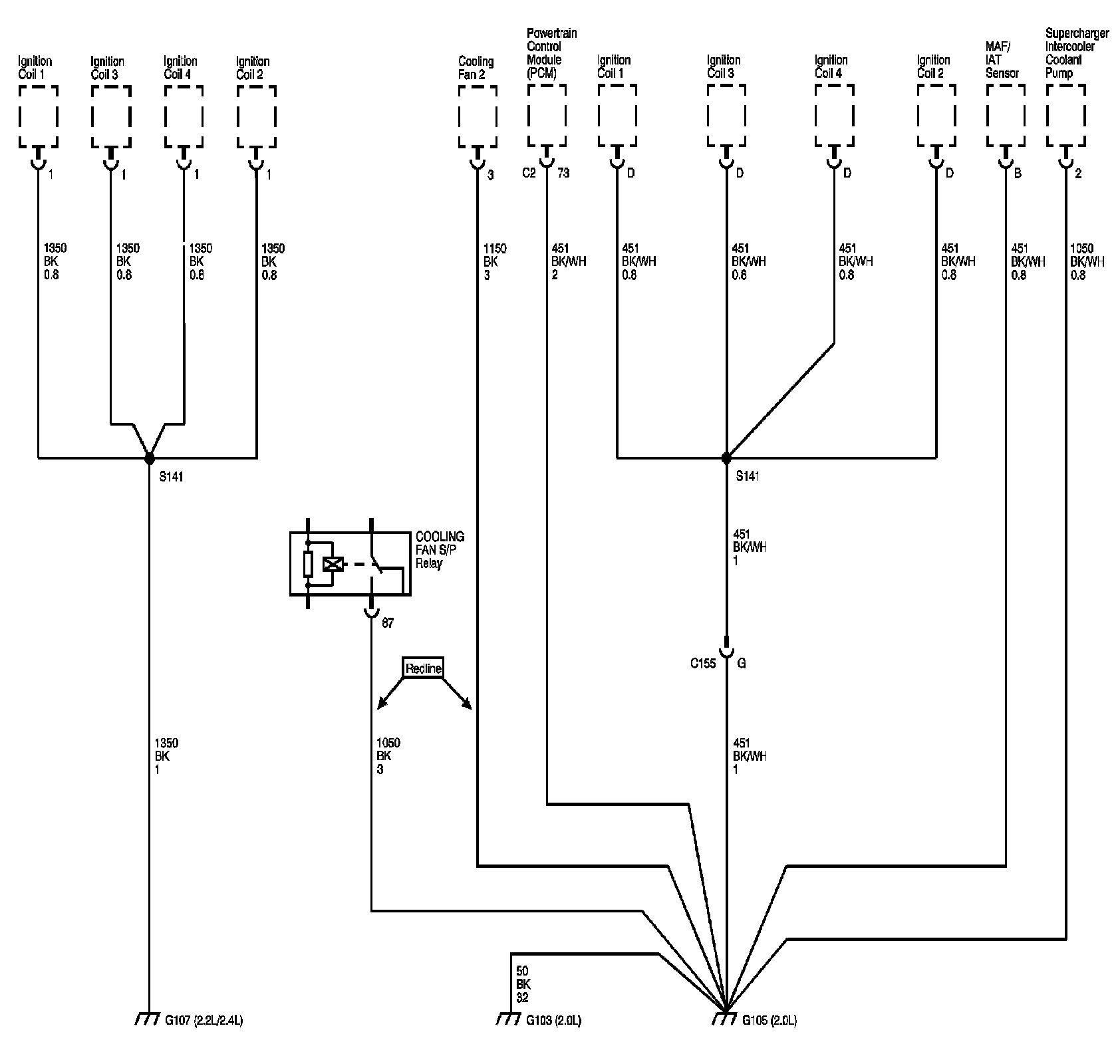

G103 and G105 - 2.0L, G107 - 2.2L / 2.4L






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
