Transmission Clearance Specifications



Transmission Clearance Specifications

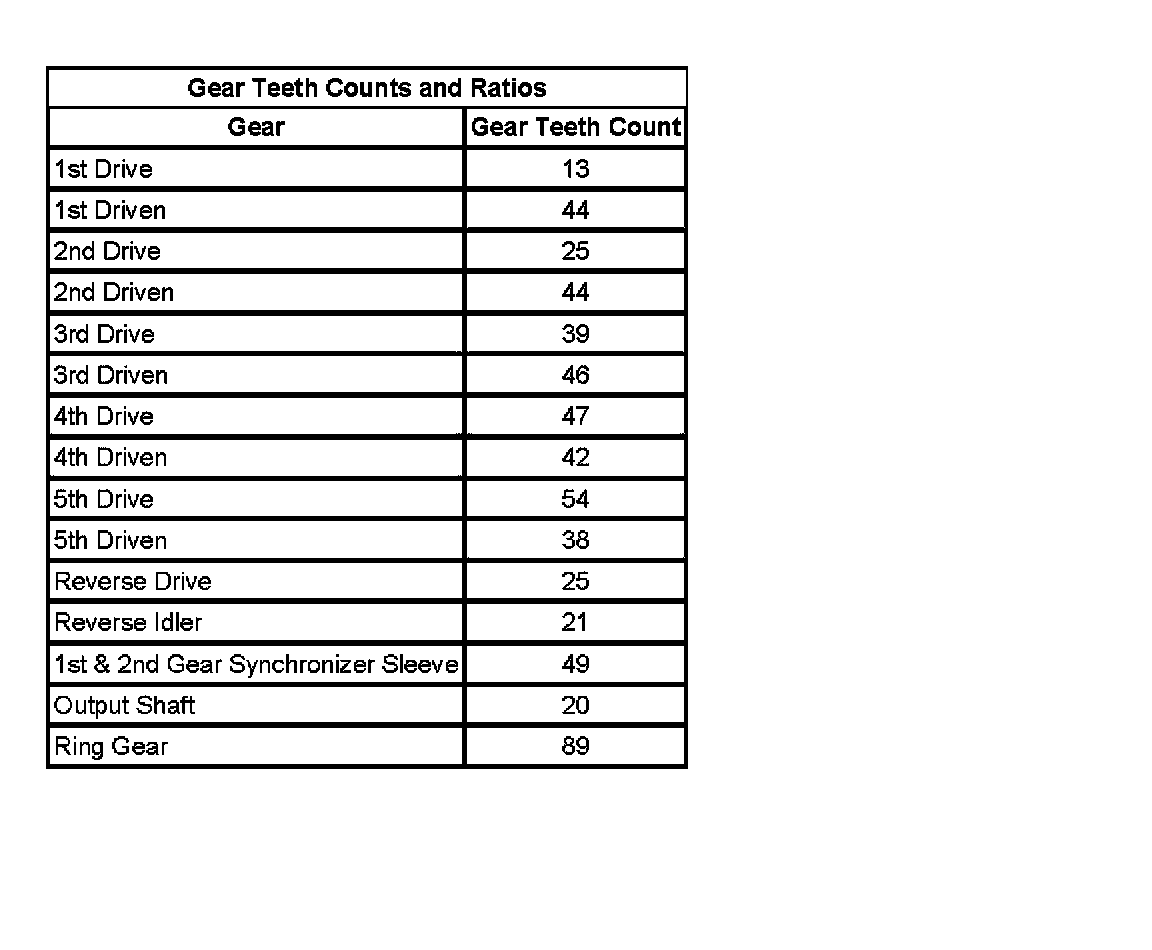

Transmission Clearance Specifications (Part 1):

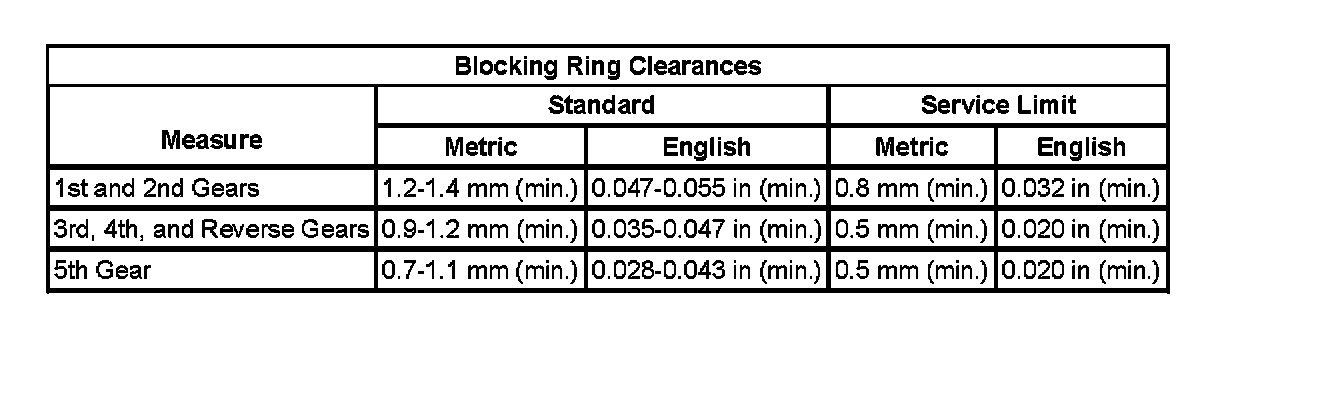

Transmission Clearance Specifications (Part 2):

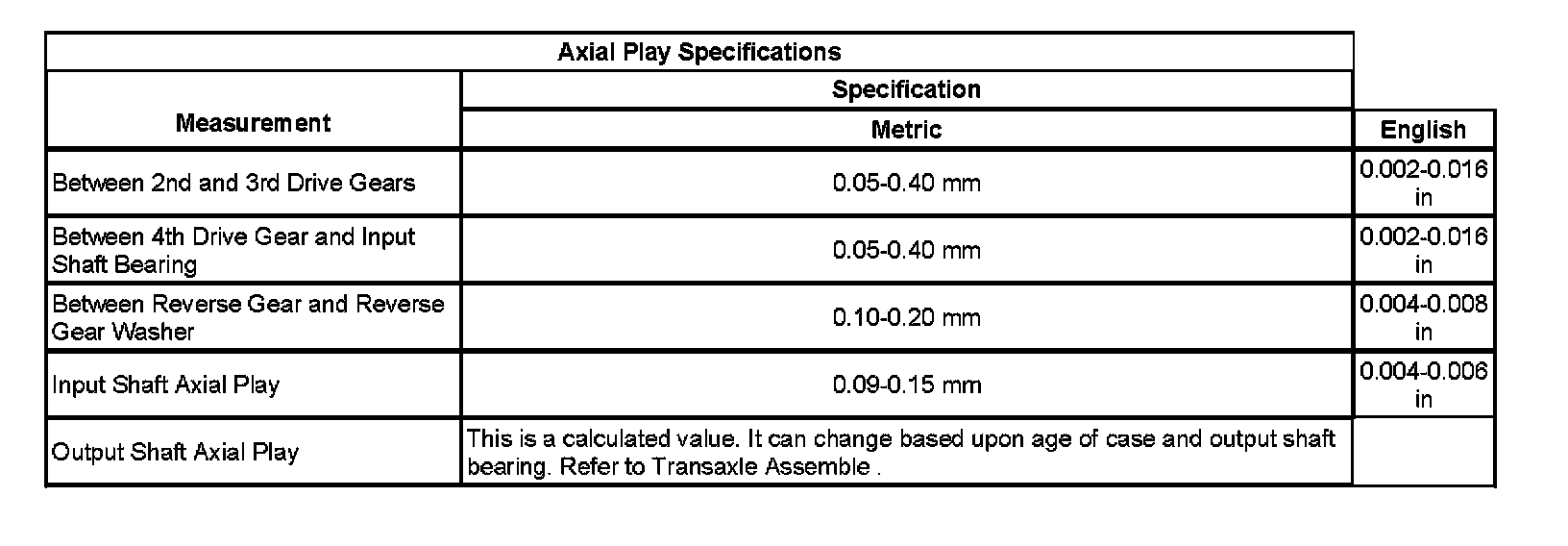

Transmission Clearance Specifications (Part 3):
