Seat Belt Height Adjuster Replacement - Front

Seat Belt Height Adjuster Replacement - Front

Removal Procedure




1. Remove the center pillar upper trim panel.

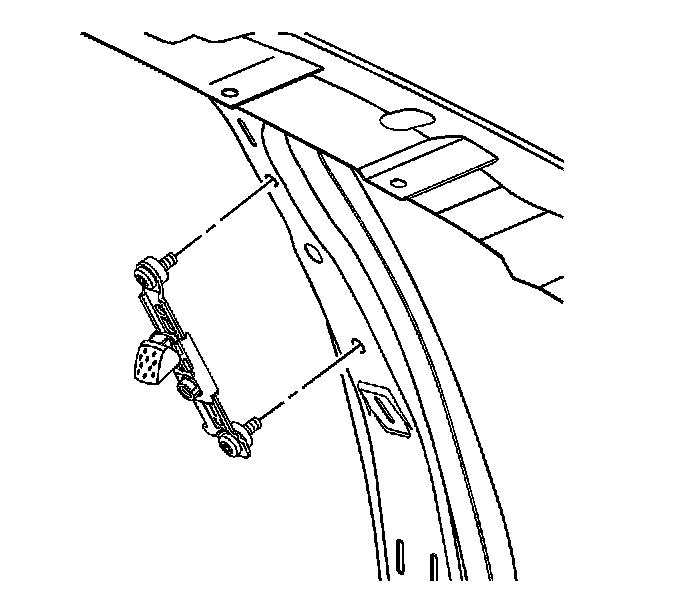

2. Remove the height adjuster bolts.
3. Remove the height adjuster from the vehicle.

Installation Procedure




1. Install the height adjuster to the vehicle.

Notice: Refer to Fastener Notice.

2. Install the height adjuster bolts to the front seat belt.

Tighten the bolts to 45 N.m (33 lb ft).

3. Install the center pillar upper trim panel.
