Bezel Replacement - Child Restraint Tether Anchor

Bezel Replacement - Child Restraint Tether Anchor

Removal Procedure




1. Remove the rear window trim.

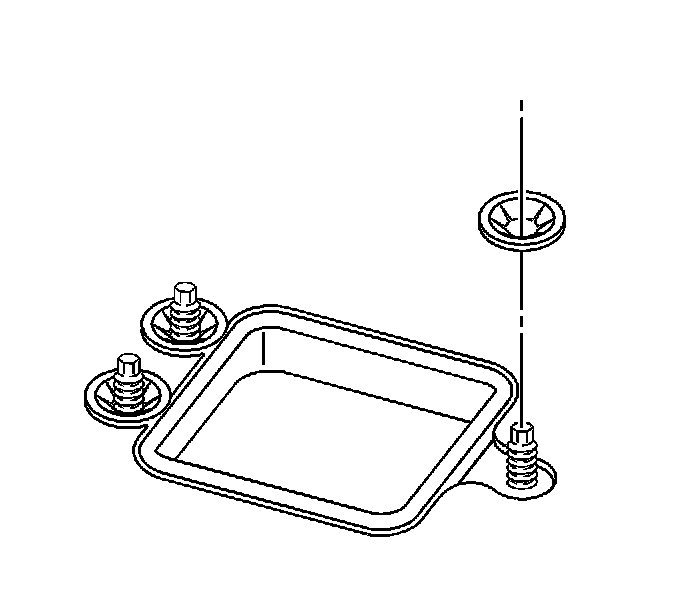

2. Remove the tether anchor bezel fasteners.

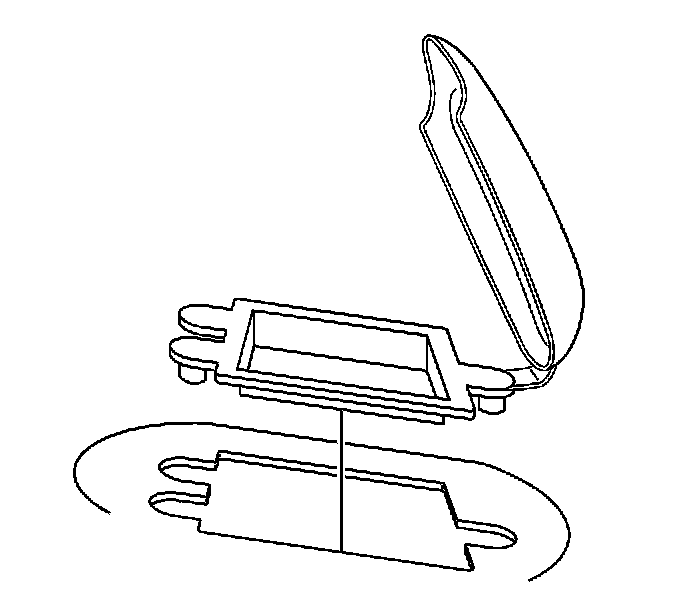

3. Remove the anchor bezel for the child restraint tether from the rear window trim.

Installation Procedure




1. Install the tether anchor bezel to the rear window trim.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the anchor bezel fasteners.

Tighten the fasteners to 1.4 N.m (12 lb in).




3. Install the rear window trim.
4. Close the tether anchor bezel.
