Boost Solenoid: Service and Repair

Boost Control Solenoid Replacement

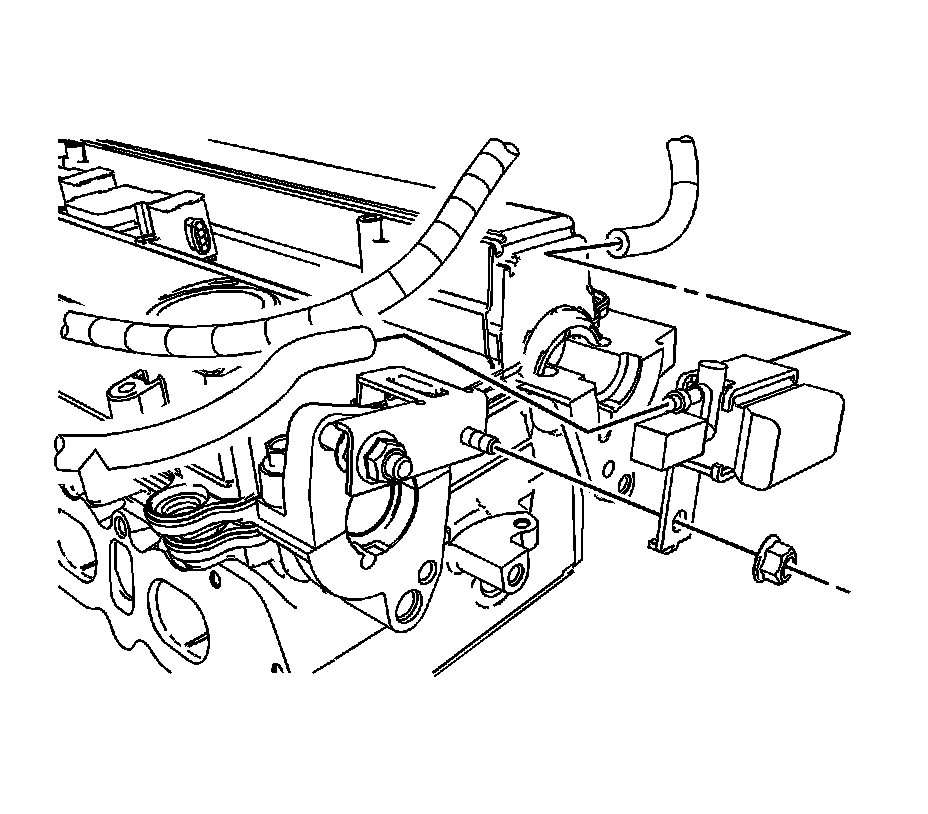

Removal Procedure




1. Disconnect the boost control solenoid vacuum hoses.
2. Disconnect the boost control solenoid connector.
3. Remove the boost control solenoid retaining nut.
4. Remove the boost control solenoid.

Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the boost control solenoid and nut.

Tighten the nut to 10 N.m (89 lb in).

2. Connect the boost control solenoid connector.
