Ignition Key Cannot Be Removed From the Ignition Lock Cylinder
Ignition Key Cannot Be Removed From the Ignition Lock Cylinder
Ignition
Key
Cannot Be Removed from the Ignition Lock Cylinder

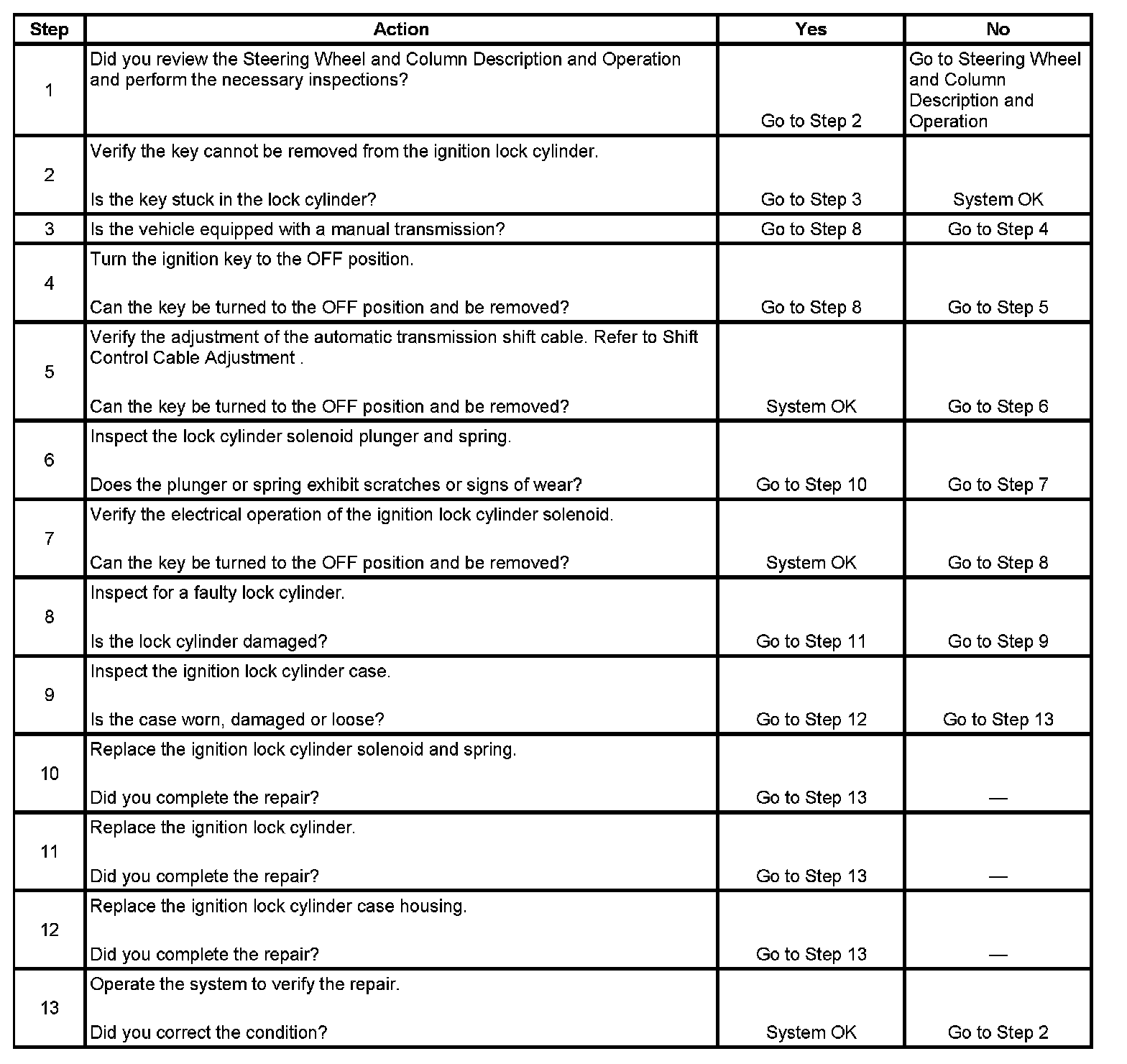

Test
Step 1 - Step 13:
