Home >> Saturn >> 2007 >> ION L4-2.0L SC >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlamps Inoperative - High Beams

Headlamps Inoperative - High Beams

Headlamps Inoperative - High Beams

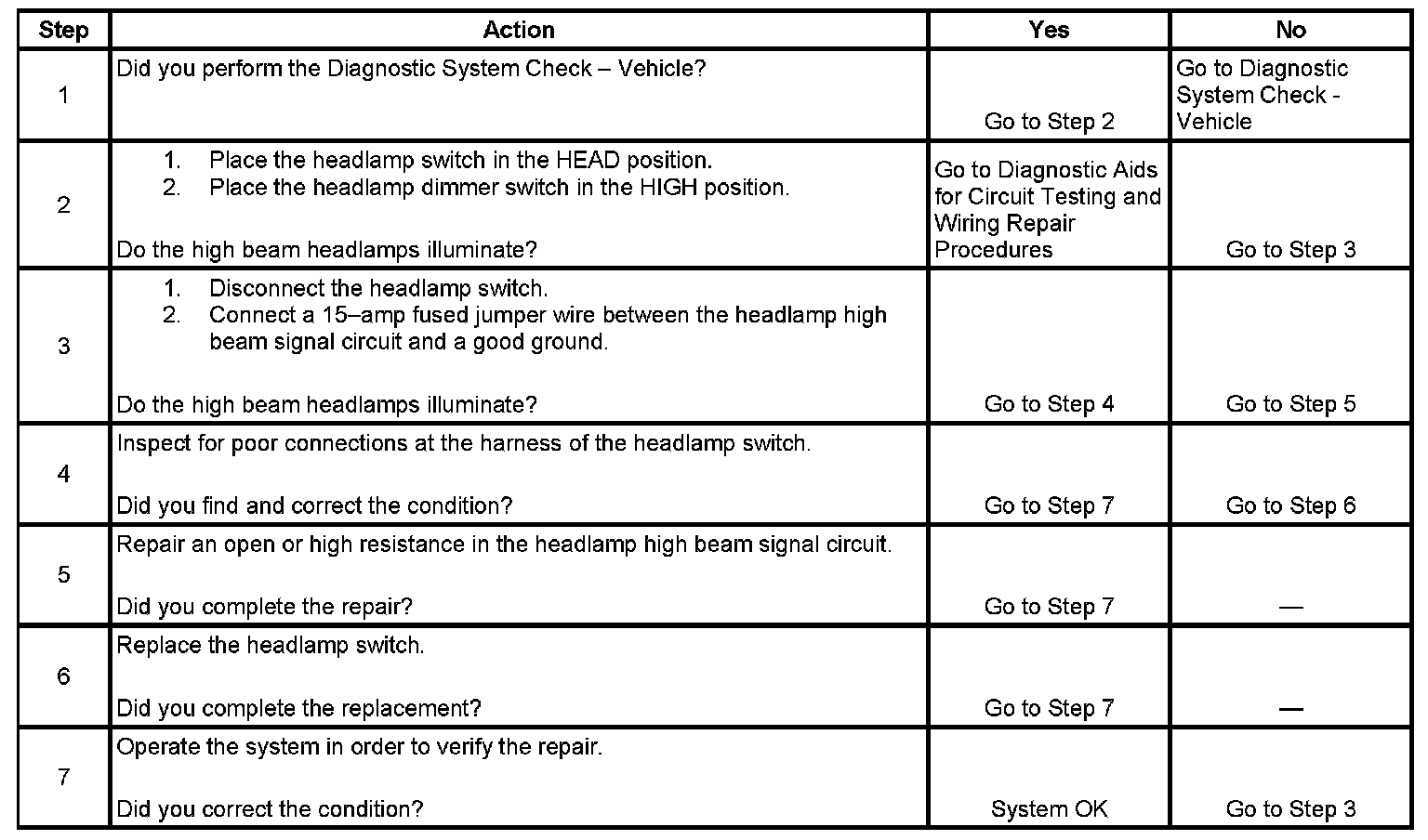

Test

Step 1 - Step 7:
