Home >> Saturn >> 2007 >> ION L4-2.0L SC >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlamps Inoperative - Flash to Pass

Headlamps Inoperative - Flash to Pass

Headlamps Inoperative - Flash to Pass

Test

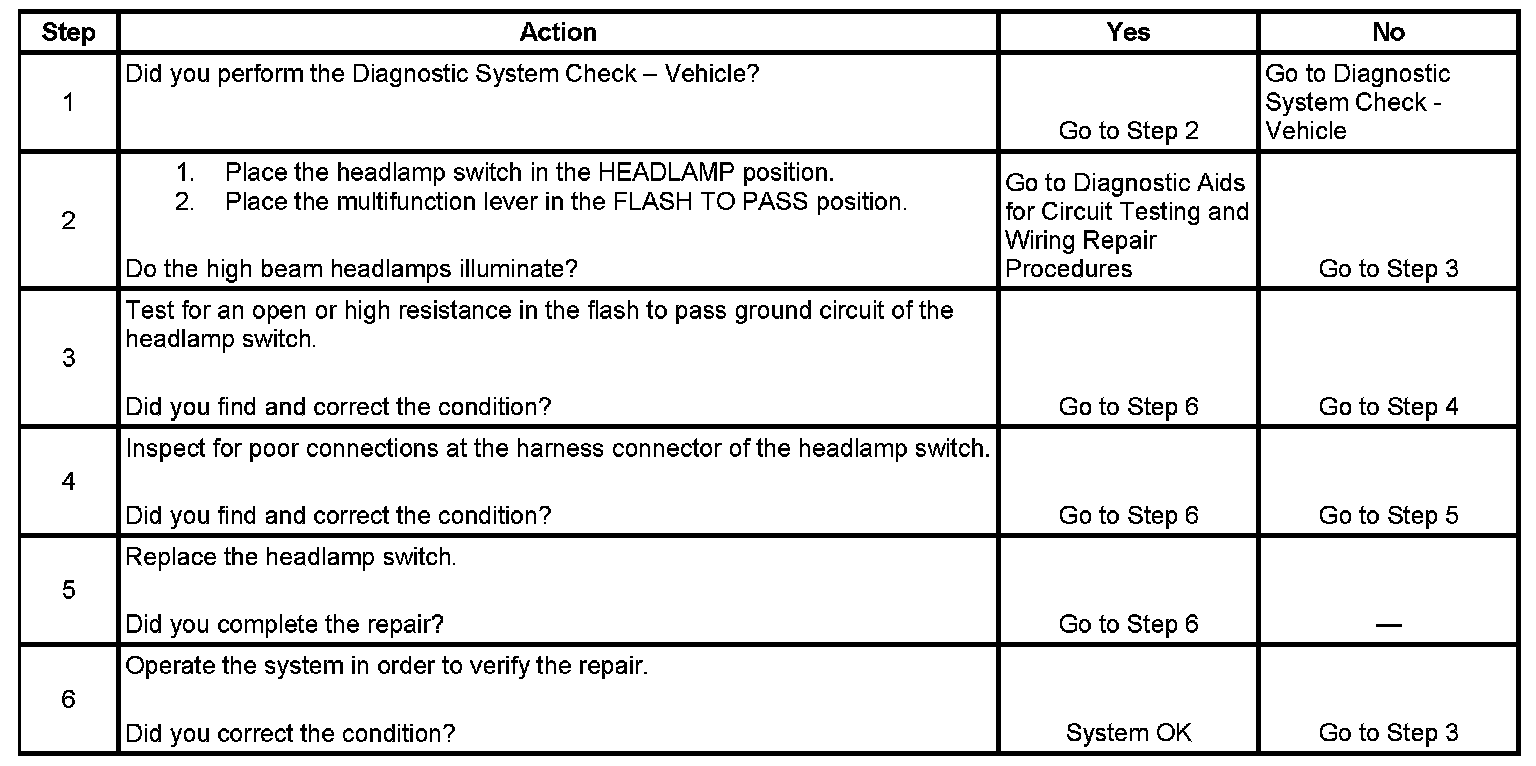

Step 1 - Step 6:
