Home >> Saturn >> 2007 >> ION L4-2.0L SC >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Fog Lamps Inoperative

Fog Lamps Inoperative



Fog Lamps Inoperative

Test

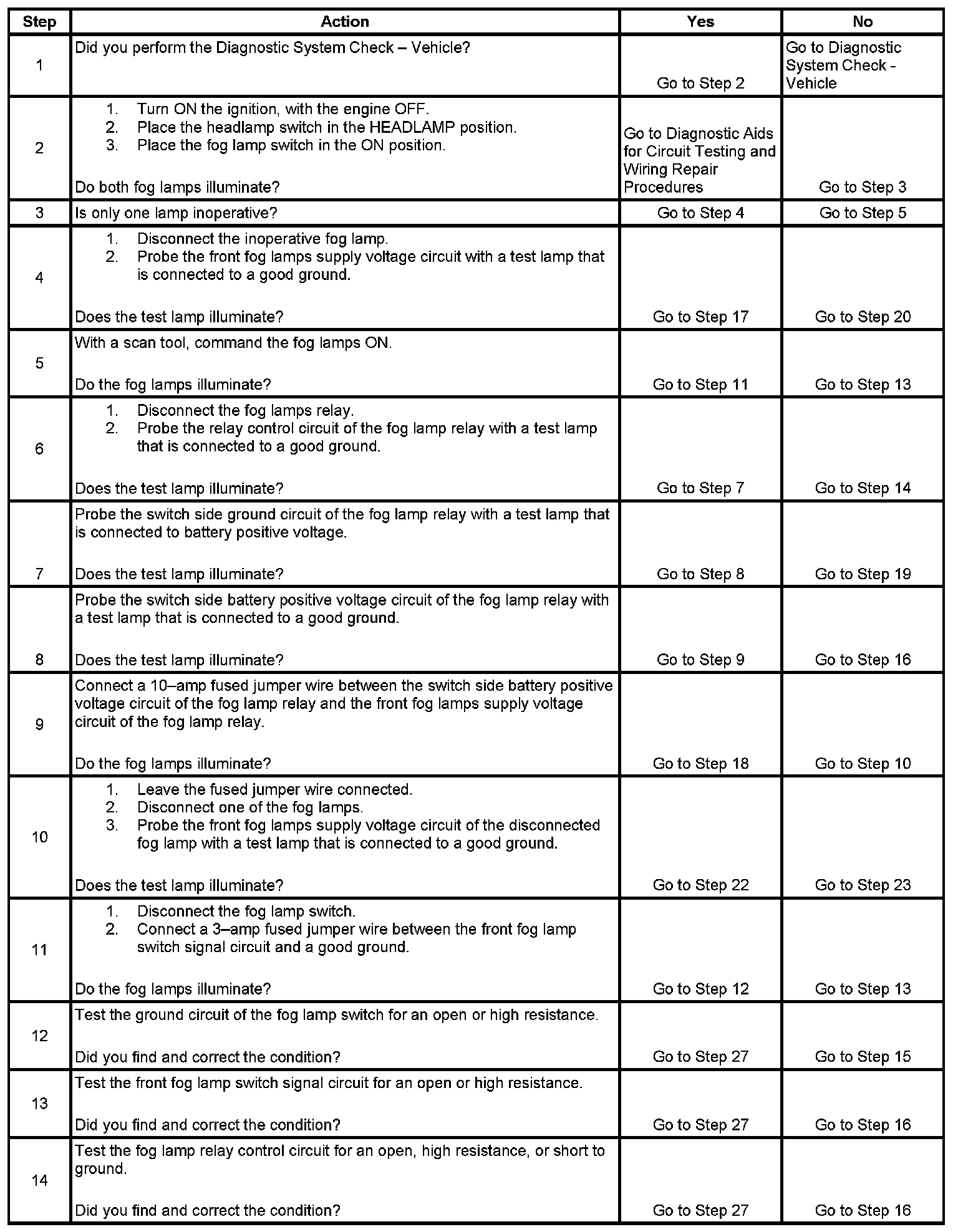

Step 1 - Step 14:

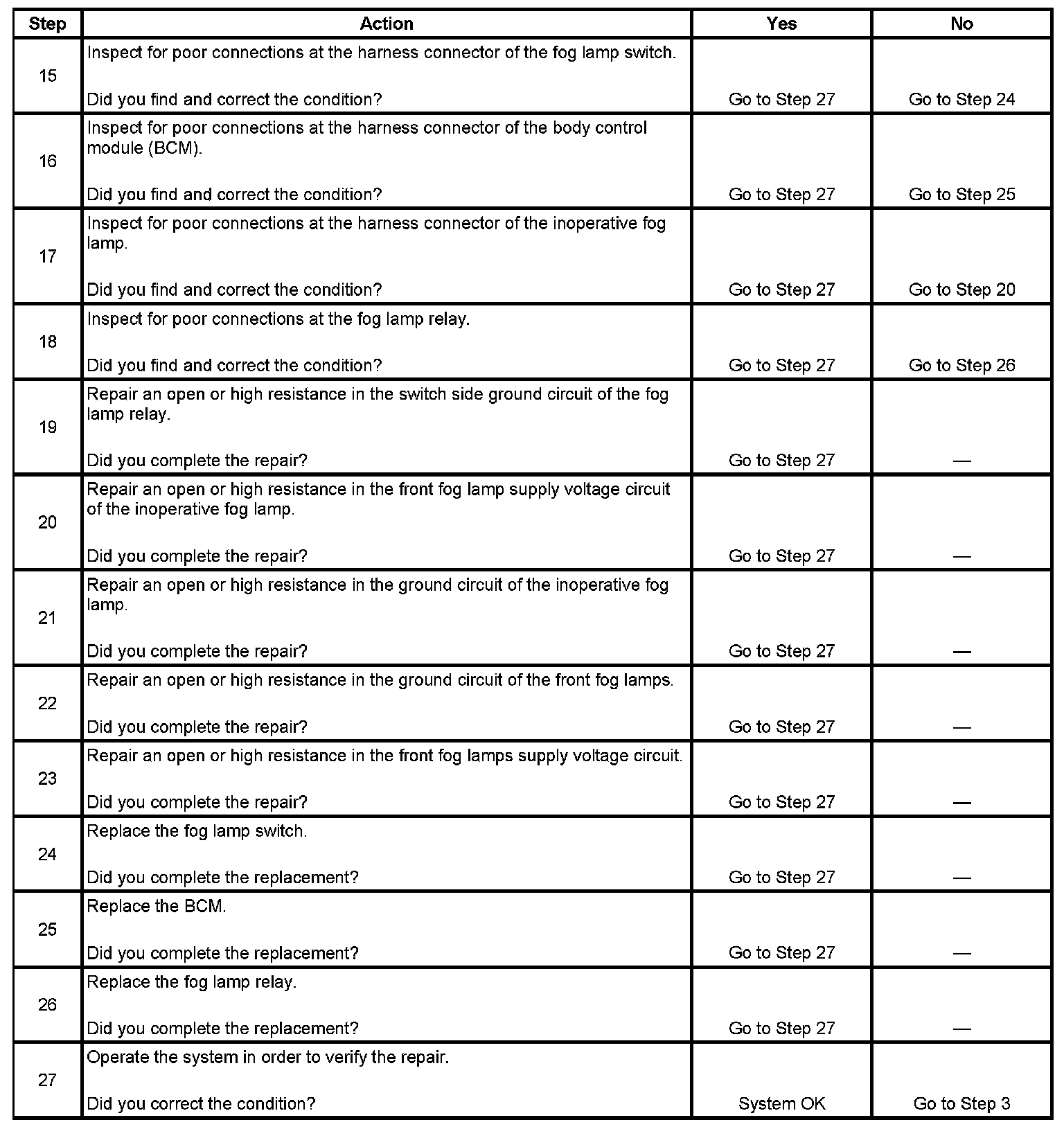

Step 15 - Step 27:
