Home >> Saturn >> 2007 >> ION L4-2.0L SC >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Courtesy Lamps Inoperative

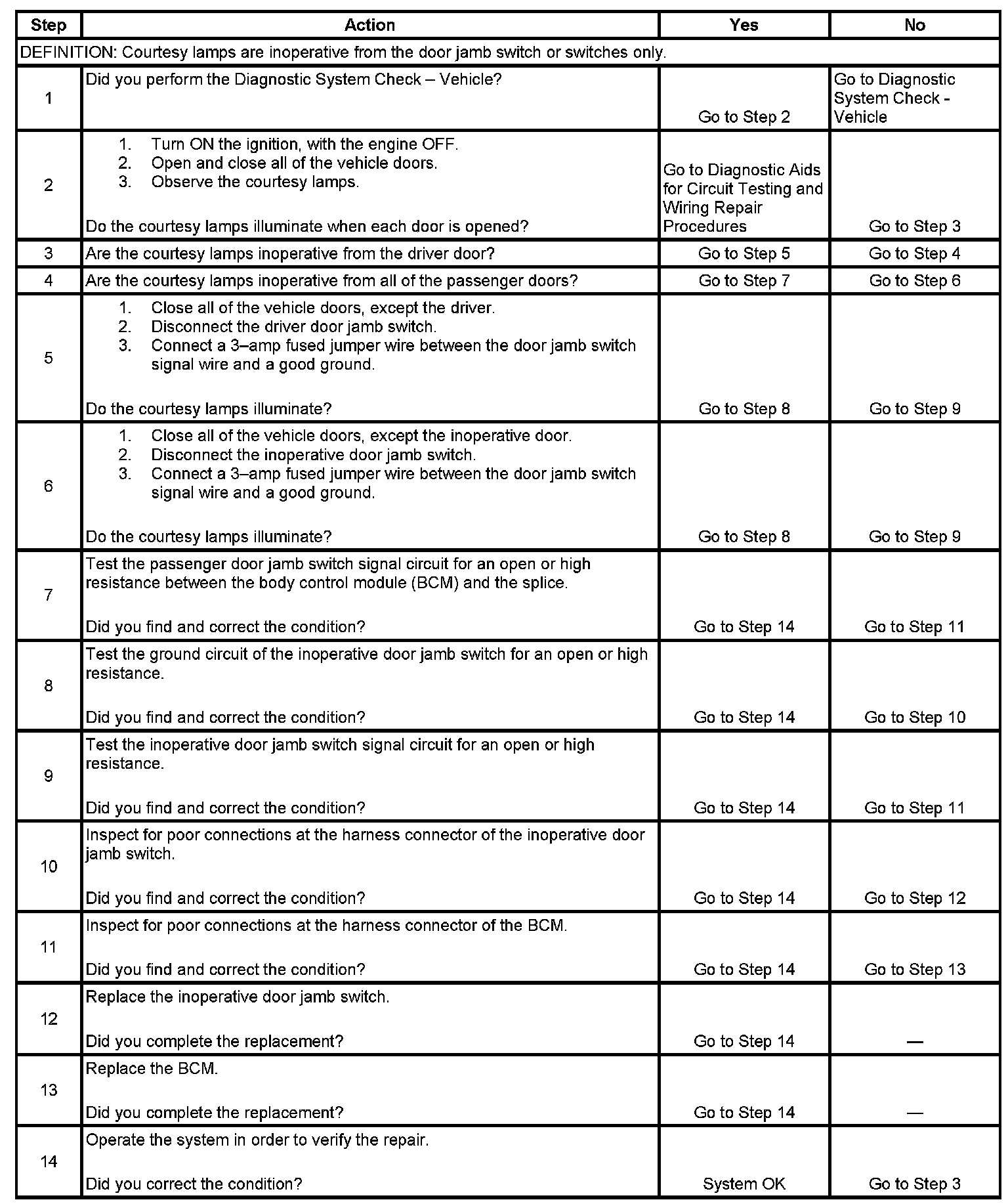

Courtesy Lamps Inoperative

Courtesy Lamps Inoperative

Test

Step 1 - Step 14:
