Home >> Saturn >> 2007 >> ION L4-2.0L SC >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Automatic Lamp Control Inoperative

Automatic Lamp Control Inoperative

Automatic Lamp Control Inoperative

Test

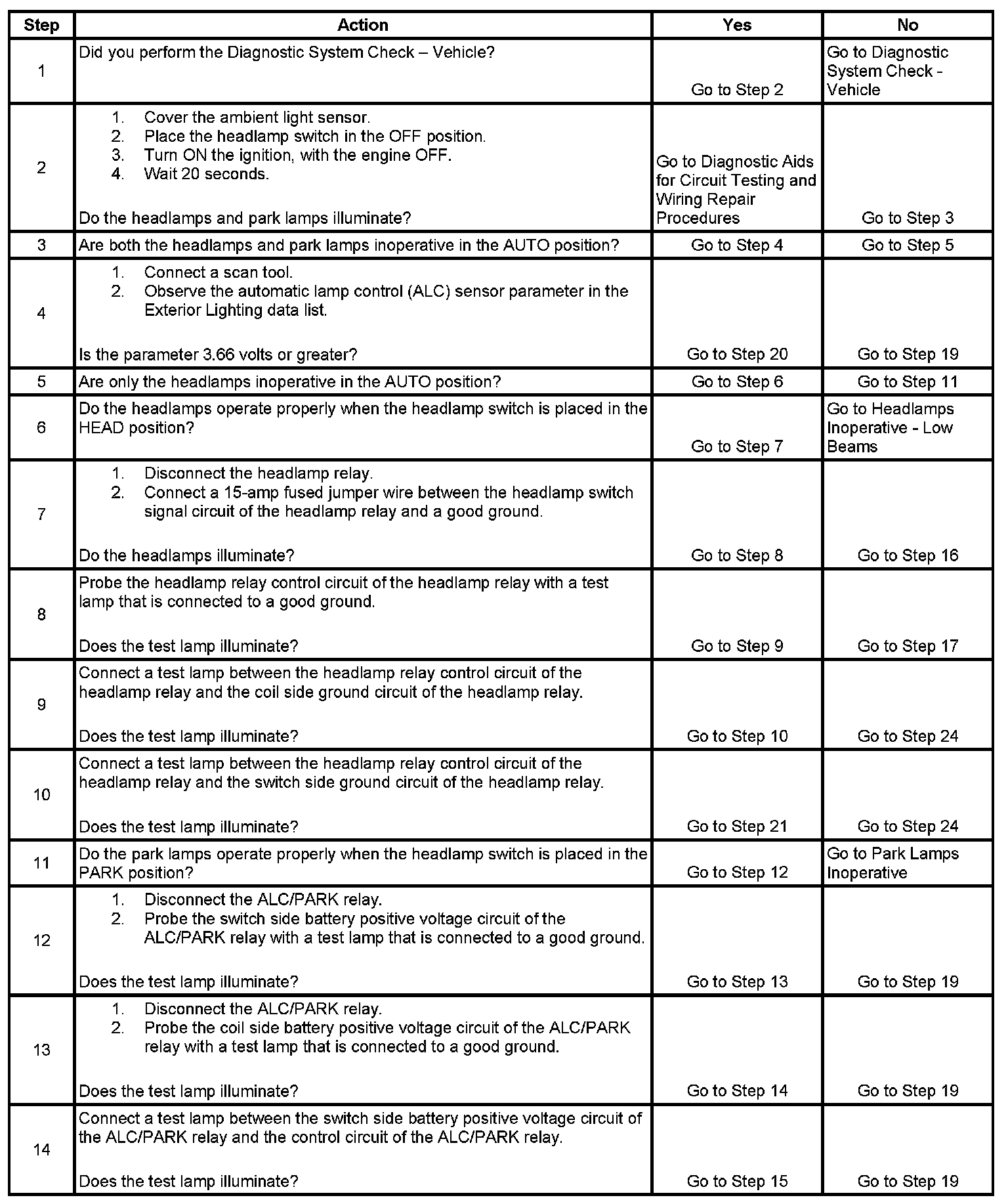

Step 1 - Step 14:

Step 15 - Step 28:

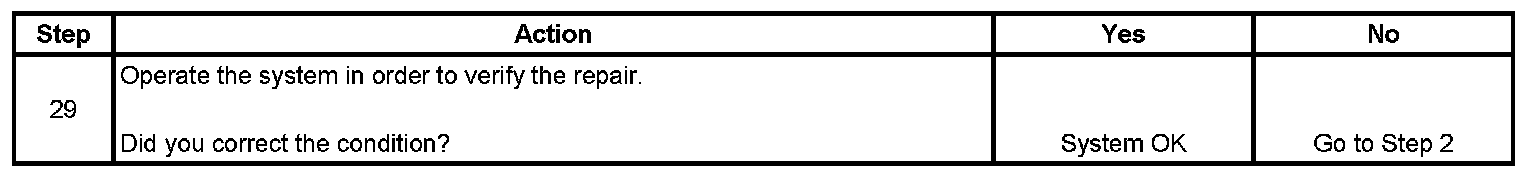

Step 29:
