Engine Oil Cooler Hose/Pipe Replacement

Engine Oil Cooler Hose/Pipe Replacement

Tools Required

SA9111E Hose Clamp Pliers

Removal Procedure

1. Place a drain pan under the driver side of the vehicle.
2. Remove the air cleaner intake duct.
3. Remove the underhood electrical center.
4. Using SA9111E, reposition the radiator outlet hose clamp at the engine.




5. Remove the radiator outlet hose from the engine.

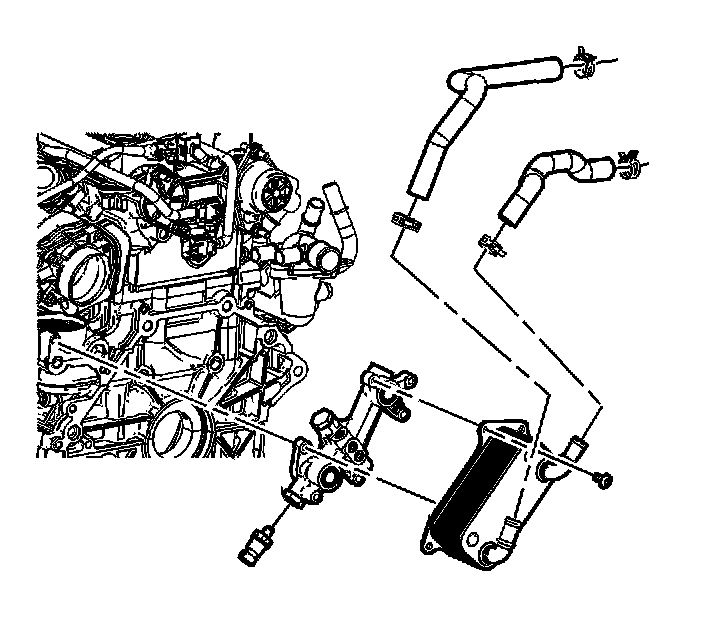

6. Remove the oil cooler hoses from the oil cooler.
7. Remove the oil cooler hoses from the thermostat housing.

Installation Procedure




1. Install the oil cooler hoses to the oil cooler.
2. Install the oil cooler hoses to the thermostat housing.




3. Install the radiator outlet hose to the engine.
4. Using SA9111E, reposition the radiator outlet hose clamp at the engine.
5. Install the underhood electrical center.
6. Install the air cleaner intake duct.
7. Remove the drain pan from under the vehicle.
8. Fill the engine oil to the proper level.
