Radiator Air Baffle and Deflector Replacement - Side

Radiator Air Baffle and Deflector Replacement - Side (2.0L (LSJ))

Removal Procedure




1. Raise and support the vehicle.

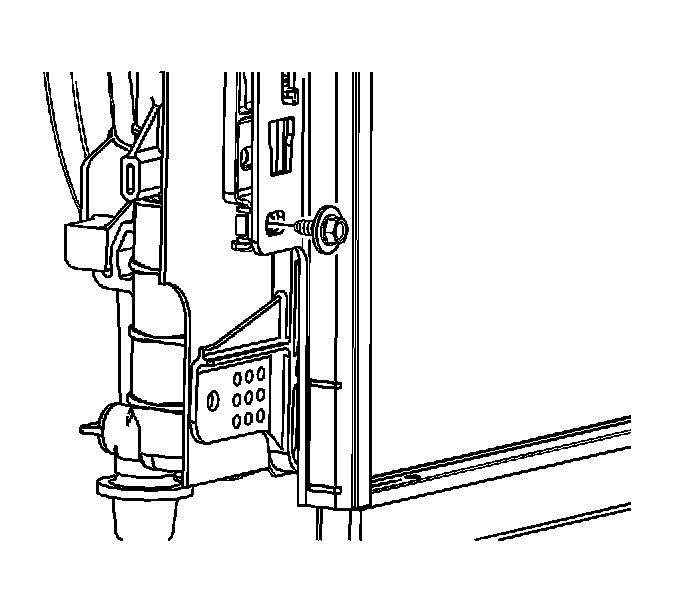

2. Remove the condenser bolts.




3. Remove the lower air dam.




4. Reposition the condenser to allow access to the charge air cooler.




5. Remove the bolts from the charge air cooler brackets.





Important: You are not required to discharge the A/C System.

6. Slide the condenser down to disengage the upper mounting tabs from the radiator. Position the condenser and the charge air cooler away from the radiator and the support.




7. Remove the right and left radiator side baffles.

Installation Procedure




1. Install the right and left radiator side baffles.




2. Install the charge air cooler.





Notice: Refer to Fastener Notice.

3. Install the bolts to the charge air cooler.

Tighten the bolts to 10 N.m (88 lb in).




4. Slide the condenser up to engage the upper mounting tabs into the radiator.




5. Install the condenser bolts.

Tighten the bolts to 10 N.m (88 lb in).




6. Install the air dam.
7. Lower the vehicle.
