Home >> Saturn >> 2007 >> ION L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Splices

Splices

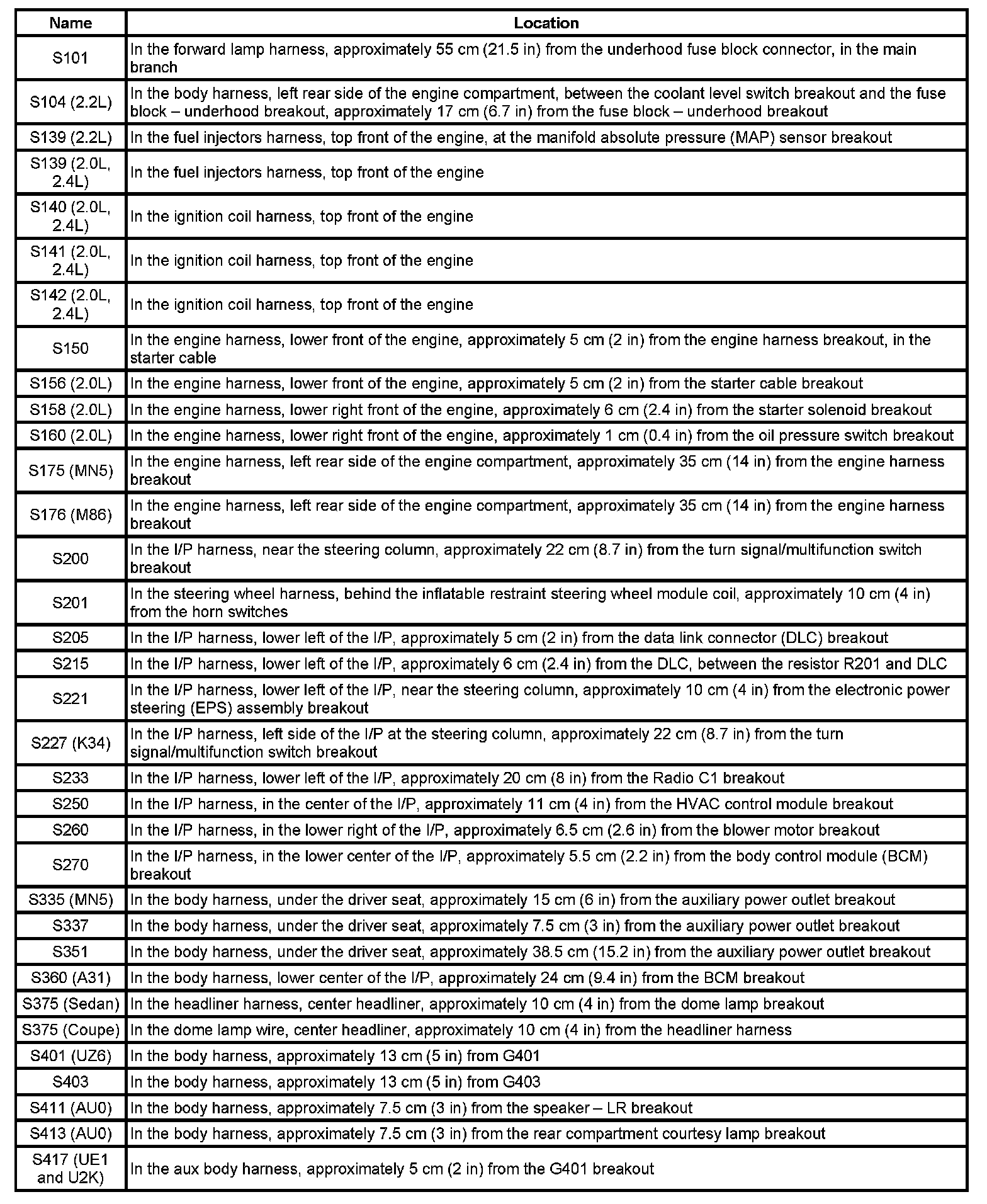

S101 - S417:



S417 - S990:
