Left Rear Side of the Vehicle

Harness Routing Views

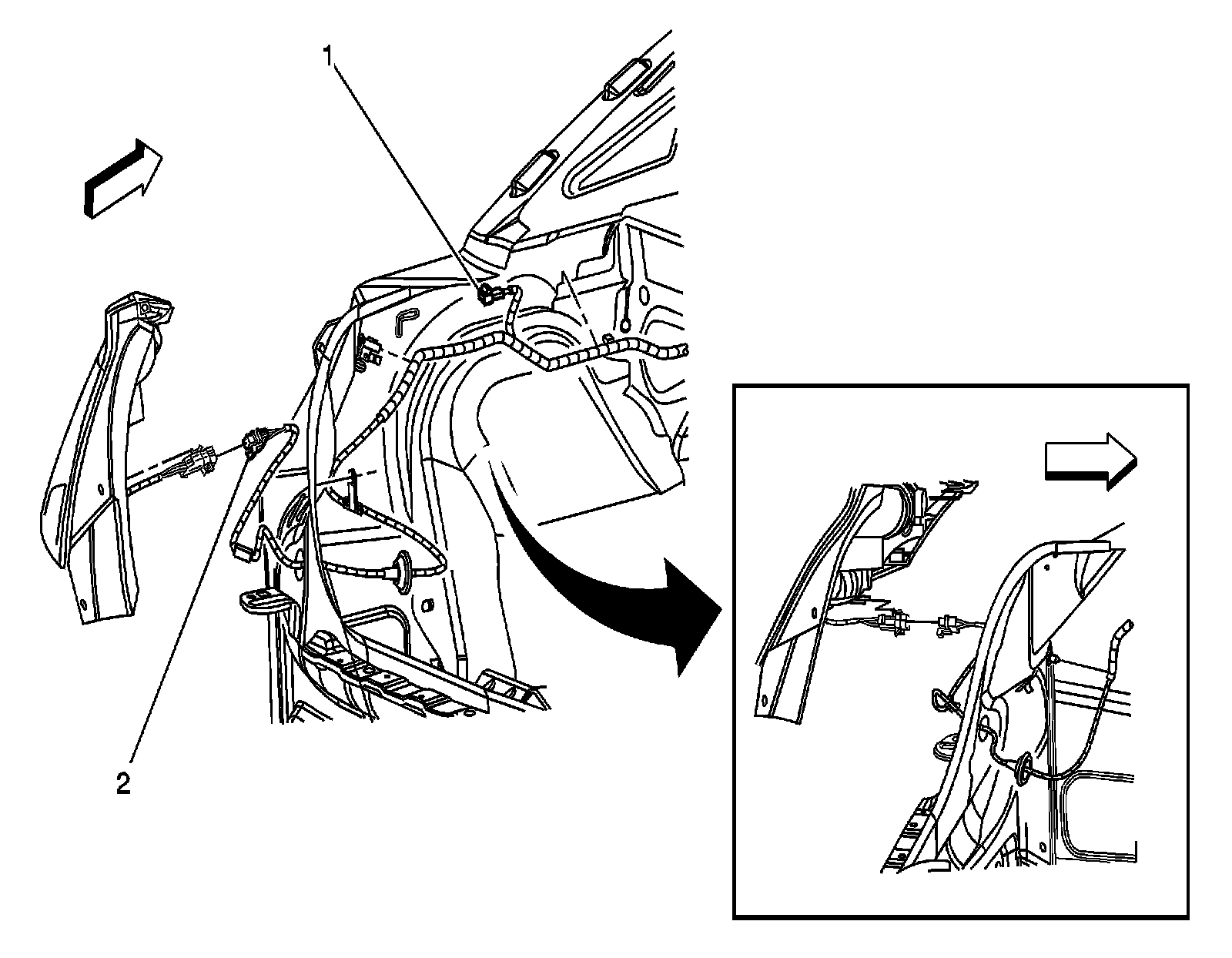

Left Rear Side of the Vehicle

1 - C401
2 - C491, C490 Similar on Right Side
