C406

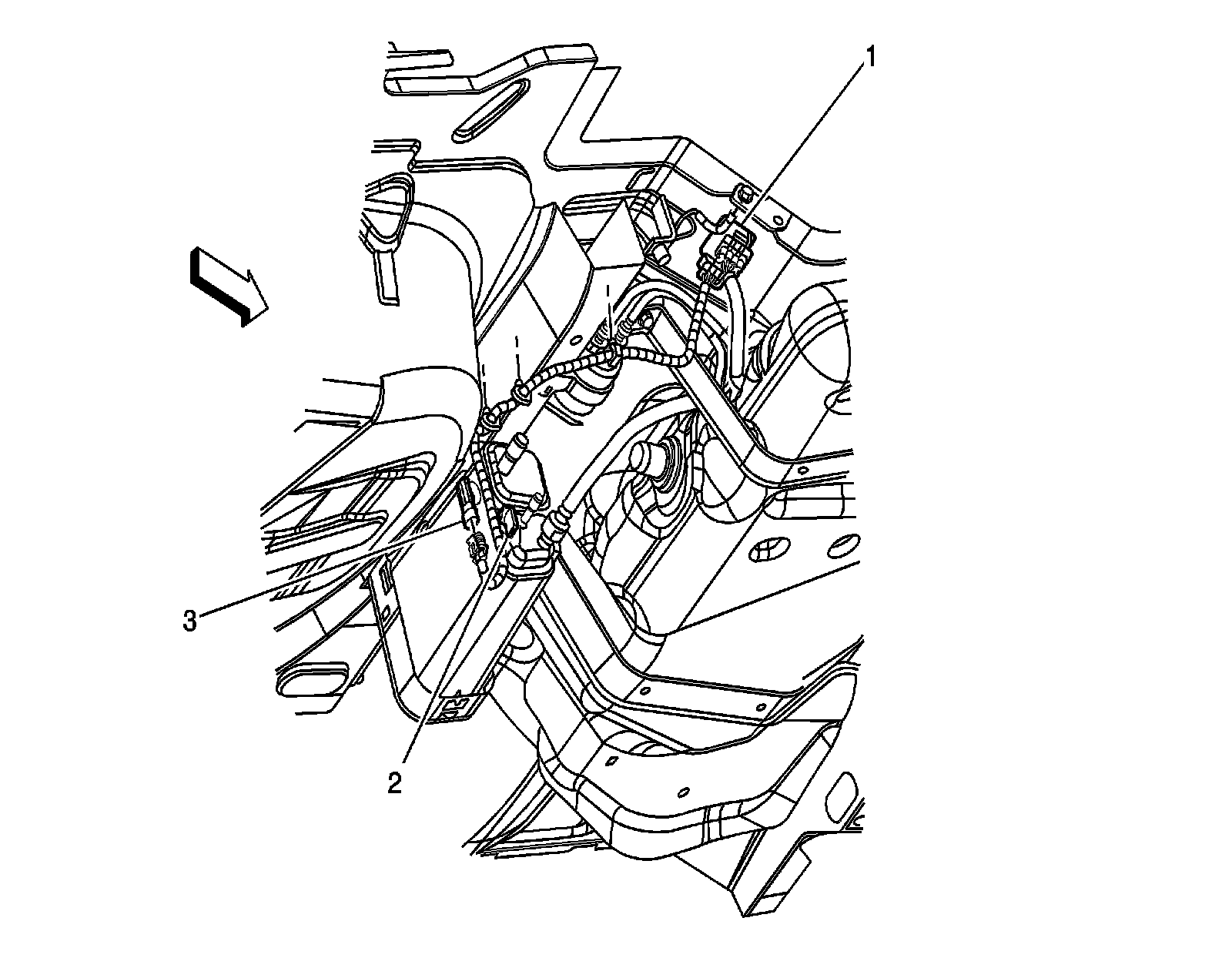

Engine Controls Component Views

Right Rear Side Under Vehicle




1 - C406
2 - Fuel Tank Pressure Sensor
3 - Evaporative Emission (EVAP) Canister Vent Solenoid
