C401

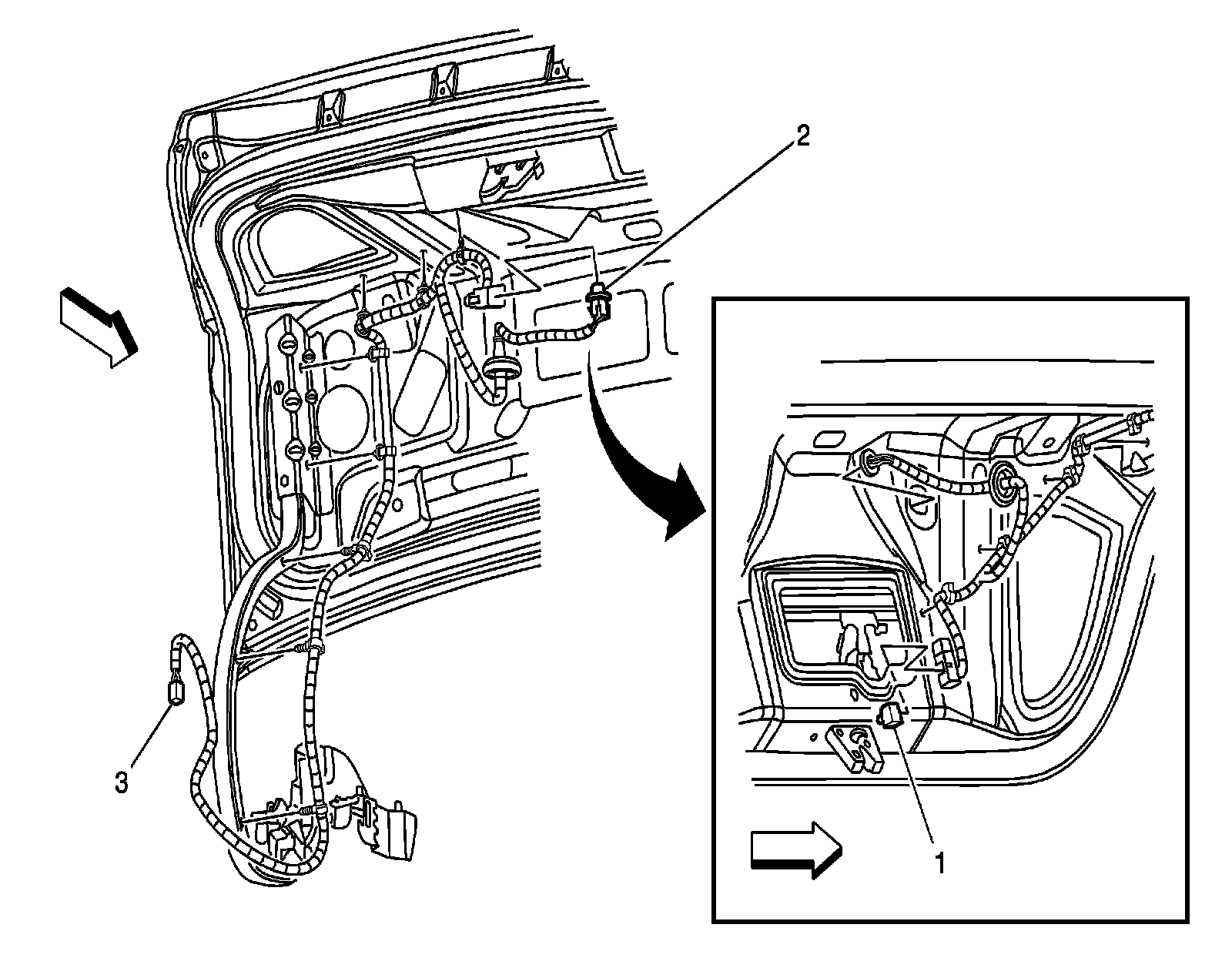

Vehicle Access Component Views

Vehicle Rear Gate




1 - Rear Component Lid Latch
2 - License Lamp
3 - C401
