Saturn
>>
2007
>>
ION L4-2.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>
Wheel Speed Sensor (WSS) - LR (JM4/JL9)
Wheel Speed Sensor (WSS) - LR (JM4/JL9)
Wheel Speed Sensor
(WSS) - LR (JM4/JL9)

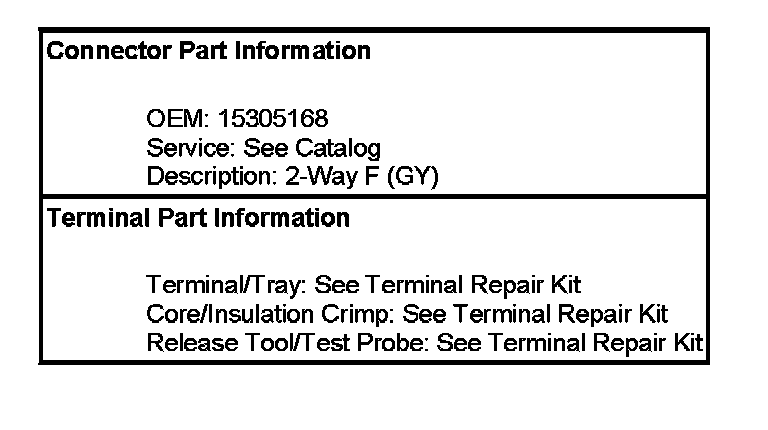

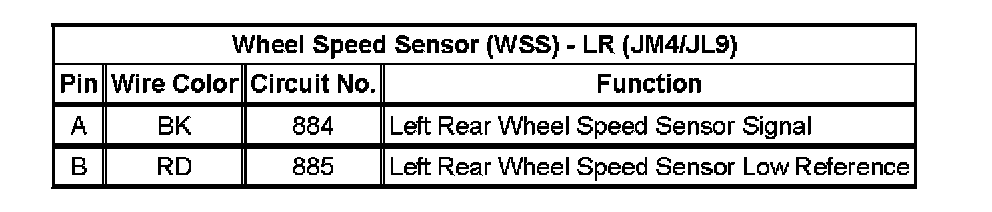

Wheel Speed Sensor (WSS) - LR (JM4/JL9):
