Home >> Saturn >> 2007 >> ION L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Switch

Traction Control Switch

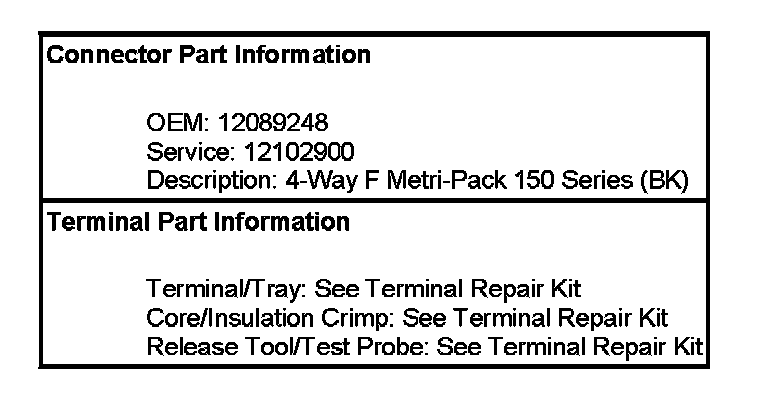

Traction Control Switch (JM4/JL9 w/NW7)

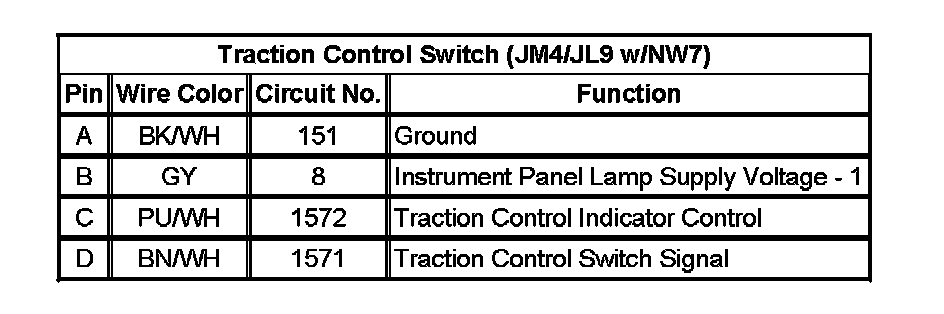

Traction Control Switch (JM4/JL9 w/NW7):
