Home >> Saturn >> 2007 >> ION L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering >> Steering Control Module

Steering Control Module



Power Steering Connector End Views

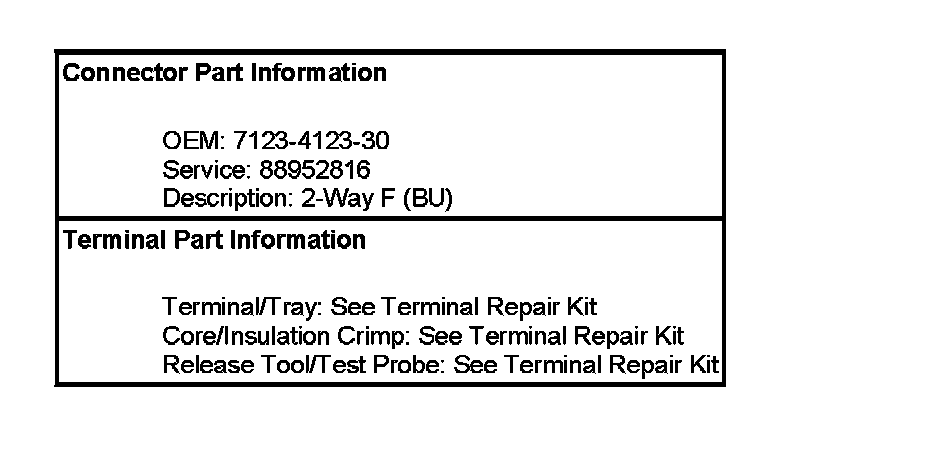

Power Steering Control Module (PSCM) C1:

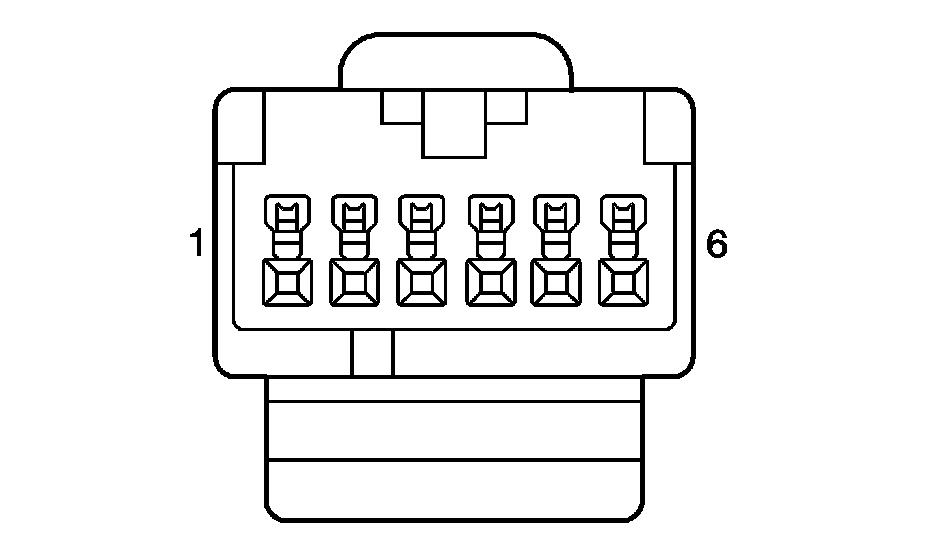

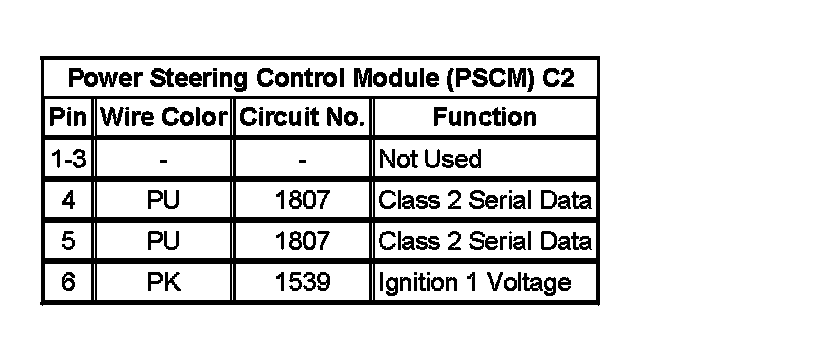

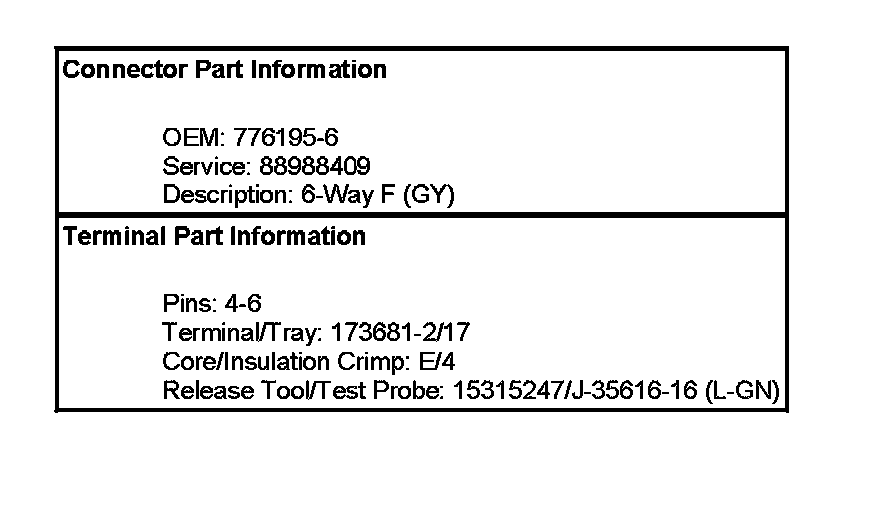

Power Steering Control Module (PSCM) C2:

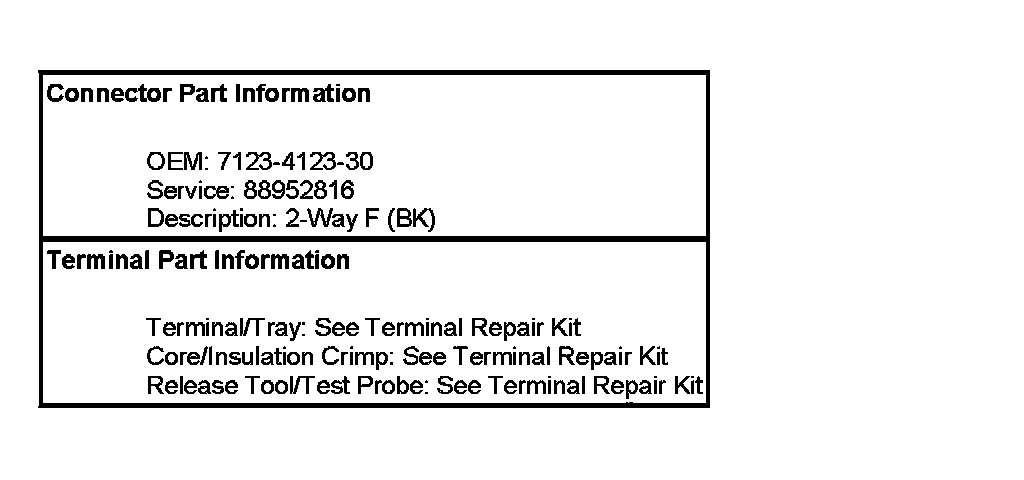

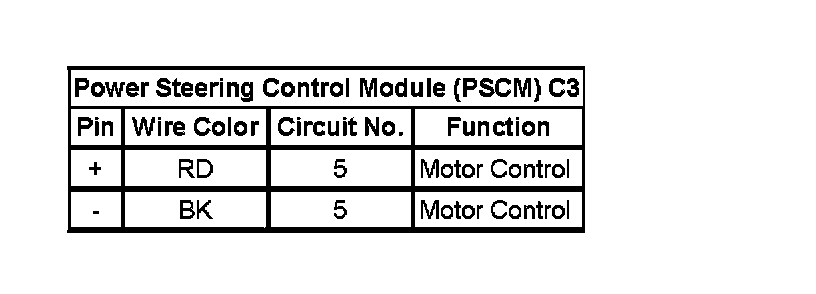

Power Steering Control Module (PSCM) C3:
