C800 - C899

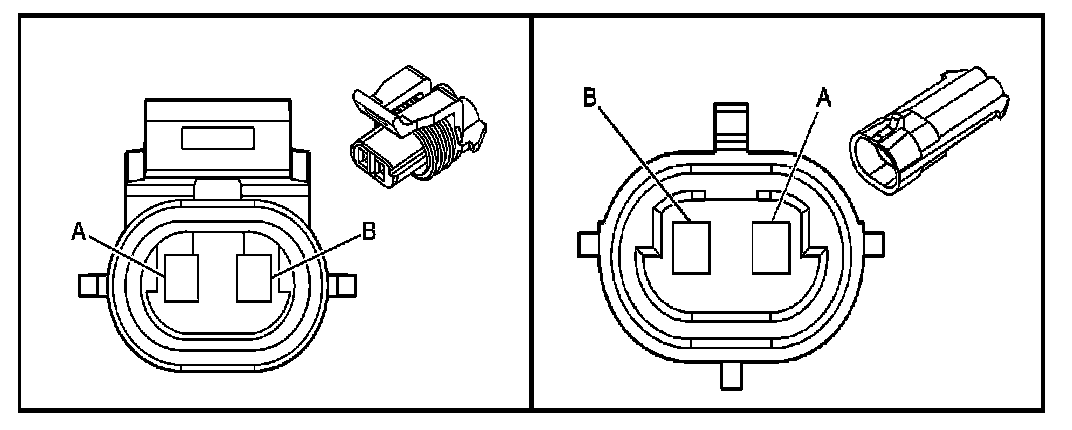

Inline Harness Connector End Views

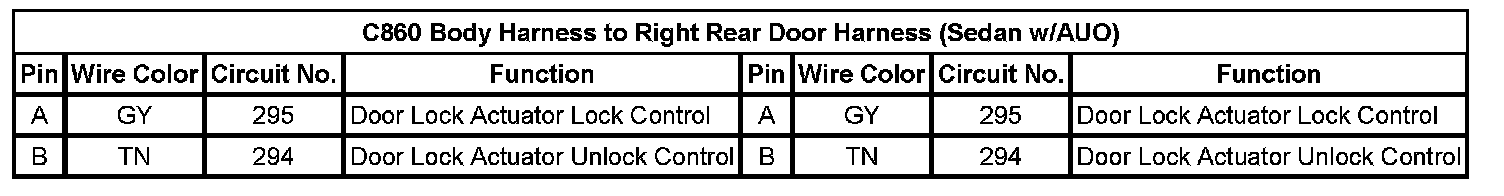

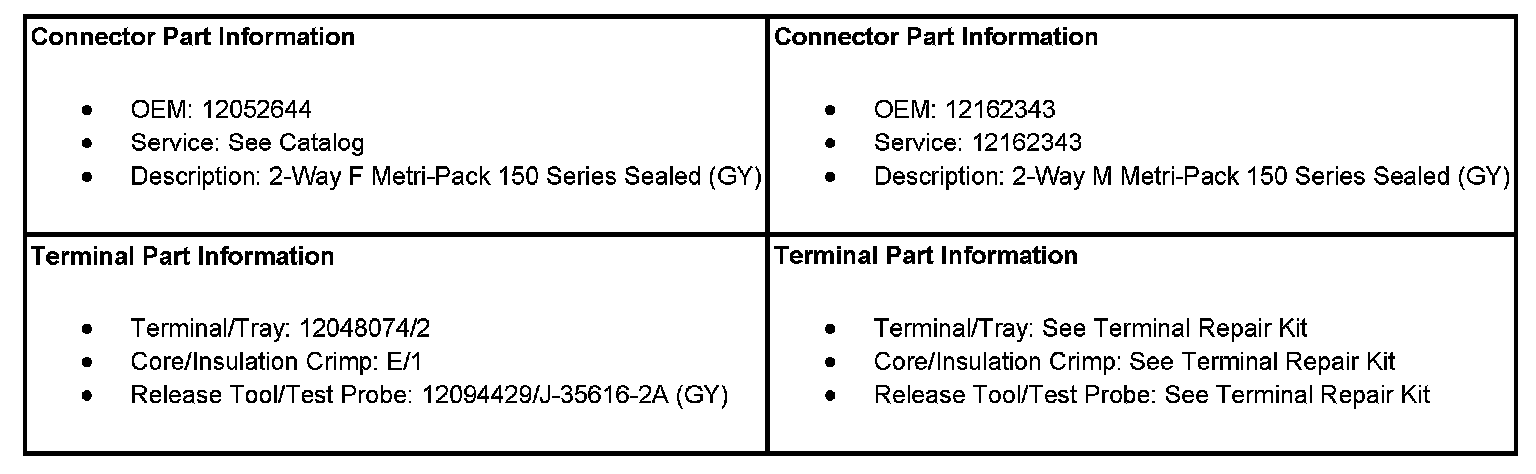

C860 Body Harness to Right Rear Door Harness (Sedan w/AUO)
