C218

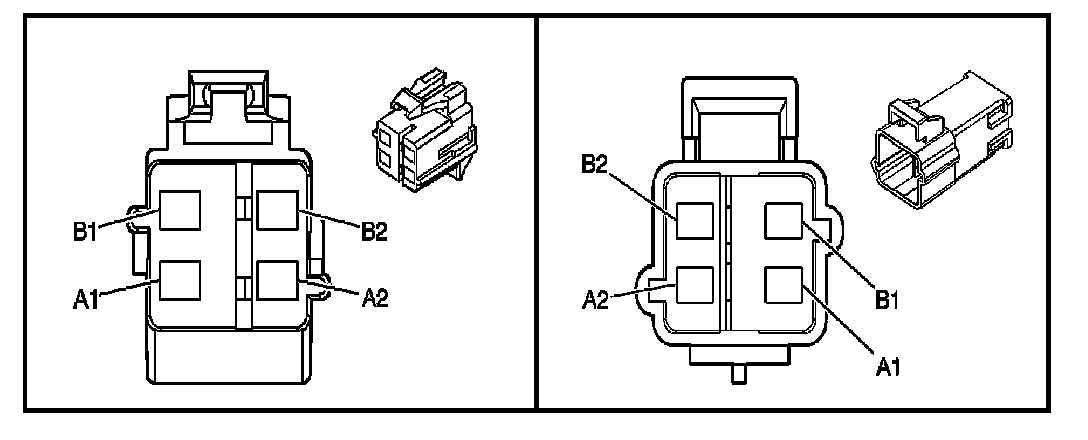

Inline Harness Connector End Views

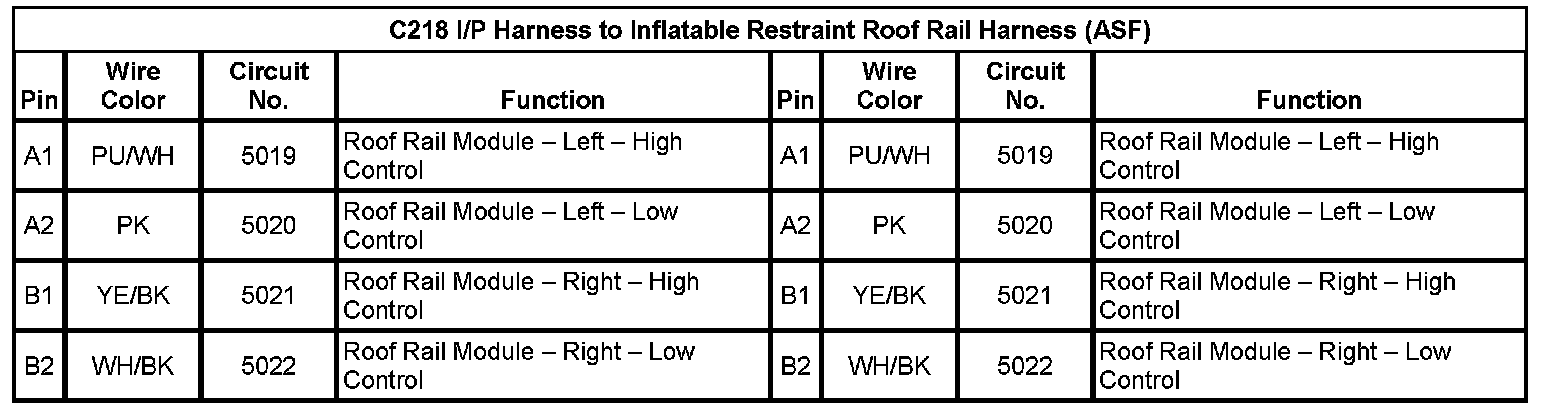

C218 I/P Harness to Inflatable Restraint Roof Rail Harness (ASF)
