Auxiliary Power Outlet

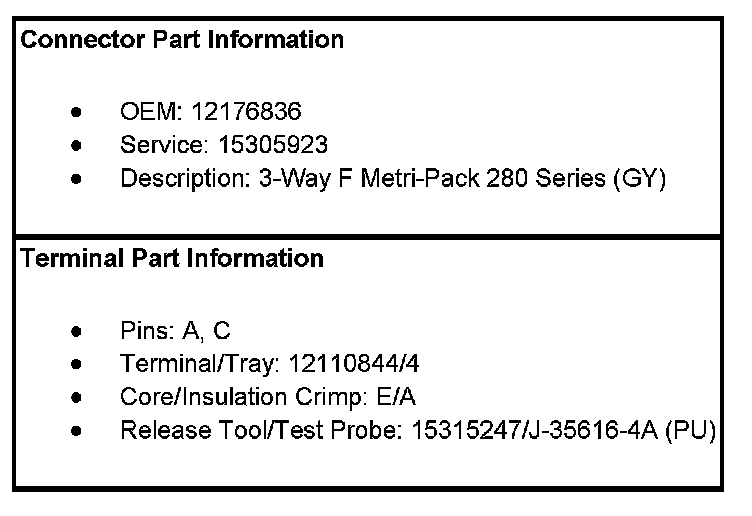

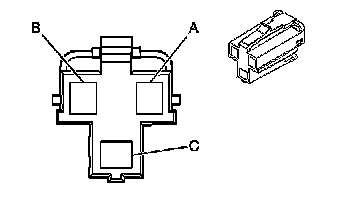

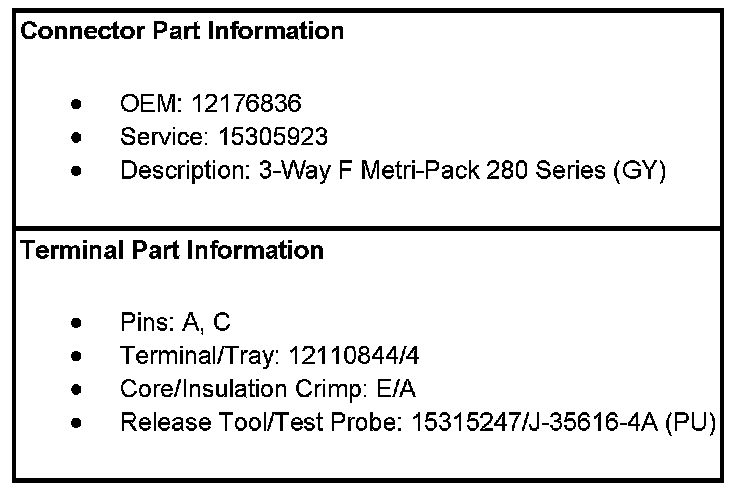

Power Outlet Connector End Views

Auxiliary Power Outlet - Front

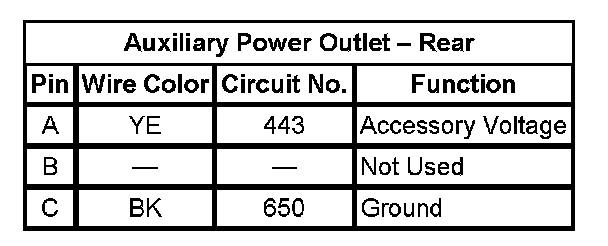

Auxiliary Power Outlet - Rear
