Home
>>
Saturn
>>
2007
>>
ION L4-2.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Switch
Power Mirror Switch

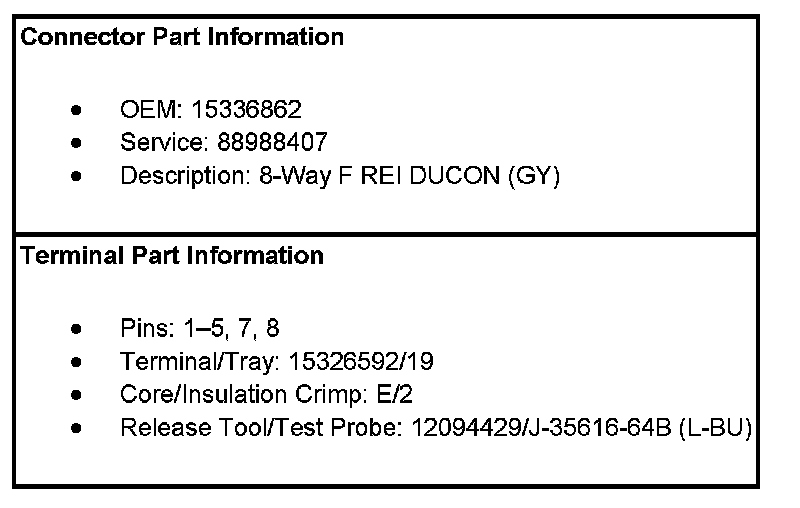

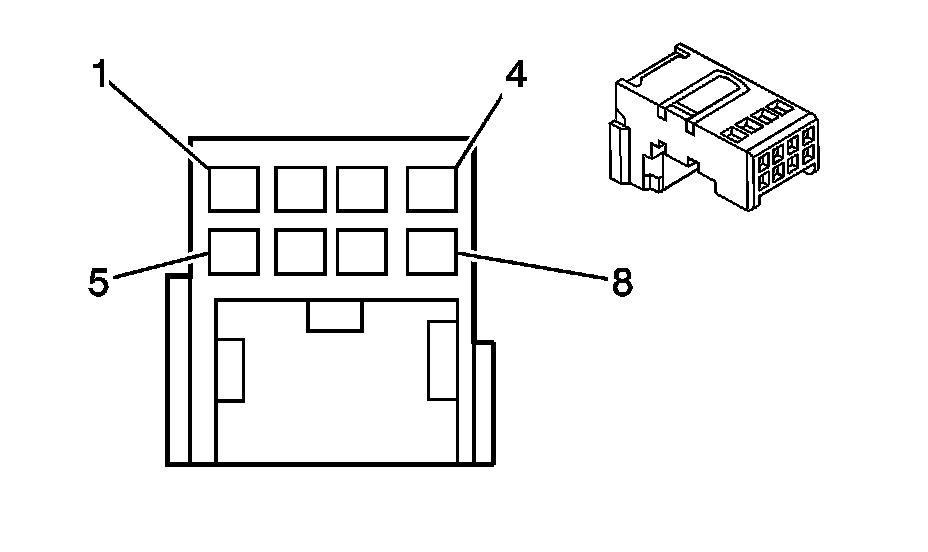

Mirror Connector End Views

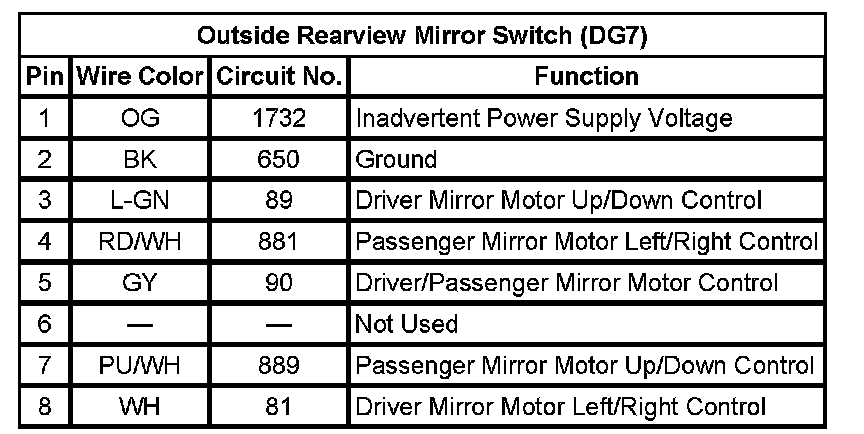

Outside Rearview Mirror Switch (DG7)
