Transmission Shift Position Indicator Lamp

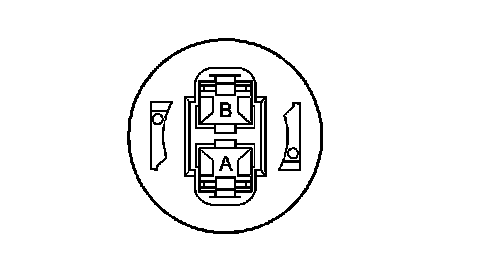

Lighting Systems Connector End Views

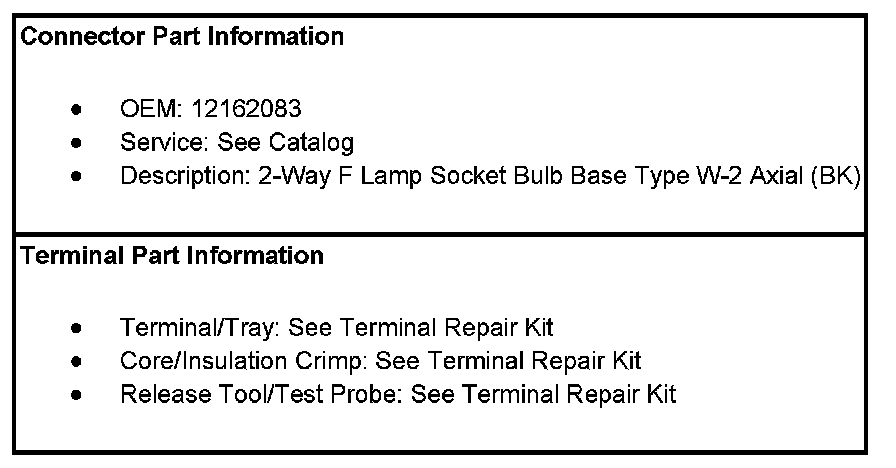

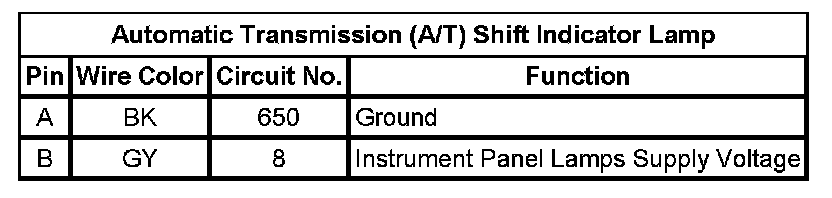

Automatic Transmission (A/T) Shift Indicator Lamp
