Front Door Latch

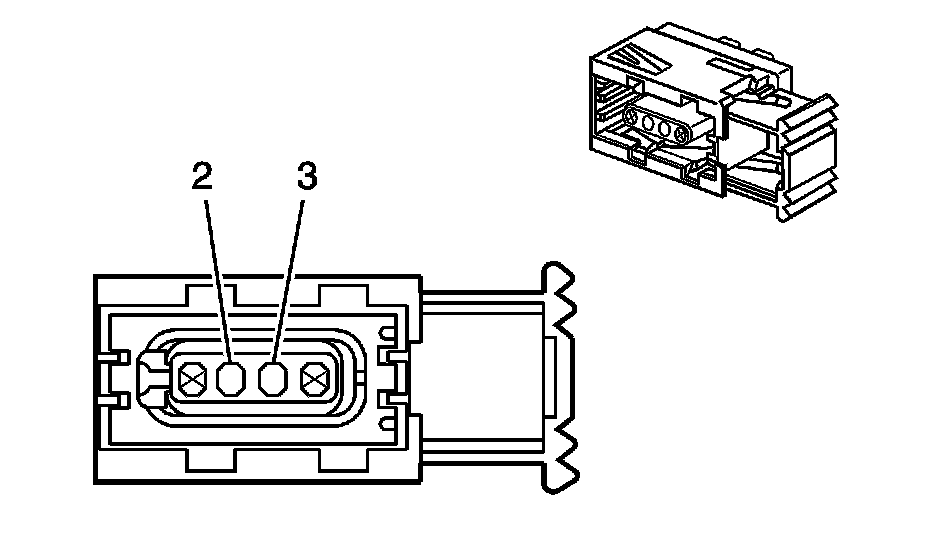

Vehicle Access Connector End Views

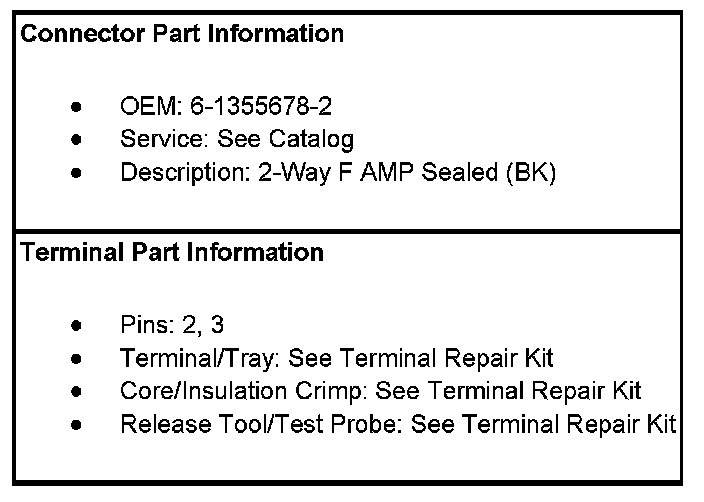

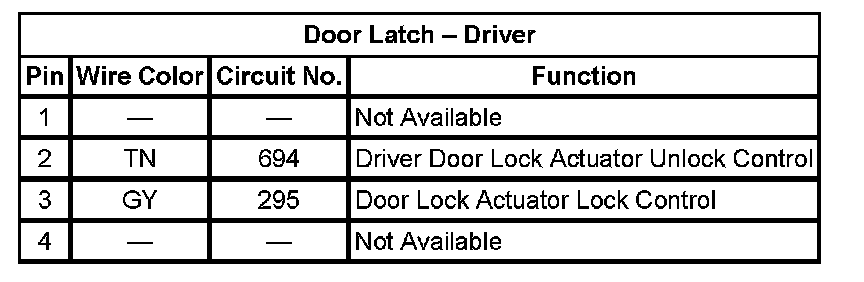

Door Latch - Driver

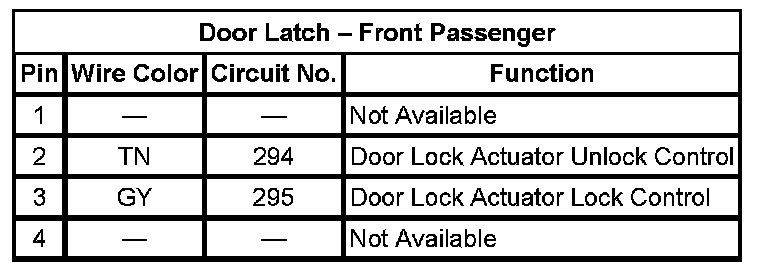

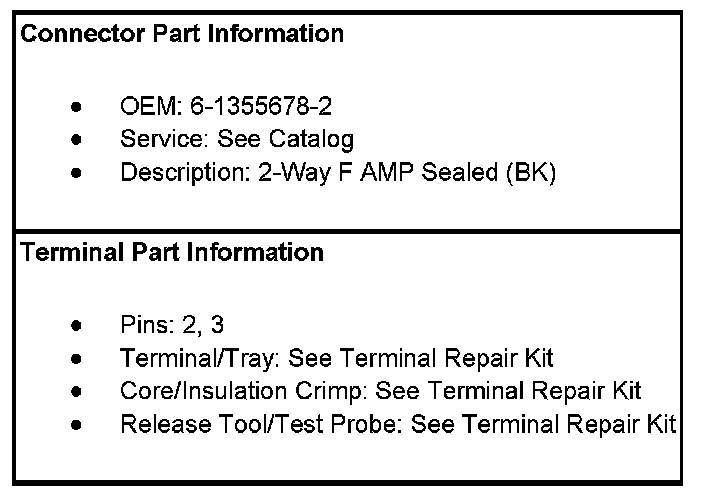

Door Latch - Front Passenger

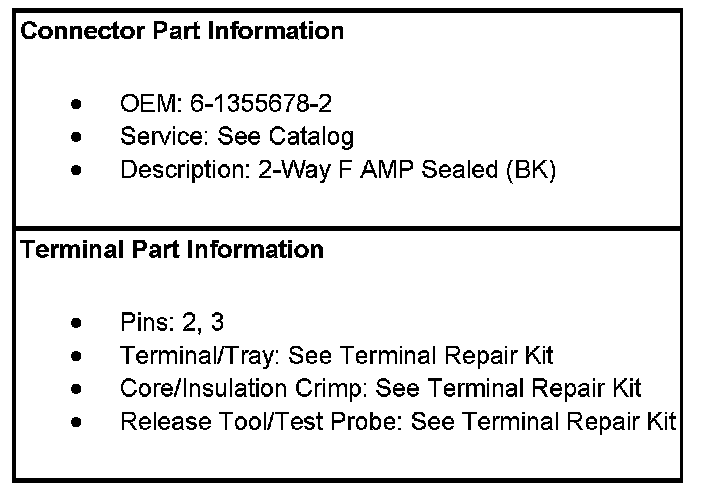

Door Latch - LR (Sedan)














Door Latch - RR (Sedan)
