Home >> Saturn >> 2007 >> ION L4-2.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp >> Fog/Driving Lamp Switch

Fog/Driving Lamp Switch



Lighting Systems Connector End Views

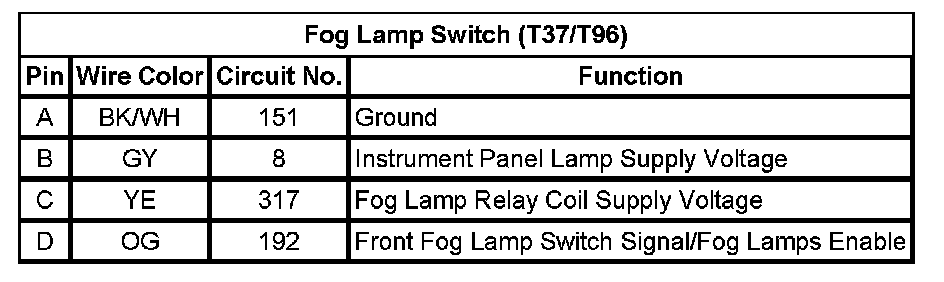

Fog Lamp Switch (T37/T96)
